Detroit fault code 3216 FMI 3 GHG14 is the TruckFaultCodes.com diagnostic sheet for the SCR Inlet NOx Sensor Circuit Failed High condition on Detroit DD-series engines. This 1 page reference lists the fault identification, monitored conditions where shown, and the step-by-step troubleshooting the technician follows in the shop.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication no. | Not printed; TruckFaultCodes.com reference |
| Year / Revision | 2017 |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (SPN 3216 / FMI 3)
- Description and monitored parameters
- Enabling conditions and dash lamps
- Troubleshooting steps
- Sensor replacement reference
3216 FMI 3 GHG14 troubleshooting steps
The sheet monitors SCR Inlet NOx Sensor. Typical duration is 2 seconds, the dash lamps are MIL and CEL, and the engine reaction is none.

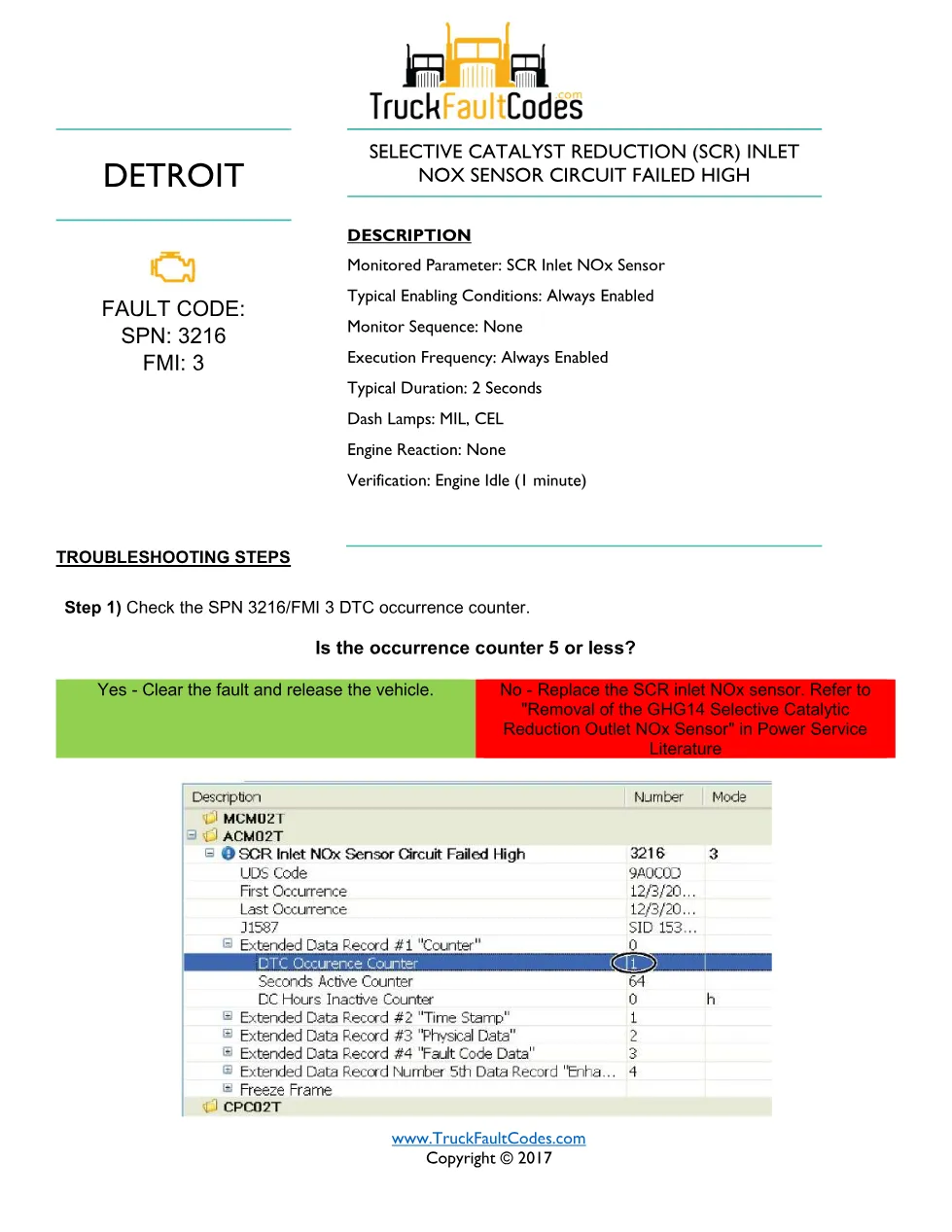

The single-page procedure begins by checking the DTC occurrence counter. If the counter reads five or less, the technician clears the fault and releases the vehicle; if it is higher, the SCR inlet NOx sensor is replaced following the GHG14 outlet NOx sensor removal procedure in Power Service Literature. Verification is a one-minute engine idle.
Applicable truck models
This sheet applies to Detroit DD-series diesel engines (the DD13, DD15 and DD16 family) built under the EPA 2007-Current emissions platform, in its GHG14 calibration. Engine and emissions specifications should always be confirmed against the vehicle build; full engine information is published on the Detroit Diesel official site.
Who needs this 3216 FMI 3 GHG14 manual
Detroit technicians and workshops diagnosing an aftertreatment inlet NOx sensor circuit fault on DD-series engines will use this sheet to decide between clearing the code and replacing the sensor. It is a quick bench reference rather than a full workshop manual, so the named removal steps still route back to Power Service Literature and, where escalation is needed, to the Detroit Customer Support Center.
