The SPN 97 FMI 3 document is a Detroit DD Series diagnostic trouble code guide covering the water-in-fuel (WIF) circuit failed high condition and its step-by-step troubleshooting. This 4-page PDF is compiled from the TruckFaultCodes.com Detroit fault codes reference (© 2017) for the DD Series (EPA 2007-Current) / DTCs set. It is written for workshop diagnostics rather than general reading.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current); Detroit Series 60 (DDEC VI – EPA 2007) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Diagnostic trouble code | SPN 97/FMI 3 — Water-In-Fuel Circuit Failed High |
| Publication no. | Not stated (TruckFaultCodes.com DTC reference) |
| Year / Revision | © 2017 |
| Pages | 4 |
| File size | 0.2 MB |
| Format | |
| Language | English |
SPN 97 FMI 3 document sections

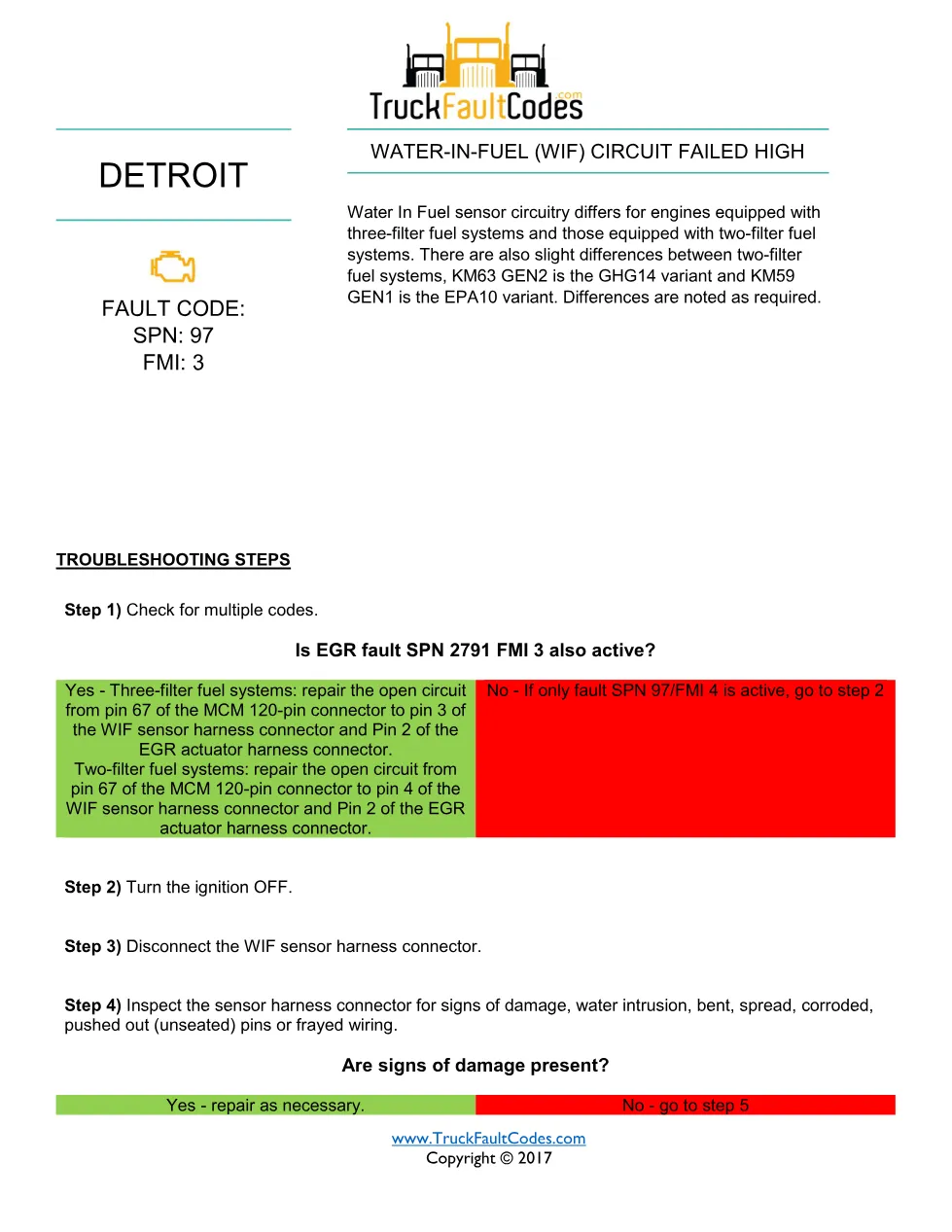

- Fault code identification: SPN 97/FMI 3 — WIF circuit failed high
- Checking for multiple codes (EGR fault SPN 2791/FMI 3)
- Open-circuit repair from MCM 120-pin connector pin 67 to the WIF sensor
- WIF harness connector inspection for damage and water intrusion

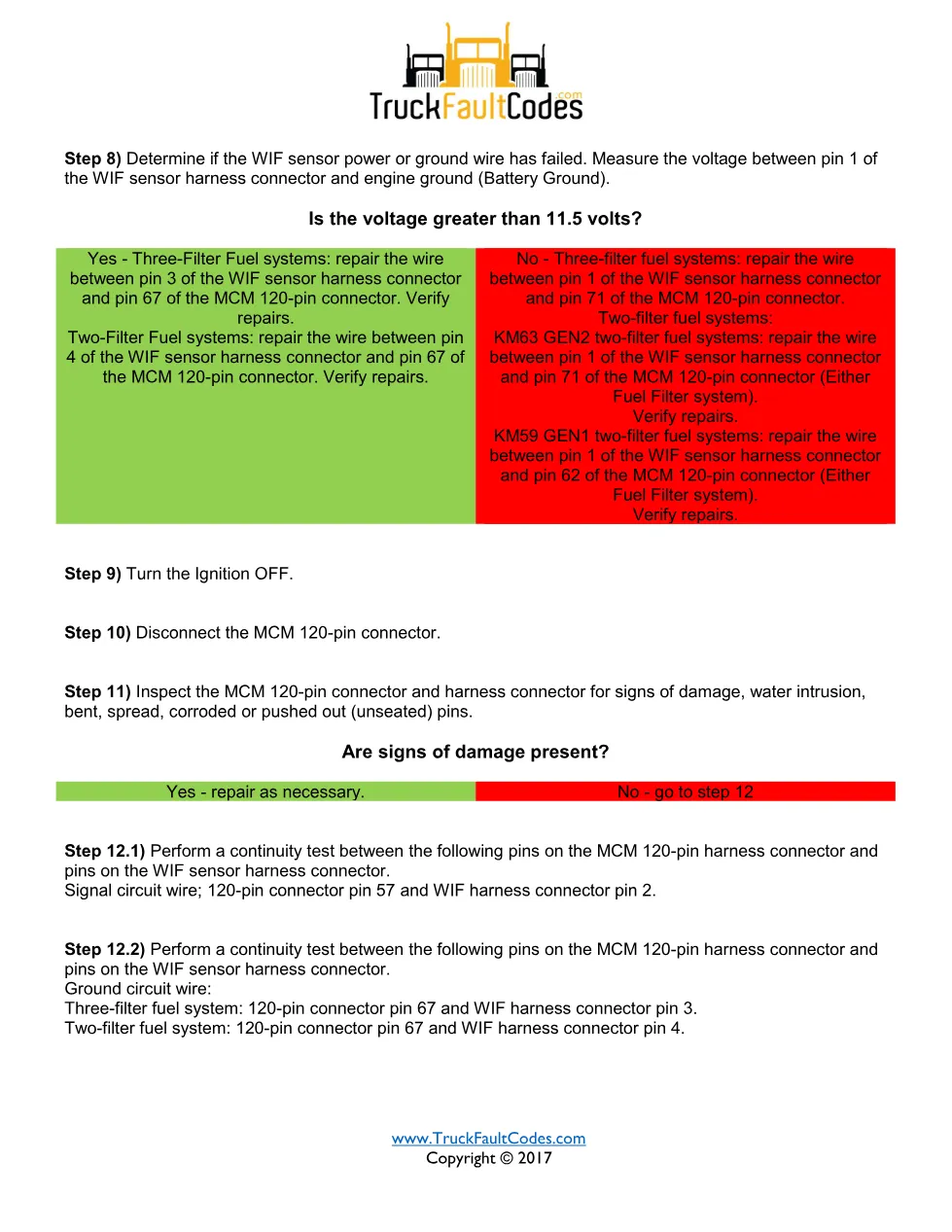

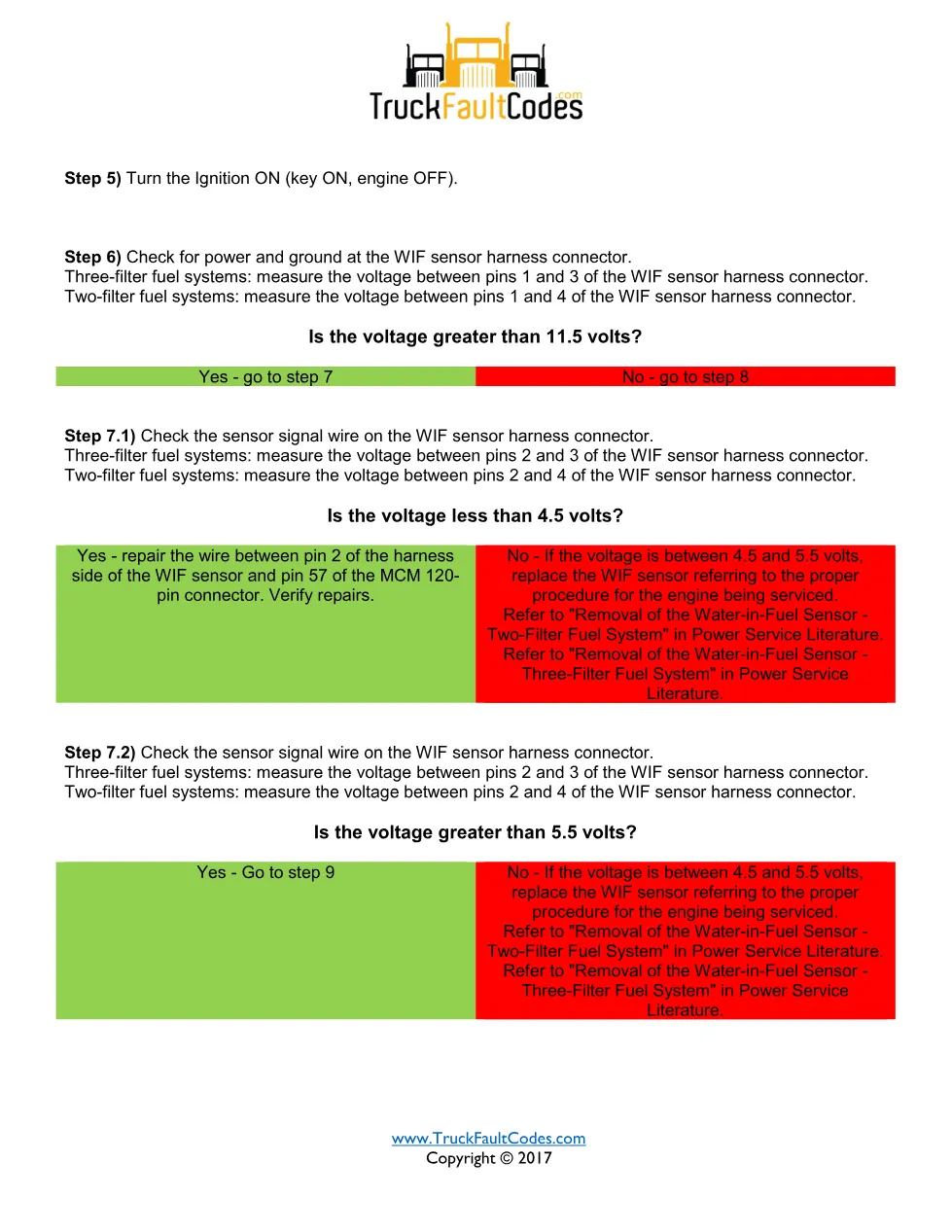

- Power and ground checks at the WIF sensor harness connector
Applicable truck models covered
The SPN 97 FMI 3 fault applies to the models below. This procedure covers Detroit DD Series (EPA 2007-Current); Detroit Series 60 (DDEC VI – EPA 2007) engines equipped with the Motor Control Module. The steps reference the systems named in the extract only — water-in-fuel sensor components, harness connectors and, where present, the MCM 120-pin connector. Confirm engine and emissions configuration against the vehicle build before ordering parts; verify current procedures on the Detroit Diesel official site.
Who needs this 97 FMI 3 manual
This reference suits fuel-system technicians and workshop owners servicing water-in-fuel warnings and WIF sensor circuits on Detroit engines. Every troubleshooting step and decision branch from the original PDF is preserved so the on-vehicle diagnosis can be followed in sequence. Use it alongside a Detroit-compatible scan tool such as DDDL or DDRS.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
