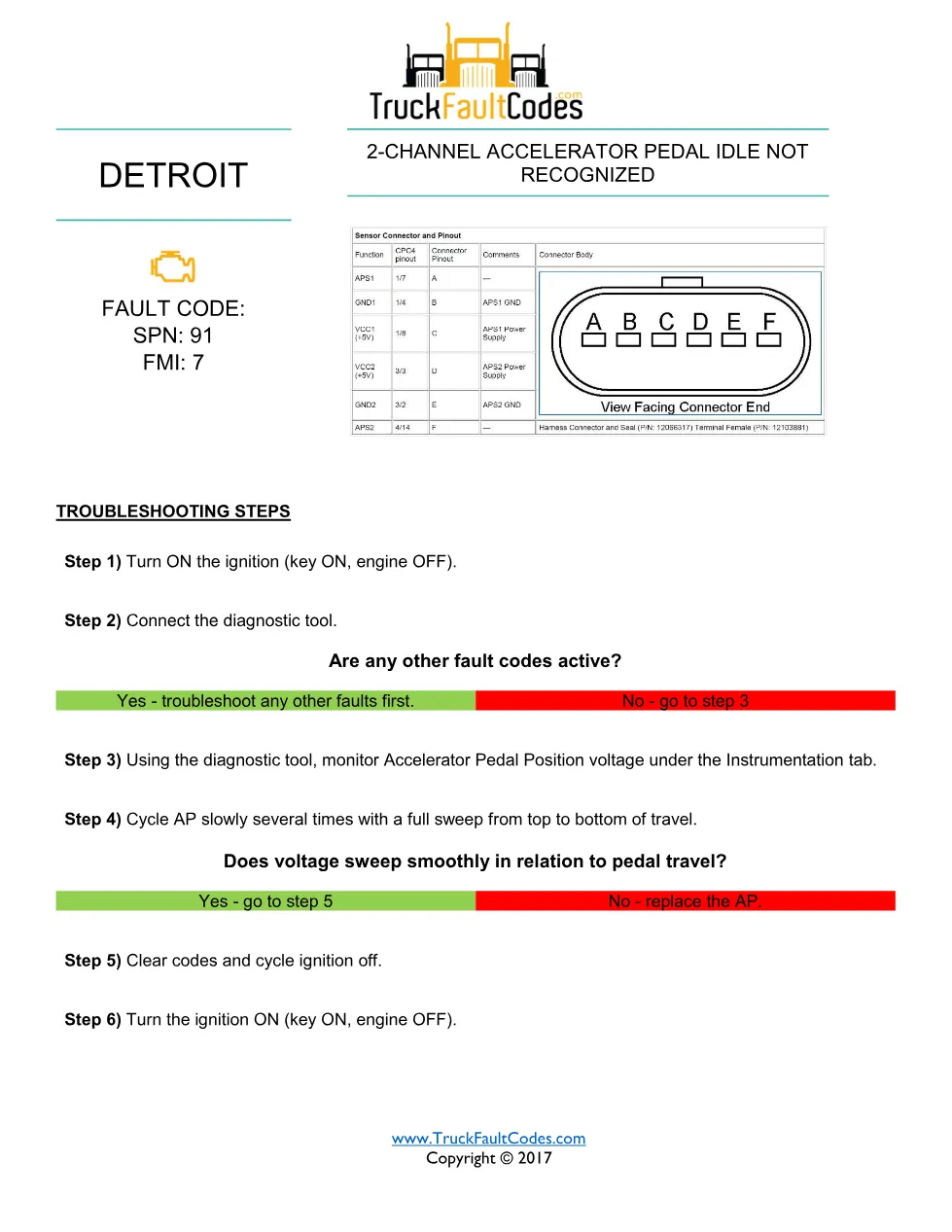

SPN 91 FMI 7 is the Detroit fault code for a 2-channel accelerator pedal idle not recognized on the DD Series accelerator pedal circuit. This 2-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 91 |
| Failure Mode Identifier | 7 |
| Description | 2-Channel Accelerator Pedal Idle Not Recognized |
| Coverage / Revision | GHG14 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and description
- Monitoring Accelerator Pedal Position voltage
- Full-sweep pedal travel test
- Harness wiggle and vibration test
- Clearing codes and verifying the repair
SPN 91 FMI 7 diagnostic overview

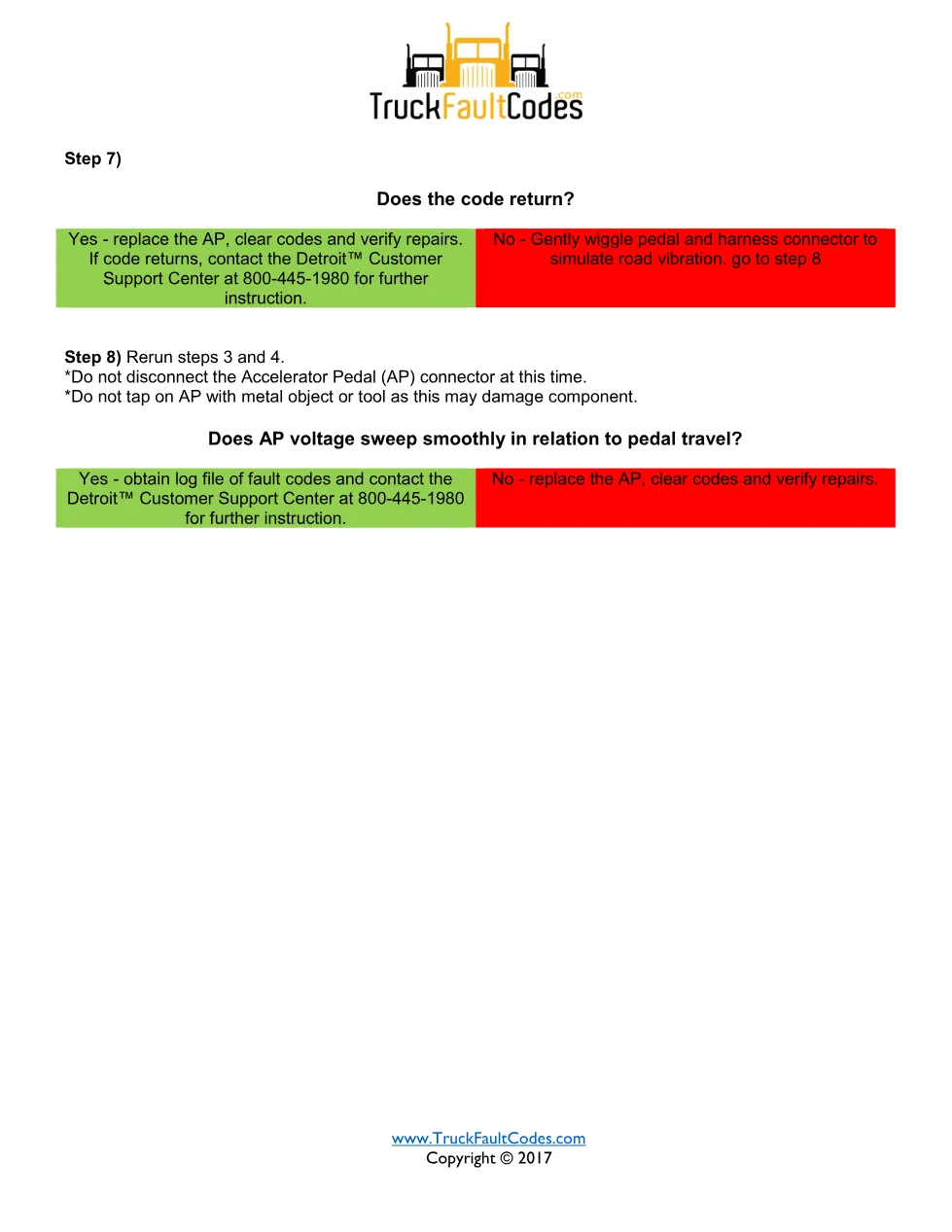

SPN 91 FMI 7 is set when the two-channel accelerator pedal idle position is not recognized. The technician monitors Accelerator Pedal Position voltage, cycles the pedal through a full sweep, and wiggles the pedal and harness to simulate vibration before deciding to replace the pedal. Where the fault will not clear, the guide directs the technician to obtain a log file and contact the Detroit™ Customer Support Center at 800-445-1980. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the library also carries the matching guide for the Series 60 (DDEC VI) platform. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this 91 FMI 7 manual
This document is for Detroit DD Series technicians chasing an idle-recognition complaint, giving a clear pass/fail sweep test to confirm the pedal.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
