This SPN 84 FMI 4 reference documents the Detroit DD Series diagnostic for a Vehicle Speed Sensor (VSS) circuit that has failed low on the EPA07 GHG14 platform. It is part of the DiagTechPro truck manuals library and preserves the original TruckFaultCodes.com Detroit fault-code library (Copyright 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 84 / FMI 4 |
| Source | TruckFaultCodes.com Detroit fault-code library (Copyright 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (SPN 84, FMI 4)
- VSS and CPC #3 circuit description
- Resistance troubleshooting steps
- Short repair and VSS replacement
Diagnostic steps in the SPN 84 FMI 4 document

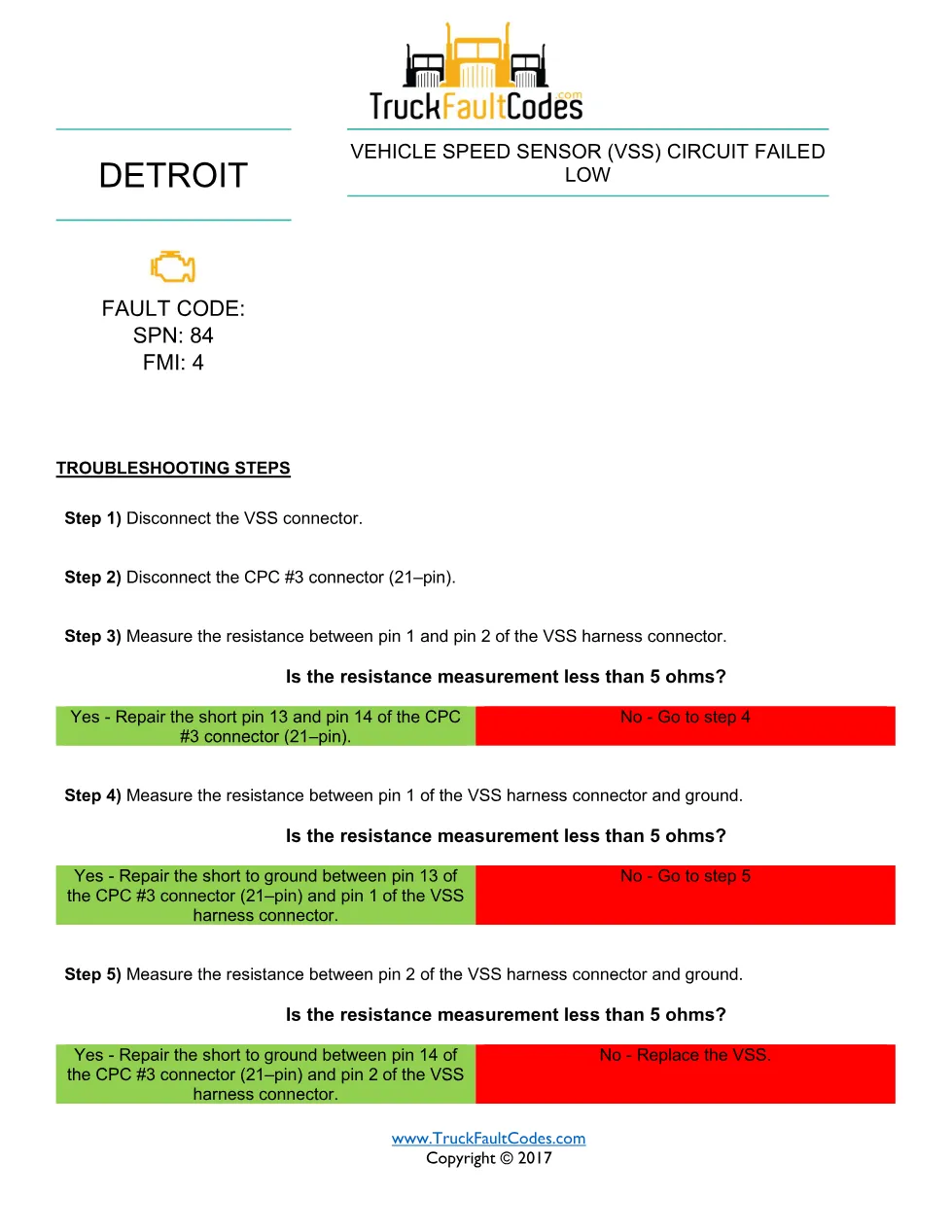

The procedure has the technician disconnect the VSS connector and the Common Powertrain Controller (CPC) #3 connector (21-pin), then measure resistance between pin 1 and pin 2 of the VSS harness connector. Further checks measure each pin to ground; a reading under 5 ohms points to a short at CPC #3 pins 13 and 14, otherwise the VSS is replaced.
The Vehicle Speed Sensor (VSS) circuit failed low condition on Detroit DD Series trucks is read and cleared with DiagnosticLink (formerly DDDL); the SPN and FMI pair identifies the exact circuit and failure mode. Confirm the code is active and capture freeze-frame data before running the pinpoint tests, then clear it and road-test the truck to verify the repair has held.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. For factory service data, parts and warranty information, consult Detroit’s official DD engine support.
Who needs the SPN 84 FMI 4 manual
This page is for heavy-duty technicians and workshop owners diagnosing a low VSS circuit reading on a Detroit DD Series truck who need the exact harness and CPC pin references.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
