SPN 84 FMI 11 is the Detroit fault code for a vehicle speed above programmable threshold 2 while driving on the DD Series wheel-based vehicle speed sensor circuit. This 1-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 84 |
| Failure Mode Identifier | 11 |
| Description | Vehicle Speed Above Programmable Threshold 2 While Driving |
| Coverage / Revision | EPA07 / GHG14 |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |

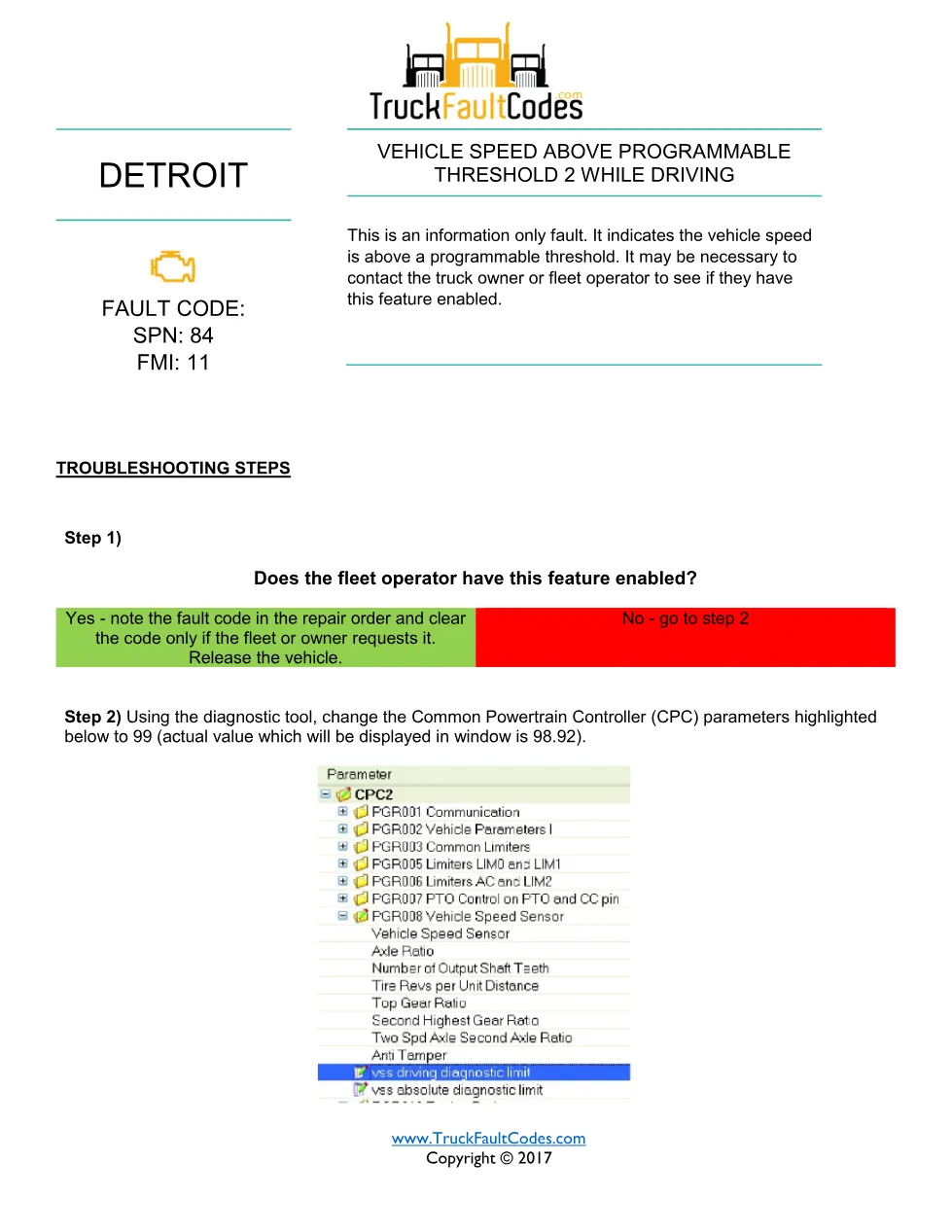

Document table of contents
- Fault code identification and description
- Confirming the programmable speed feature
- Adjusting CPC vehicle speed parameters
SPN 84 FMI 11 diagnostic overview
SPN 84 FMI 11 is an information-only fault indicating the vehicle speed rose above a programmable threshold while driving. The guide has the technician confirm with the fleet operator whether the feature is enabled, note the code on the repair order, and if not wanted, change the Common Powertrain Controller parameter to the value shown in the tool. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the same code is documented for the Series 60 (DDEC VI) platform. Vehicle speed can be hardwired to the Common Powertrain Controller or transmitted over J1939, so the guide points to the Application and Installation manual and OEM literature for chassis wiring. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this SPN 84 FMI 11 manual
This document is for Detroit DD Series technicians and fleet managers who need to understand a speed-threshold advisory before clearing it or adjusting the CPC parameter.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
