SPN 656 FMI 3 is the Detroit DD Series diagnostic fault code that identifies Injector cylinder #6 needle control valve abnormal operation (max). This DiagTechPro reference summarizes the official 7-pages Detroit diagnostic sheet so a technician can confirm the condition before opening the truck, and it links to the full downloadable PDF.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) diesel engines |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault condition | Injector cylinder #6 needle control valve abnormal operation (max) |
| Published source | TruckFaultCodes.com, Copyright © 2017 |
| Pages | 7 |
| File size | 0.7 MB |
| Format | |
| Language | English |
SPN 656 FMI 3 diagnostic overview

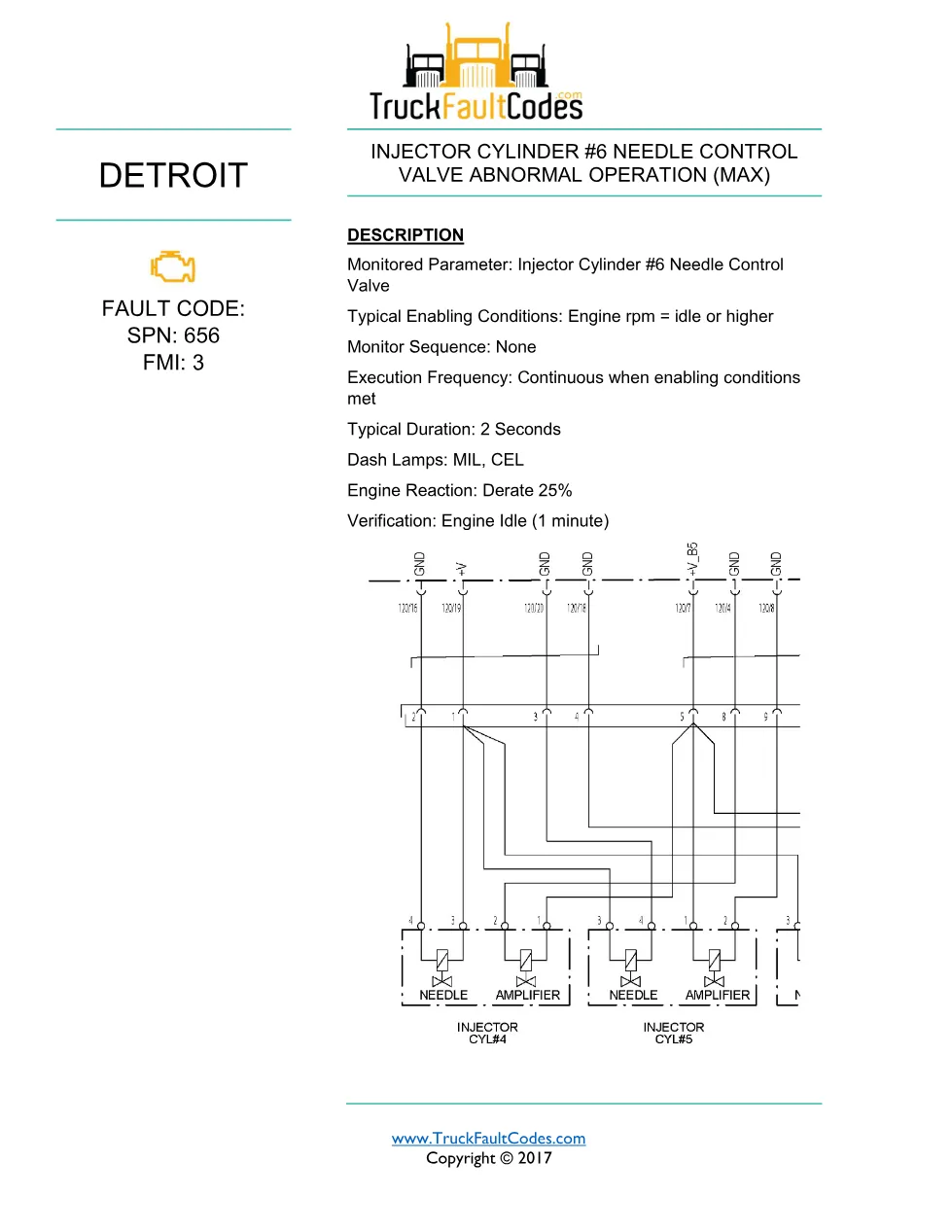

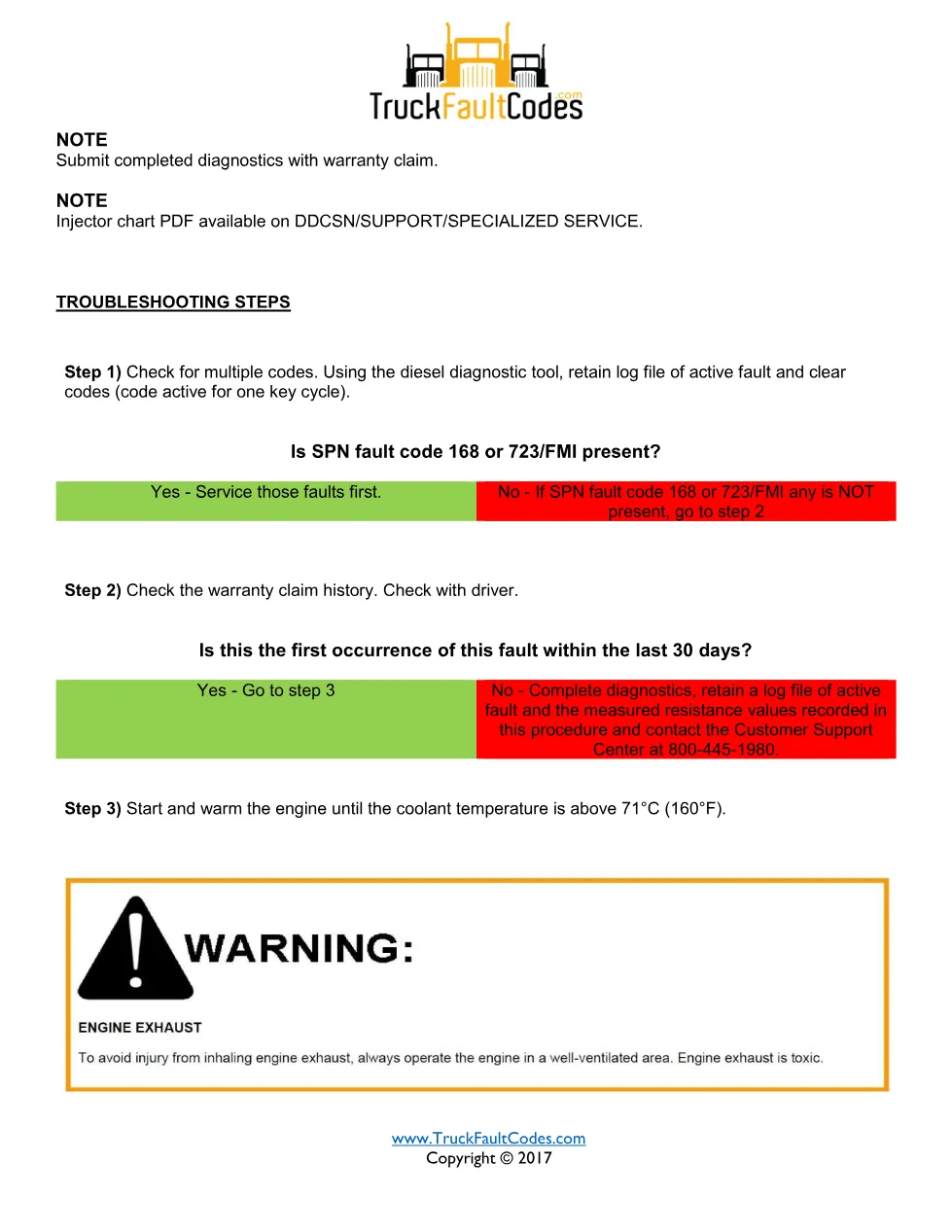

This Detroit EPA10/GHG14 sheet covers the injector cylinder #6 needle control valve abnormal operation (max), monitored continuously at idle and above, with MIL and CEL lamps and a 25% engine derate. The technician checks for related SPN 168 or 723 codes, reviews warranty history, warms the engine above 71°C (160°F), and inspects the rear fuel injector harness 14-pin connector. Resistance is measured on the two-piece fuel injector wiring harness and injector, then at the Motor Control Module (MCM) 120-pin connector, and a test MCM installed with extension harness J-49120 is road tested for 30 minutes.
Document table of contents
- Fault code description and enabling conditions
- Multiple-code and warranty checks

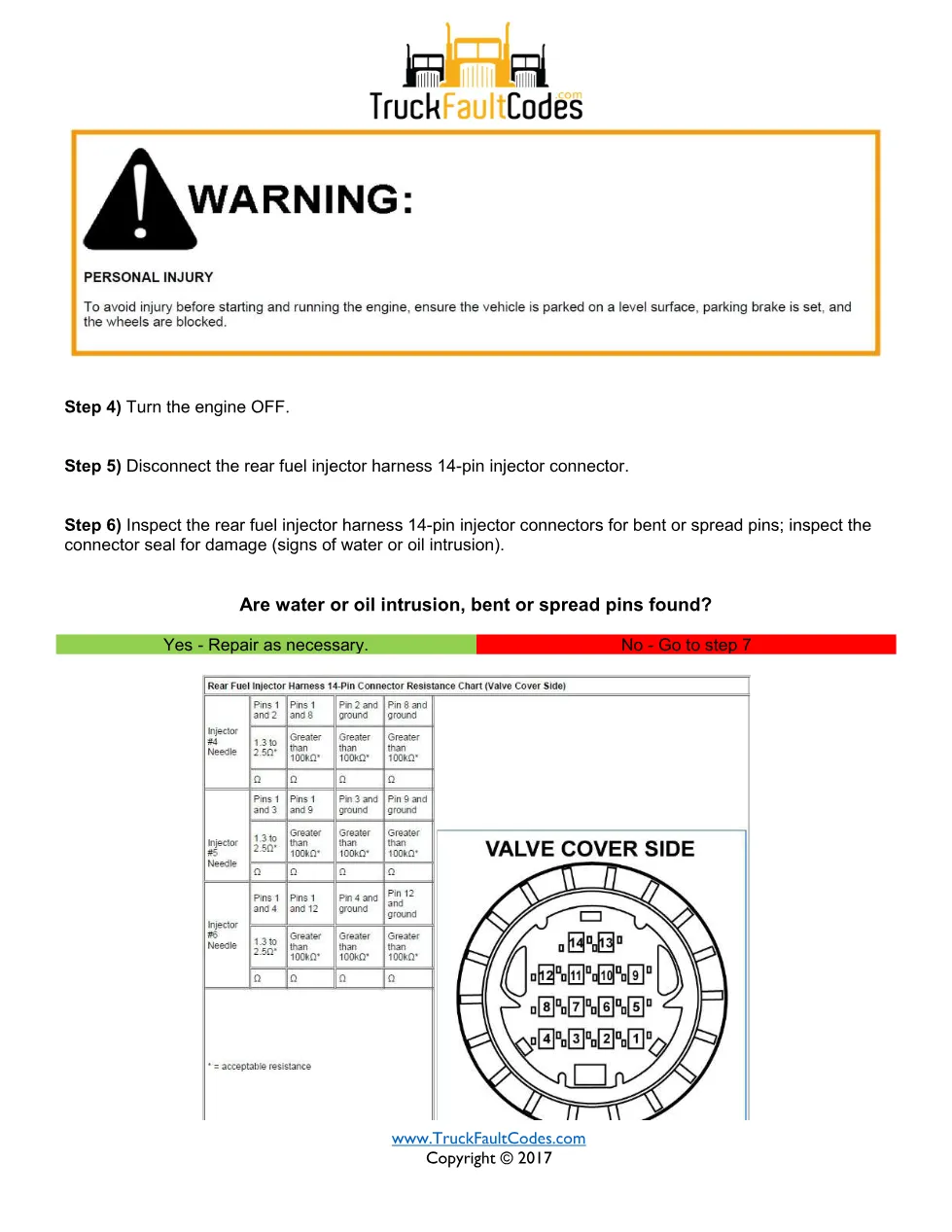

- Rear fuel injector harness 14-pin inspection
- Resistance measurements and test MCM
- Road test verification
Applicable truck models covered
This diagnostic applies to Detroit DD Series EPA10 and GHG14 diesel engines and is grouped under the Series 60 (DDEC VI – EPA 2007) DTCs. It covers cylinder #6 fuel injection on the two-piece two-filter and three-filter fuel systems. For the OEM wiring schematics referenced in this procedure, see the official Detroit engine manufacturer site.
