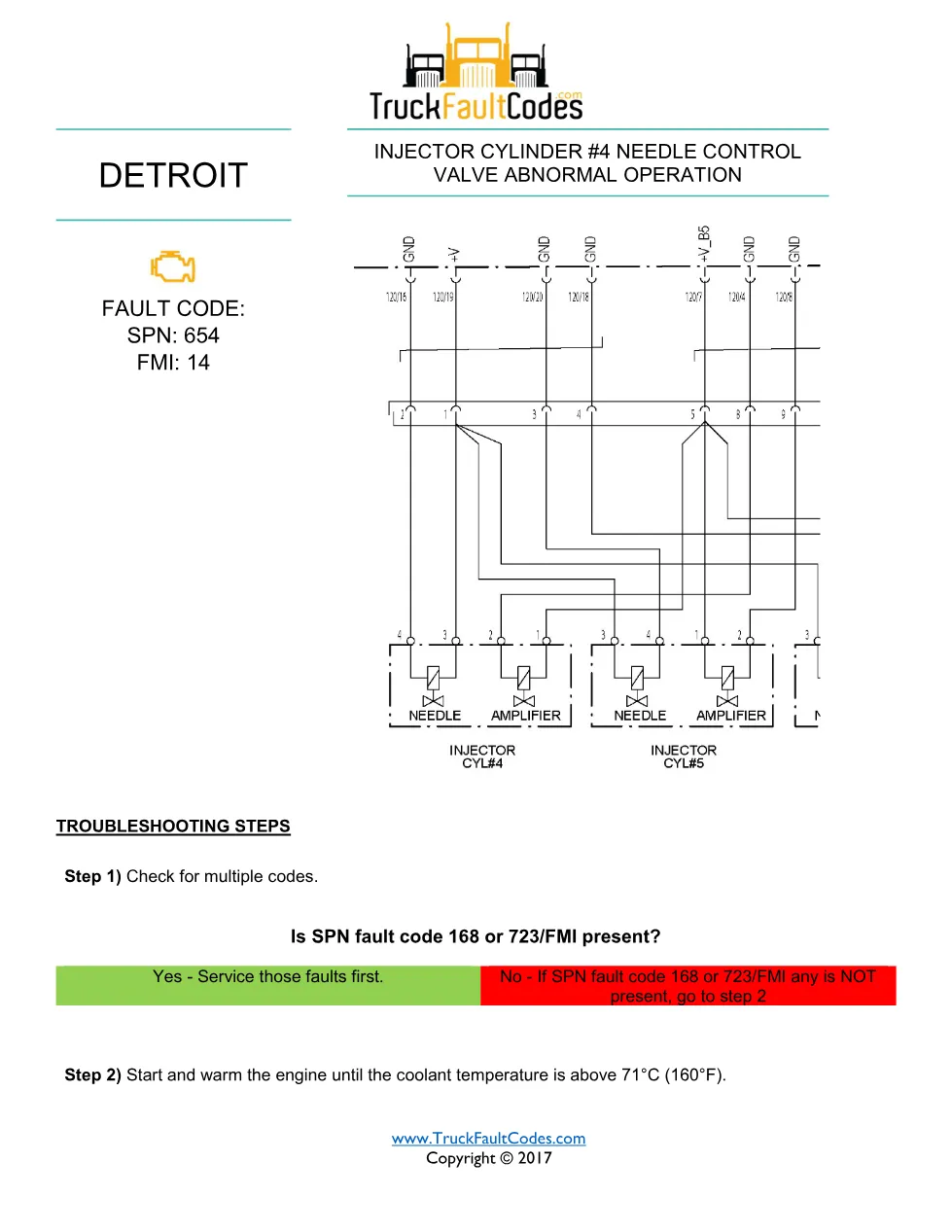

SPN 654 FMI 14 is the Detroit diagnostic trouble code for Injector Cylinder #4 Needle Control Valve Abnormal Operation on DD Series (EPA 2007-current) engines. This 6-page PDF, published by TruckFaultCodes.com (© 2017), reproduces the official Detroit fault-code sheet — the description table plus the full sixteen-step troubleshooting routine. It is a diagnostic reference for shop use, not a substitute for Detroit Power Service Literature.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-current); also Series 60 (DDEC VI) |
| System / group | DTCs — fuel injection |
| Fault SPN | 654 |
| Fault FMI | 14 |
| Emissions | EPA07 |
| Source | TruckFaultCodes.com fault-code sheet (© 2017) |
| Pages | 6 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code header and monitored parameter
- Troubleshooting Steps 1 through 16

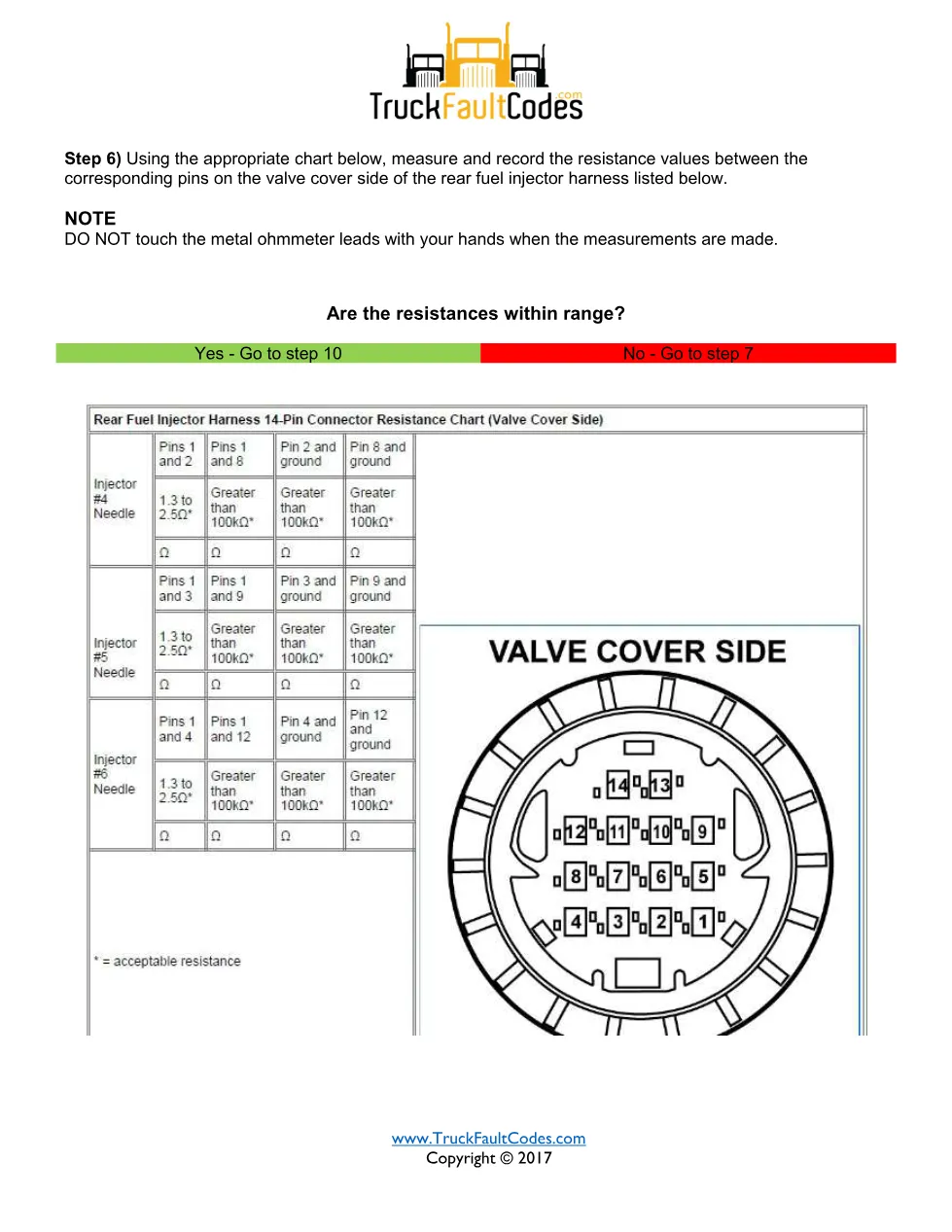

- Rear fuel injector harness 14-pin resistance charts
- Rocker cover and injector harness removal references
- MCM 120-pin connector inspection
- Test MCM installation and 30-minute road test
Applicable truck models
The routine applies to Detroit DD Series engines — the DD13, DD15 and DD16 family — built on the EPA 2007-current platform, and the sheet cross-references Series 60 (DDEC VI) applications. It covers the EPA07 emissions calibration named in the file. Verify the engine serial number and emissions family against build records before servicing; model and rating data are published by Detroit on its official engine site.
SPN 654 FMI 14 troubleshooting steps

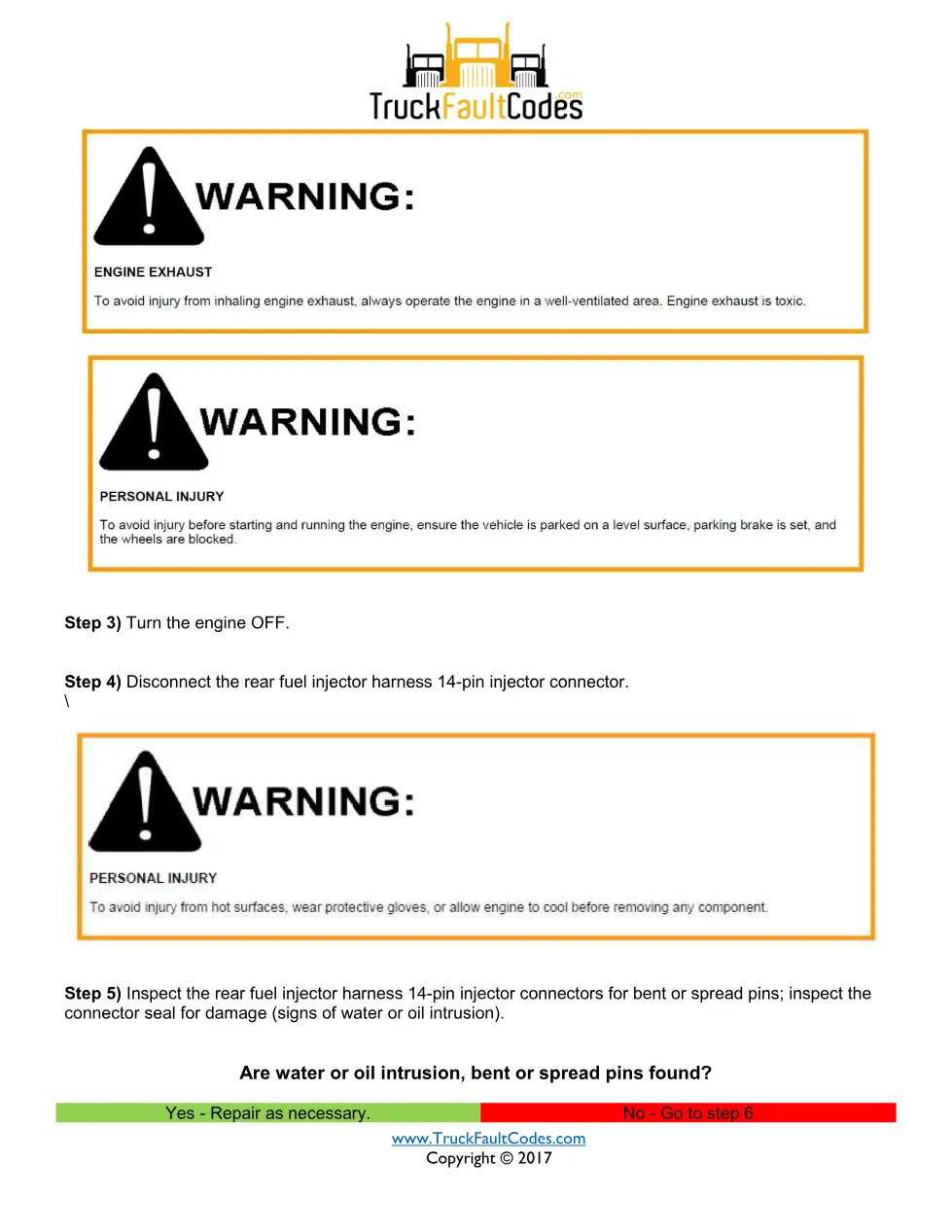

This procedure runs sixteen ordered steps. It starts by checking for companion codes SPN 168 or 723 and warming the engine above 71°C (160°F). The technician disconnects the rear fuel injector harness 14-pin connector, inspects the pins for water or oil intrusion, and measures the needle control valve resistance with a diesel diagnostic tool. Out-of-range readings lead to the rocker cover and a direct injector-side check; in-range readings move on to the MCM 120-pin connector inspection and a test MCM (extension harness J-49120) before a 30-minute road test.
Who needs this SPN 654 FMI 14 manual
Independent diesel technicians, fleet service teams and Detroit DD Series owners use this sheet to confirm a needle control valve fault before condemning an injector or the MCM. Following the documented resistance checks avoids replacing good parts and supports a warranty claim to the Detroit Customer Support Center.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
