SPN 652 FMI 3 is the Detroit DD Series diagnostic trouble code for Injector Cylinder #2 Needle Control Valve abnormal operation (MAX), documented in this 8-page PDF from the DD Series (EPA 2007-Current) DTC library. The reference gives the fault description, enabling conditions and the full step-by-step troubleshooting flow a technician follows. It is sourced from the TruckFaultCodes.com Detroit fault code library (© 2017).
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DTCs — SPN 652, FMI 3 |
| Fault | Injector Cylinder #2 Needle Control Valve abnormal operation (MAX) |
| Year / Revision | EPA10 / GHG14 |
| Pages | 8 |
What SPN 652 FMI 3 means

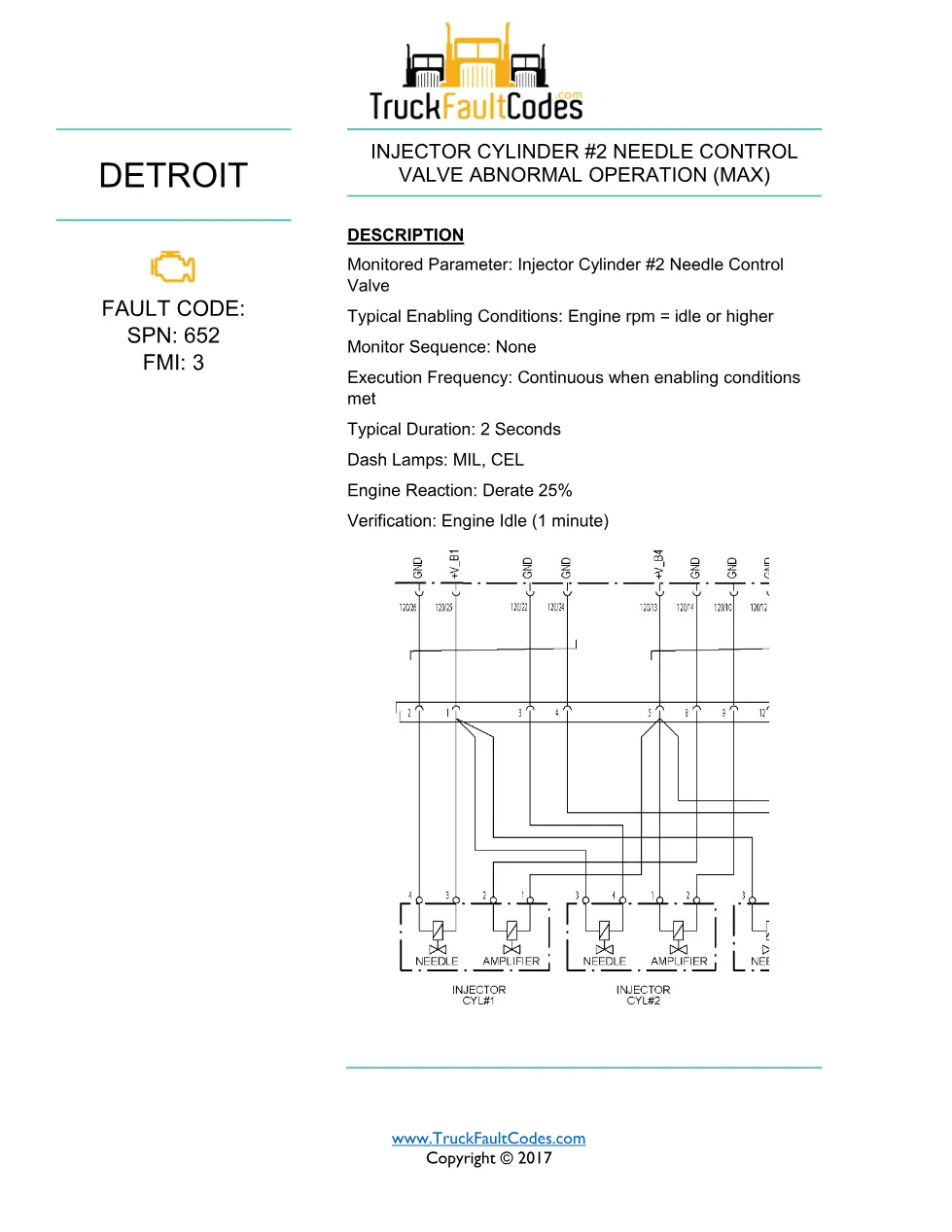

This diagnostic trouble code sets when the Motor Control Module (MCM) detects injector cylinder #2 needle control valve abnormal operation (max) on the DD Series engine. The affected circuit runs through the front fuel injector harness 14-pin injector connector at the valve cover. When the fault is active the engine typically triggers the MIL and CEL dash lamps and applies a 25% engine derate, so drivers usually report a power loss alongside the warning light.
How to diagnose SPN 652 FMI 3
The manual walks a technician through the full decision tree with a diesel diagnostic tool. Key checks include:

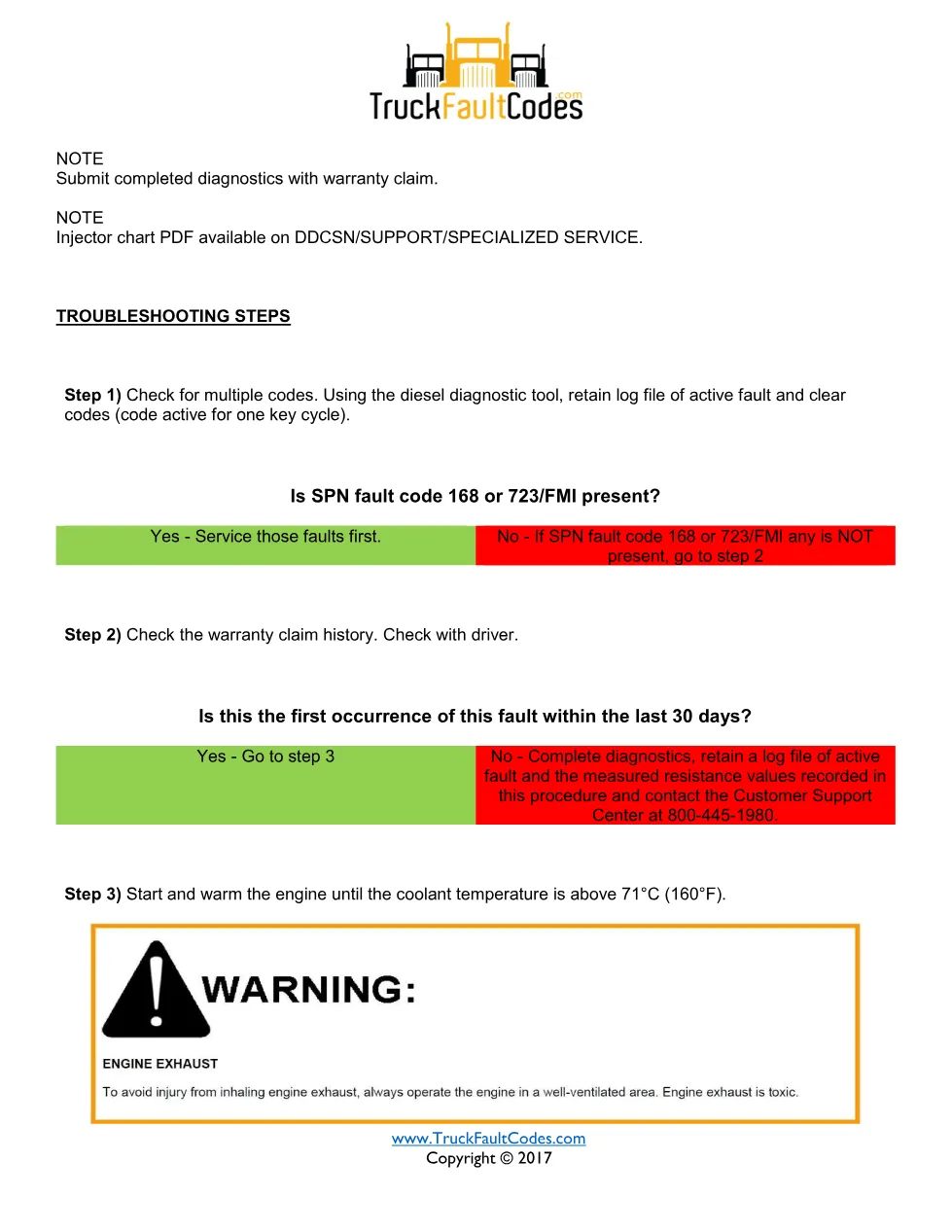

- Retain a log file of the active fault and clear codes, then confirm no SPN 168 or 723 codes are present first.

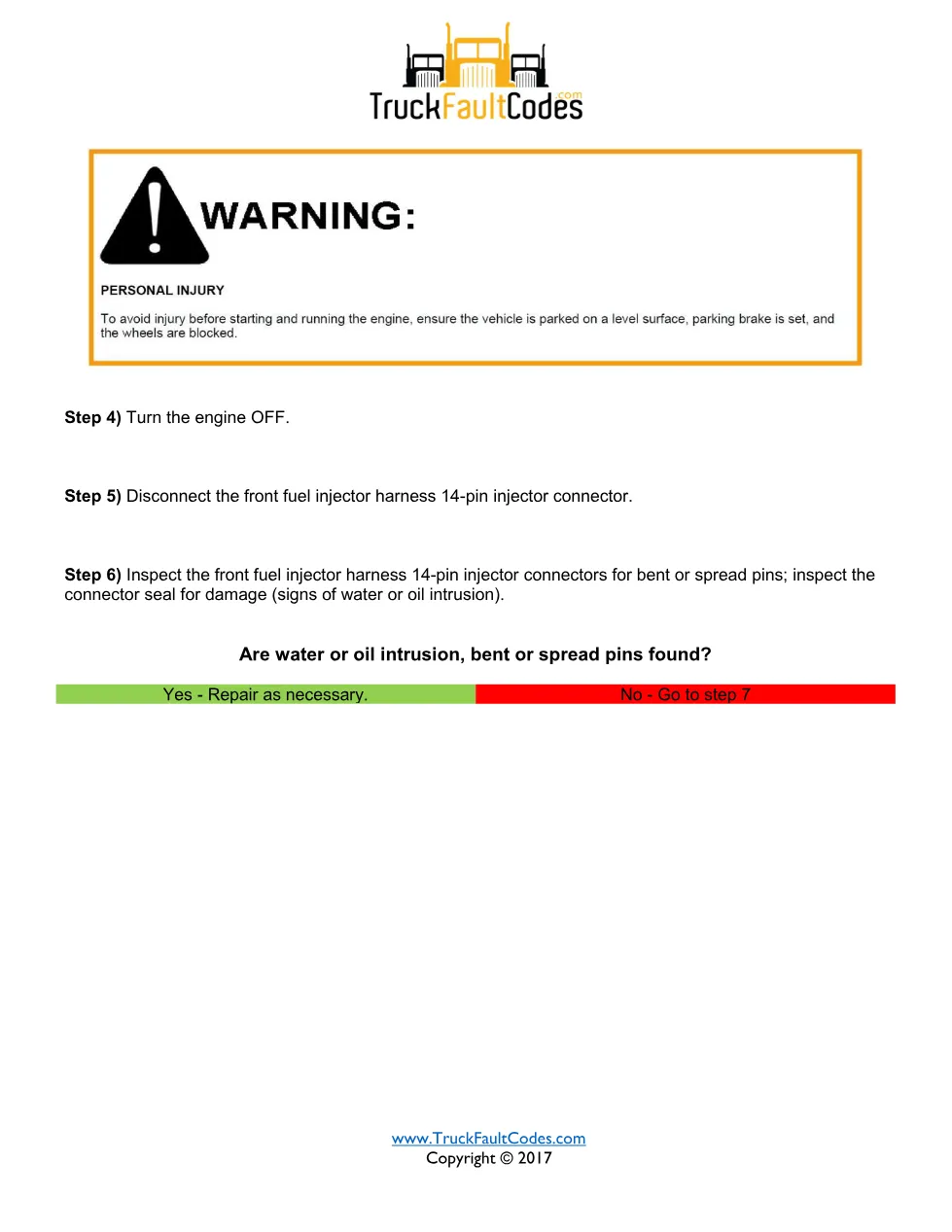

- Warm the engine above 71°C (160°F), shut it off, and disconnect the front fuel injector harness 14-pin injector connector.
- Inspect the connector for bent or spread pins and for water or oil intrusion.
- Measure and record the needle control valve resistance values against the injector chart, then remove the rocker cover and injector harness if the readings fall out of range.
Who needs this fault code
Fleet technicians and independent DD Series shops use this procedure to decide between a harness repair and a full fuel injector replacement without guessing. Because the document includes the exact resistance ranges and pin-out references, it prevents unnecessary injector swaps. For the underlying system design, cross-reference the official Detroit Diesel service portal.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
