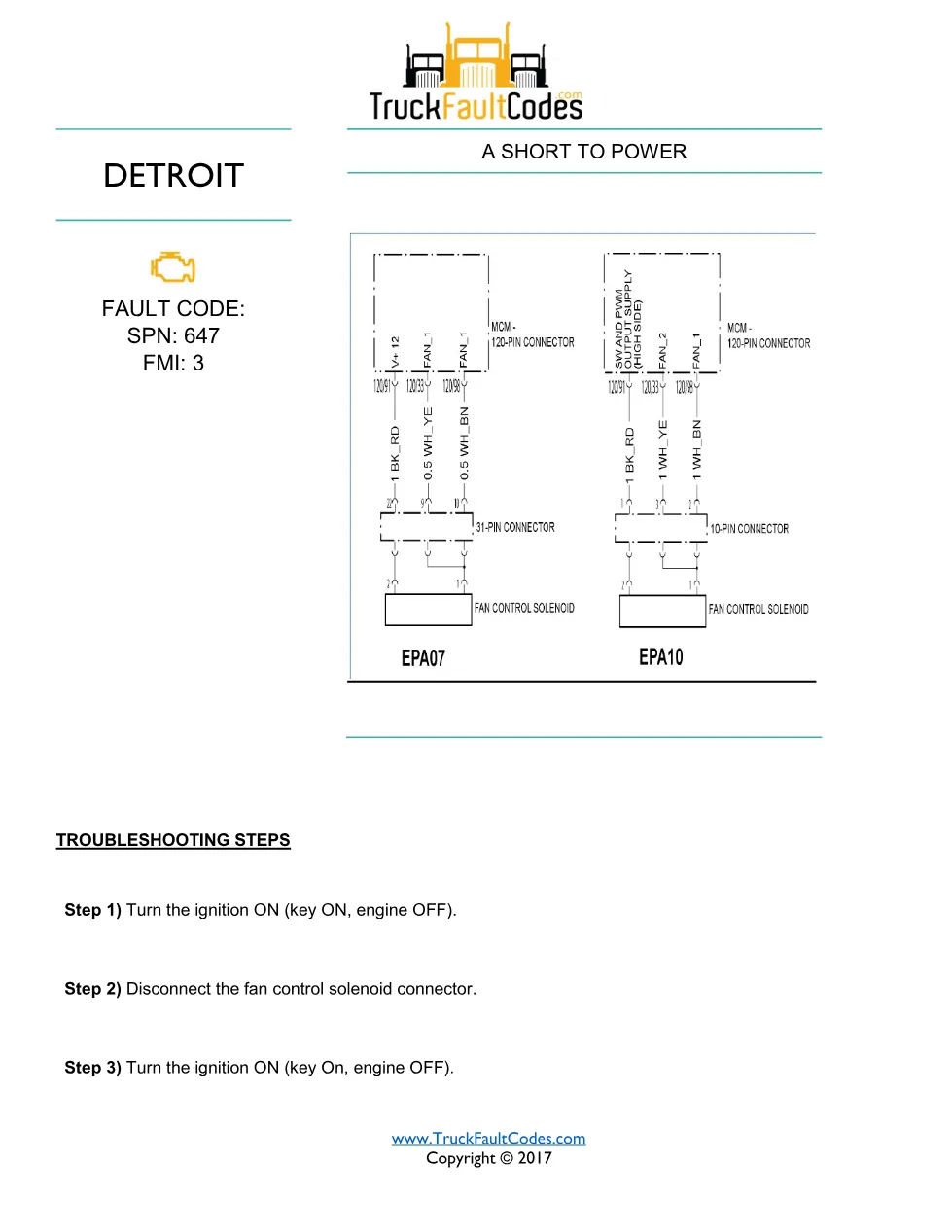

SPN 647 FMI 3 is the Detroit DD Series diagnostic trouble code for Fan control circuit short to power, documented in this 2-page PDF from the DD Series (EPA 2007-Current) DTC library. The reference gives the fault description, enabling conditions and the full step-by-step troubleshooting flow a technician follows. It is sourced from the TruckFaultCodes.com Detroit fault code library (© 2017), publication reference #1456.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DTCs — SPN 647, FMI 3 |
| Fault | Fan control circuit short to power |
| Publication no. | #1456 |
| Year / Revision | EPA07 / EPA10 |
| Pages | 2 |
What SPN 647 FMI 3 means
This diagnostic trouble code reports a fan control circuit short to power in the fan control solenoid circuit on the DD Series engine. The monitored parameter is the fan control solenoid, and the circuit is wired to the 120-pin Motor Control Module (MCM) connector. The MIL and CEL dash lamps illuminate when the fault is active.
How to diagnose SPN 647 FMI 3

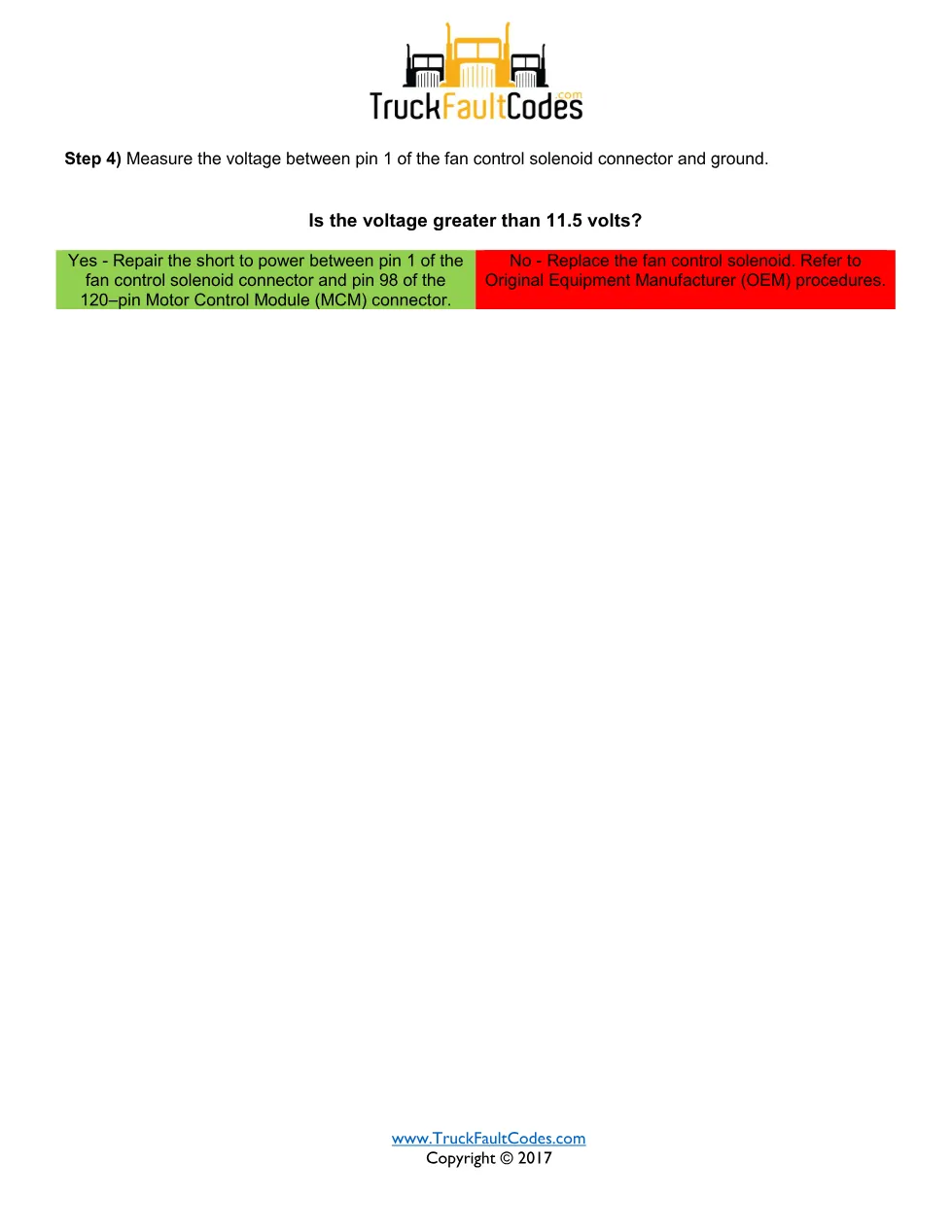

The manual guides the technician through voltage and resistance measurements at the fan control solenoid connector:
- Turn the ignition off and disconnect the fan control solenoid connector and the 120-pin MCM connector.
- Measure resistance or voltage between the solenoid connector pins and ground to isolate a short or open.
- Repair the identified wire between the fan control solenoid connector and pin 91 or pin 98 of the 120-pin MCM connector.
- Replace the fan control solenoid per OEM procedures only when the wiring checks pass.
On the DD Series, the fan control solenoid is commanded by the Motor Control Module to engage the engine cooling fan. An unresolved circuit fault can leave the fan stuck on or off and lead to overheating, so the wiring must be confirmed before the truck is returned to service.
