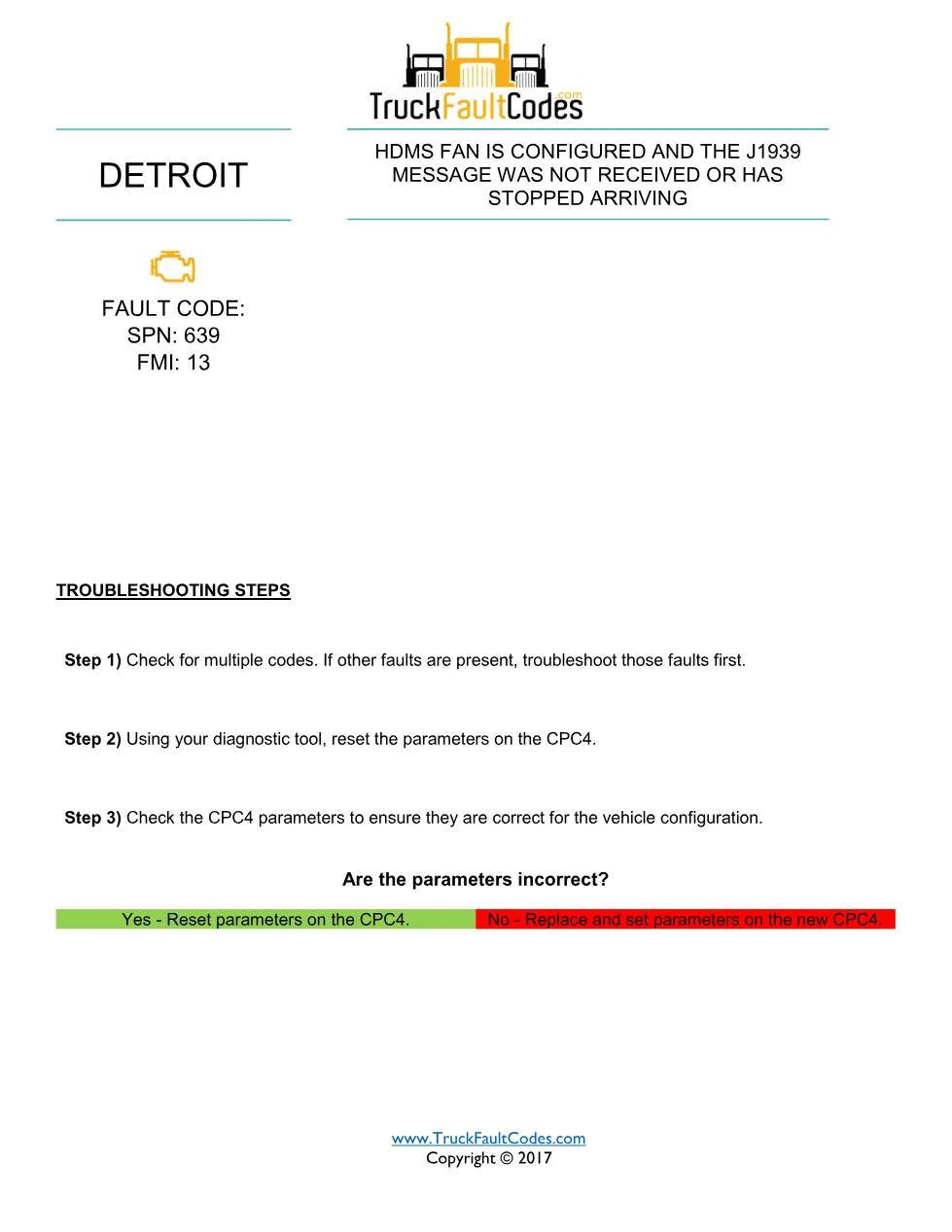

SPN 639 FMI 13 is the Detroit DD Series diagnostic trouble code for HDMS fan J1939 message not received, documented in this 1-page PDF from the DD Series (EPA 2007-Current) DTC library. The reference gives the fault description, enabling conditions and the full step-by-step troubleshooting flow a technician follows. It is sourced from the TruckFaultCodes.com Detroit fault code library (© 2017).
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DTCs — SPN 639, FMI 13 |
| Fault | HDMS fan J1939 message not received |
| Year / Revision | GHG14 |
| Pages | 1 |
What SPN 639 FMI 13 means
This diagnostic trouble code flags a J1939 data link communication problem on the DD Series network: hdms fan j1939 message not received. It is tied to the CPC4 fan configuration parameters, so the Motor Control Module cannot confirm an expected J1939 message from a configured device.
How to diagnose SPN 639 FMI 13
The manual keeps the routine short and network-focused:
- Check for multiple codes and troubleshoot any other active faults first.
- Use the diagnostic tool to reset the parameters on the CPC4.
- Verify the CPC4 parameters match the vehicle configuration; correct them if wrong.
- Replace and re-program the CPC4 only if the parameters were already correct.
The J1939 data link is the backbone that lets the Motor Control Module, CPC4 and the other modules on the DD Series share engine and vehicle data. When the configured fan message stops arriving, cooling and other dependent functions can be affected, which is why the manual has you reset and verify the CPC4 parameters before replacing the controller. Correcting the configuration usually clears the associated symptoms.
Who needs this fault code
Diagnostic technicians rely on this sheet when a Detroit DD Series truck shows lost communication or a missing J1939 message. It points straight to ServiceLink and the module configuration rather than random wiring checks. For the underlying system design, cross-reference the official Detroit Diesel service portal.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
