The SPN 630 FMI 14 fault code manual explains the Detroit communication interruption between the Common Powertrain Controller (CPC) and Motor Control Module (MCM) caused by a diagnostic tool staying connected too long. This DiagTechPro library page summarizes the official Detroit troubleshooting sheet so technicians can confirm the Communication Interruption Between CPC and MCM condition before opening the full PDF.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current) heavy-duty diesel engines, including DD13, DD15 and DD16 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 630 / FMI 14 – Communication Interruption Between CPC and MCM |
| Emissions platform | All years |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |

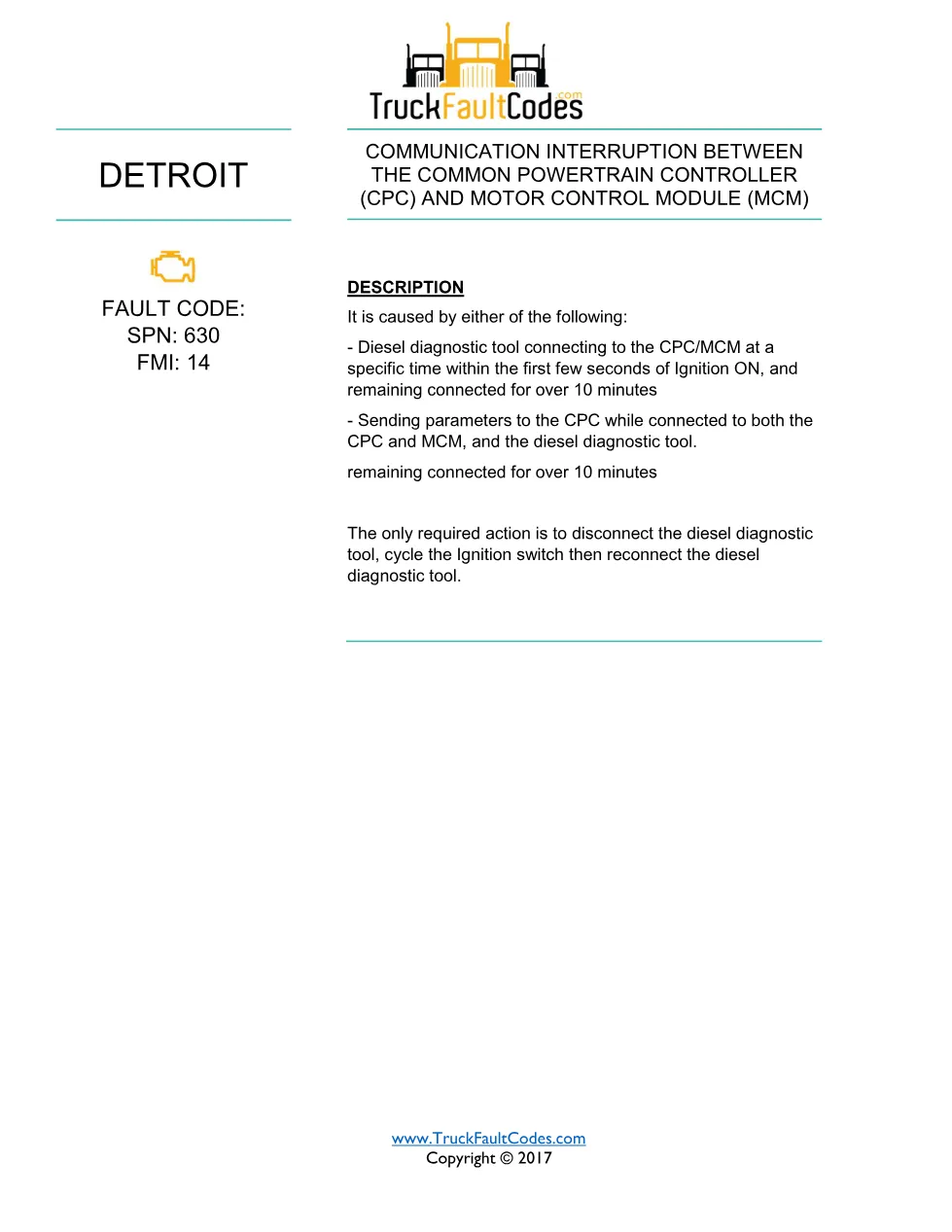

SPN 630 FMI 14 troubleshooting contents
The Detroit fault code sheet walks through these sections and diagnostic steps in order:
- Fault code identification (SPN 630, FMI 14)
- Description: cause is a diesel diagnostic tool connected during ignition-on for over 10 minutes
- Required action: disconnect the diesel diagnostic tool
- Cycle the ignition switch
- Reconnect the diesel diagnostic tool
Because these Detroit sheets present pass and fail decision points rather than long narrative, technicians should record each measured value as they proceed and compare it against the limits shown before replacing any control module, harness or sensor.
Applicable truck models covered
This diagnostic applies to Detroit DD Series (EPA 2007-Current) engines built to the All years emissions configuration, covering the DD13, DD15 and DD16 used in Freightliner and Western Star trucks. It references the Motor Control Module (MCM) and Common Powertrain Controller (CPC) that manage the affected circuit. Always confirm engine calibration against the official specification on the Detroit Diesel manufacturer website before condemning any component.
Who needs this SPN 630 FMI 14 manual
Heavy-duty truck technicians, fleet maintenance teams and workshop owners diagnosing this Detroit fault code use this sheet to follow the manufacturer procedure instead of guessing. The source sheet is published by TruckFaultCodes.com (Copyright 2017) and lists the Detroit Customer Support Center at 800-445-1980 for unresolved cases.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
