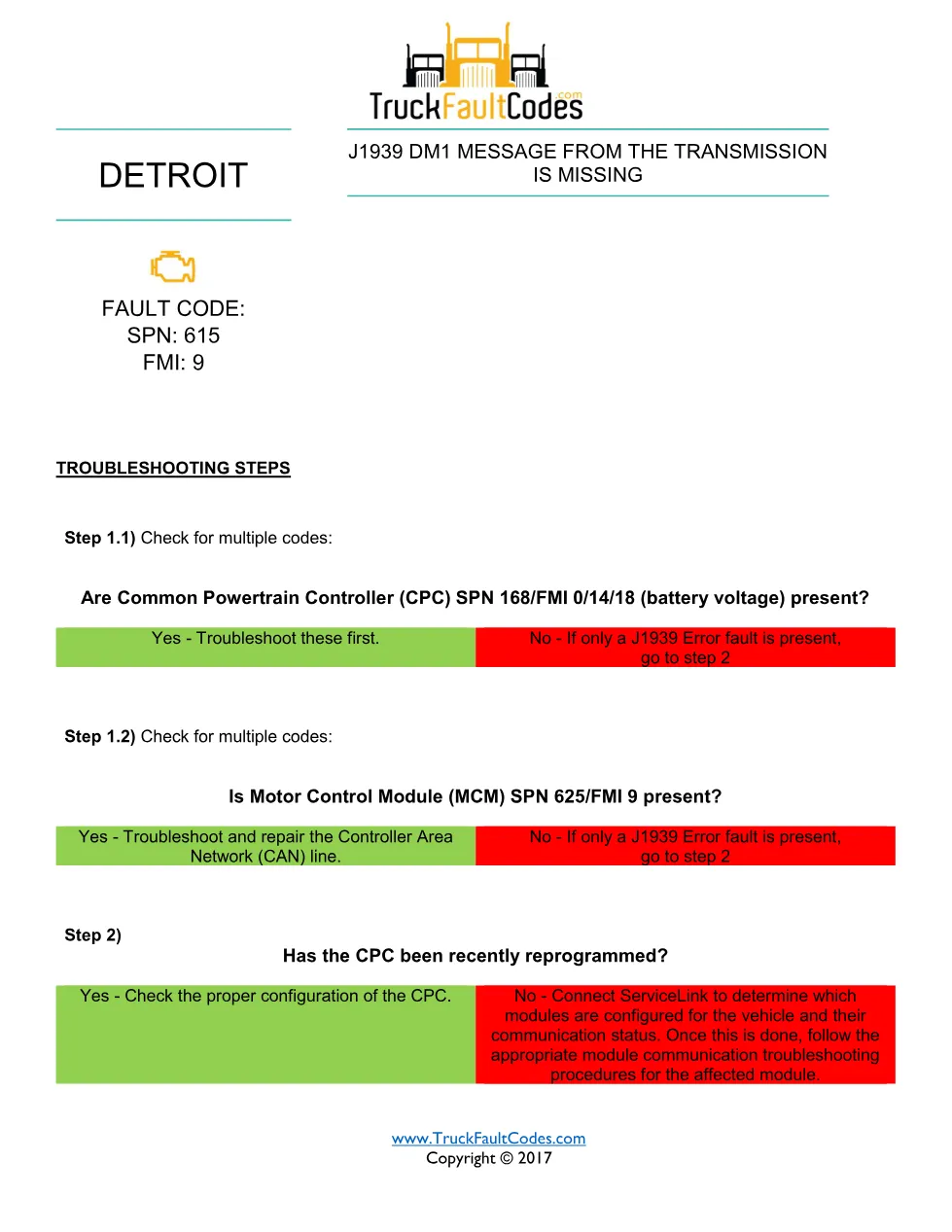

SPN 615 FMI 9 is the Detroit DD Series diagnostic fault-code sheet (SPN 615 / FMI 9) that documents a J1939 DM1 message from the transmission that is missing. This 1-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
SPN 615 FMI 9 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 615 / FMI 9 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 1 |
| File size | 0.22 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code definition (SPN 615, FMI 9)
- Multiple-code checks
- CPC and MCM cross-checks
- Troubleshooting steps
- CPC reprogramming and configuration
- ServiceLink module status check
Fault definition and diagnosis
Diagnosis begins by checking for multiple codes: battery-voltage faults on the Common Powertrain Controller (SPN 168) and a Motor Control Module SPN 625/FMI 9, which points to a Controller Area Network line fault that must be repaired first. If only a J1939 error is present, the technician confirms whether the CPC was recently reprogrammed and connects ServiceLink to determine which modules are configured for the vehicle and their communication status before following the appropriate module procedures.
Applicable truck models
It applies to Detroit DD Series engines (EPA 2007 to current) and Series 60 (DDEC VI, EPA 2007) drivetrains that exchange J1939 messages with the transmission controller. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the SPN 615 FMI 9 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 615 / FMI 9 repair before returning the truck to service.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
