SPN 597 FMI 13 is a Detroit fault code reference sheet that documents the J1939 service brake switch signal from source #1, #2, or #3 is missing diagnostic for DD Series engines built to EPA 2007 and later emissions standards. This single-topic page reproduces the factory-style test order Detroit dealers and independent shops follow for the J1939 service brake switch signal circuit, from confirming related codes through to the final repair decision.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / group | Diagnostic Trouble Codes (DTCs) |
| Suspect Parameter Number | 597 |
| Failure Mode Identifier | 13 |
| Emissions revision | all model years |
| Source | Detroit fault code sheet (© 2017, www.TruckFaultCodes.com) |
| Pages | 1 |
| File size | 0.22 MB |
| Format | |
| Language | English |

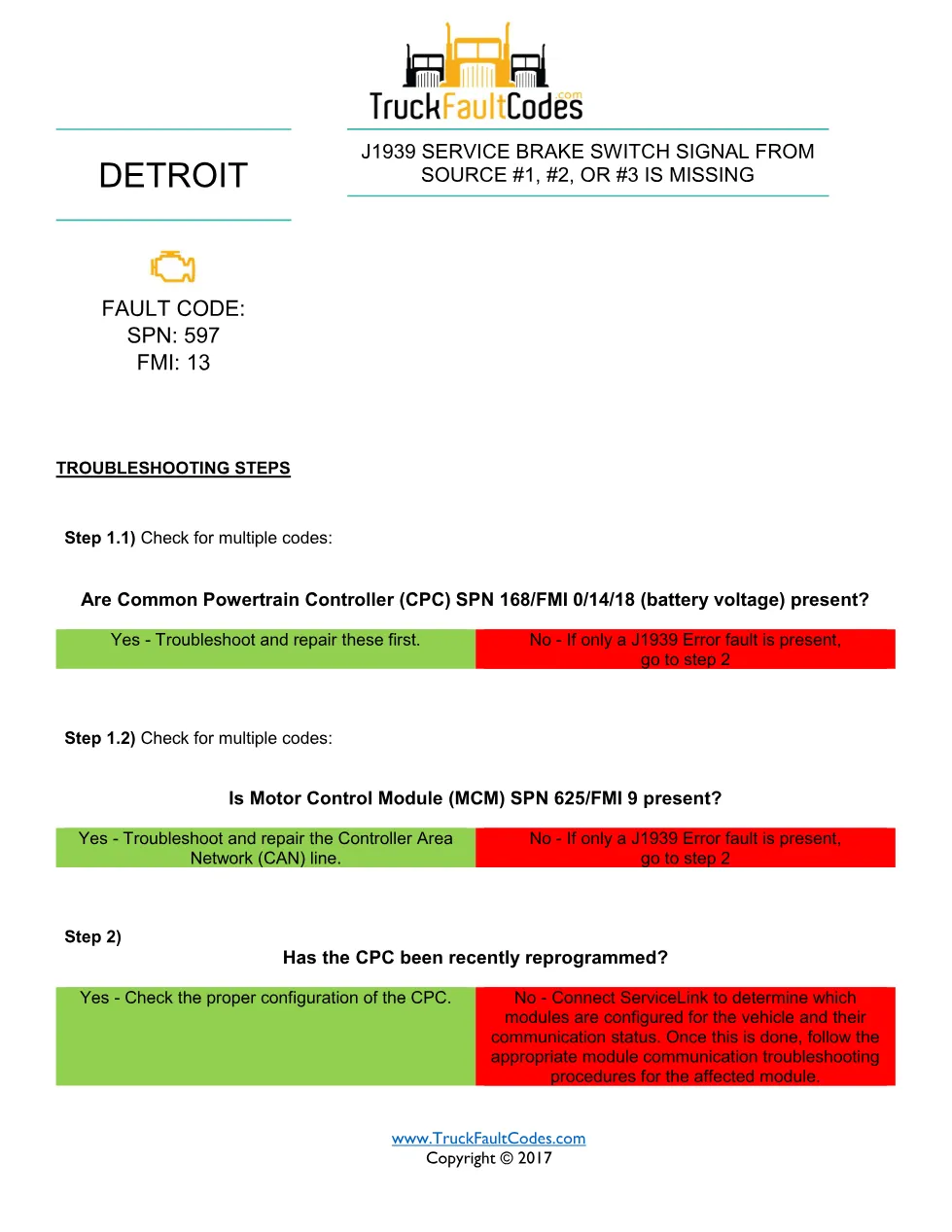

SPN 597 FMI 13 troubleshooting steps
The sheet lists the ordered checks Detroit publishes for this code, so a technician can rule out network and power-supply faults before condemning a switch, sensor or module. The main steps are:
- Check whether Common Powertrain Controller (CPC) codes SPN 168 / FMI 0, 14 or 18 (battery voltage) are present, and repair those first.
- Check whether Motor Control Module (MCM) SPN 625 / FMI 9 is present; if so, repair the Controller Area Network (CAN) line.
- Confirm whether the CPC has been recently reprogrammed and verify its configuration.
- Connect ServiceLink to see which modules are configured for the vehicle and their communication status, then follow the affected module’s troubleshooting procedure.
Applicable truck models
This code applies to Detroit DD Series diesel engines (EPA 2007 to current) and, for the shared driveline codes, to Series 60 (DDEC VI) installations that use the same Common Powertrain Controller and Motor Control Module architecture. Coverage is defined by the engine and control-module configuration rather than the truck badge, so confirm the exact build against the current model line on the Detroit Diesel official website.
Who needs this SPN 597 FMI 13 manual
This SPN 597 FMI 13 manual is written for diesel technicians and DD Series fleet owners who are diagnosing lost or dropped service-brake switch data on the J1939 network and want the exact Detroit test order before ordering parts. Following the documented sequence keeps unnecessary sensor and module replacements to a minimum.
