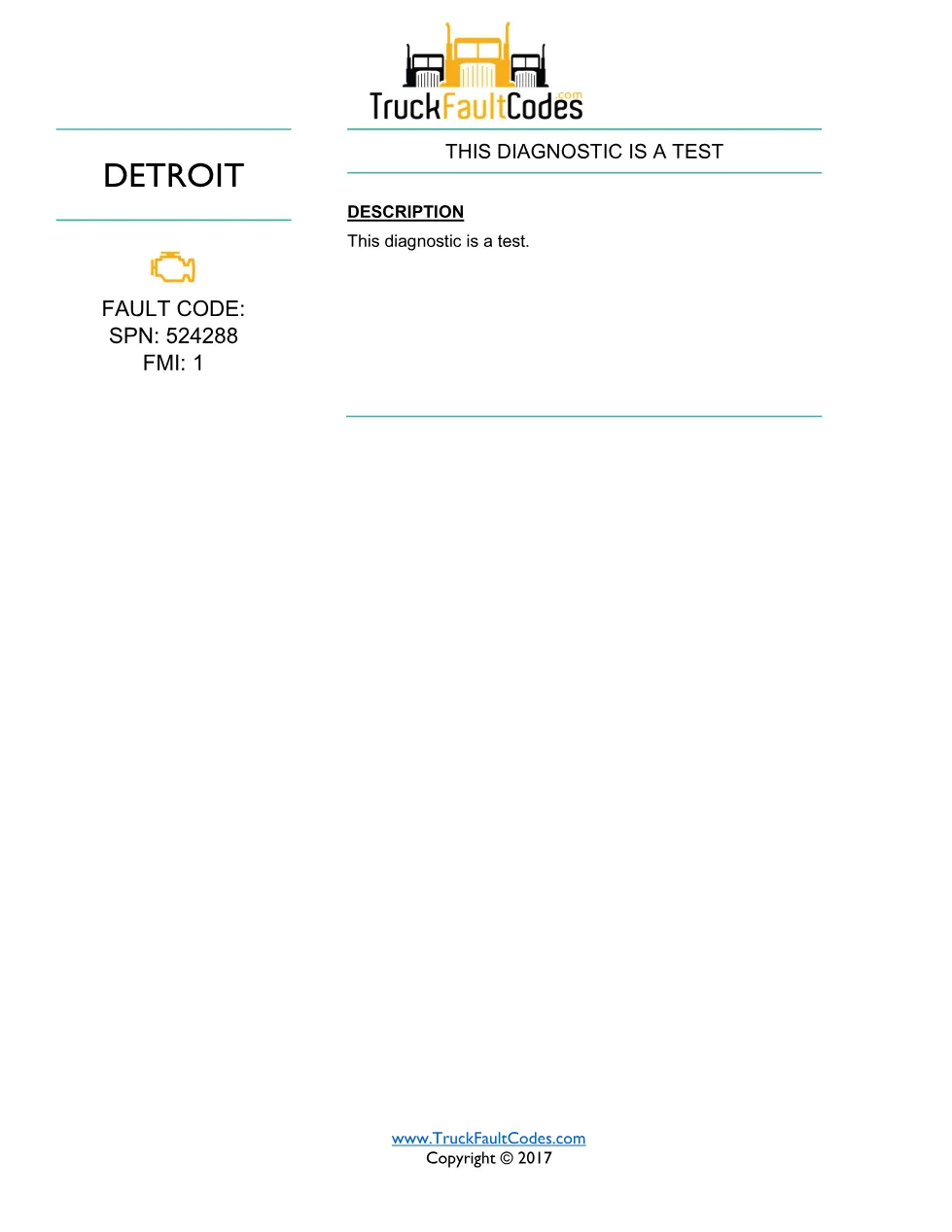

SPN 524288 FMI 1 is a Detroit DD Series diagnostic fault-code reference for engines on the EPA07 emissions platform. On this one-page sheet, SPN 524288 / FMI 1 is documented as a test diagnostic, meaning the entry is defined in Detroit’s fault-code list rather than as a live repair procedure.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series diesel engines (EPA 2007-Current) |
| System / Group | DTCs — fault code reference |
| Publication no. | TruckFaultCodes.com reference, 2017 |
| Year / Revision | EPA07 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification
- Fault description
- Diagnostic tool connection
- Reference: TruckFaultCodes.com sheet
Applicable truck models covered
This fault-code sheet applies to Detroit DD Series diesel engines on the EPA07 emissions platform. It records SPN 524288 / FMI 1 as a test diagnostic rather than a field repair. Detroit documentation notes that some CPC4 digital outputs share an SPN with Motor Control Module (MCM2.1) faults, so the diesel diagnostic tool makes the distinction. For official service resources, see Detroit’s official website.
Understanding SPN 524288 FMI 1
On this reference sheet, SPN 524288 / FMI 1 is documented as a diagnostic test entry, and the source states “This diagnostic is a test.” In the SAE J1939 framework used by Detroit, the SPN identifies the affected component or signal and the FMI describes the failure type. Because this entry is flagged as a test rather than an active repair procedure, a diesel diagnostic tool should be used to confirm whether any accompanying active fault codes are present before releasing the vehicle, and the reader should treat the sheet as an identification reference rather than a step-by-step repair.
Who needs the SPN 524288 FMI 1 sheet
Detroit diesel technicians, DD Series fleet workshops and mobile repair units use this fault-code sheet to read the condition correctly, follow the right diagnostic path with a diesel diagnostic tool, and reference Original Equipment Manufacturer literature for the matching wiring schematics before making a repair.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
