SPN 524 FMI 9 is a Detroit fault code reference sheet that documents the J1939 ETC2 message is missing diagnostic for DD Series engines built to EPA 2007 and later emissions standards. This single-topic page reproduces the factory-style test order Detroit dealers and independent shops follow for the J1939 ETC2 message, from confirming related codes through to the final repair decision.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / group | Diagnostic Trouble Codes (DTCs) |
| Suspect Parameter Number | 524 |
| Failure Mode Identifier | 9 |
| Emissions revision | all model years |
| Source | Detroit fault code sheet (© 2017, www.TruckFaultCodes.com) |
| Pages | 1 |
| File size | 0.22 MB |
| Format | |
| Language | English |

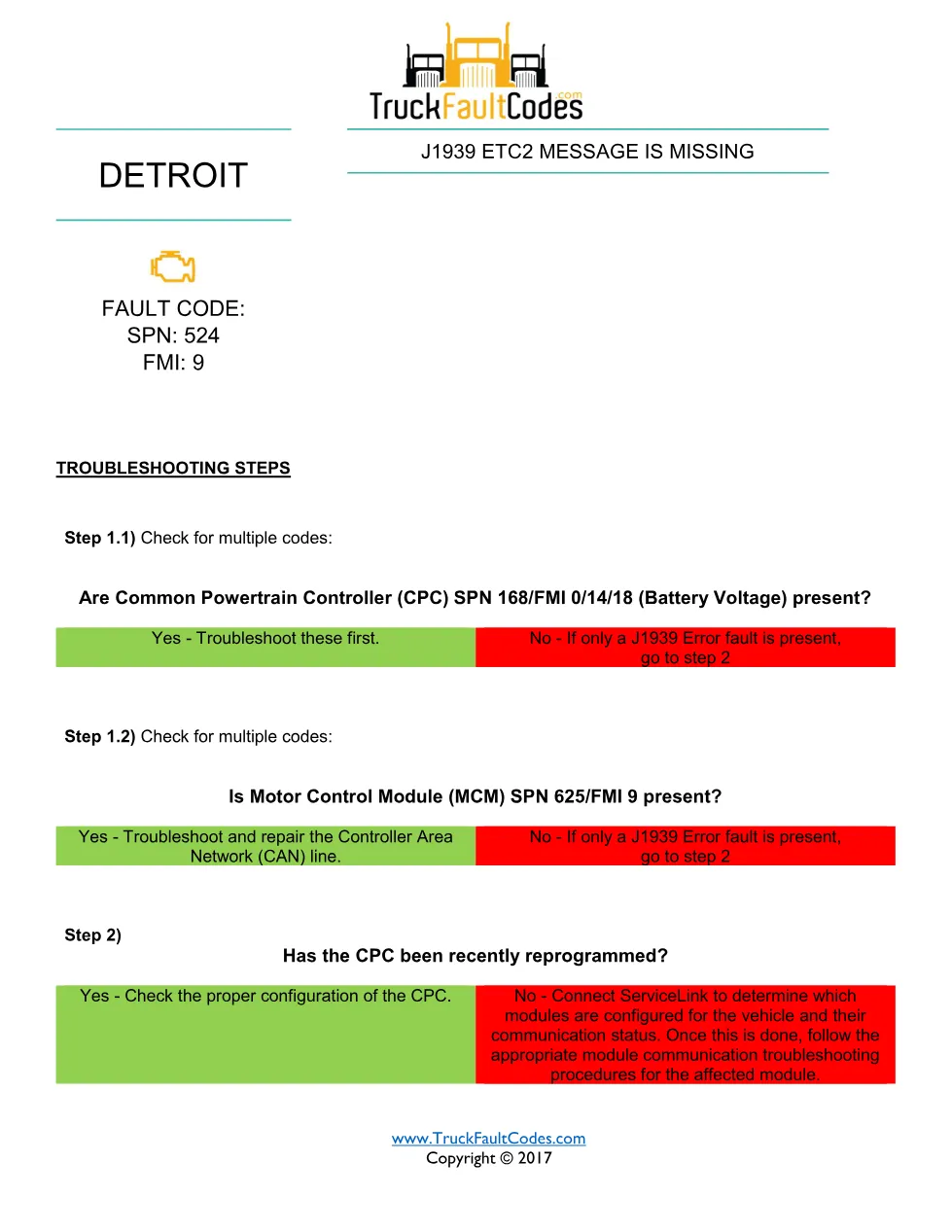

SPN 524 FMI 9 troubleshooting steps
The sheet lists the ordered checks Detroit publishes for this code, so a technician can rule out network and power-supply faults before condemning a switch, sensor or module. The main steps are:
- Check whether Common Powertrain Controller (CPC) codes SPN 168 / FMI 0, 14 or 18 (battery voltage) are present, and repair those first.
- Check whether Motor Control Module (MCM) SPN 625 / FMI 9 is present; if so, repair the Controller Area Network (CAN) line.
- Confirm whether the CPC has been recently reprogrammed and verify its configuration.
- Connect ServiceLink to see which modules are configured for the vehicle and their communication status, then follow the affected module’s procedure.
Applicable truck models
This code applies to Detroit DD Series diesel engines (EPA 2007 to current) and, for the shared driveline codes, to Series 60 (DDEC VI) installations that use the same Common Powertrain Controller and Motor Control Module architecture. Coverage is defined by the engine and control-module configuration rather than the truck badge, so confirm the exact build against the current model line on the Detroit Diesel official website.
Who needs this SPN 524 FMI 9 manual
This SPN 524 FMI 9 manual is written for diesel technicians and DD Series fleet owners who are diagnosing a missing J1939 ETC2 transmission message and want the exact Detroit test order before ordering parts. Following the documented sequence keeps unnecessary sensor and module replacements to a minimum.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
