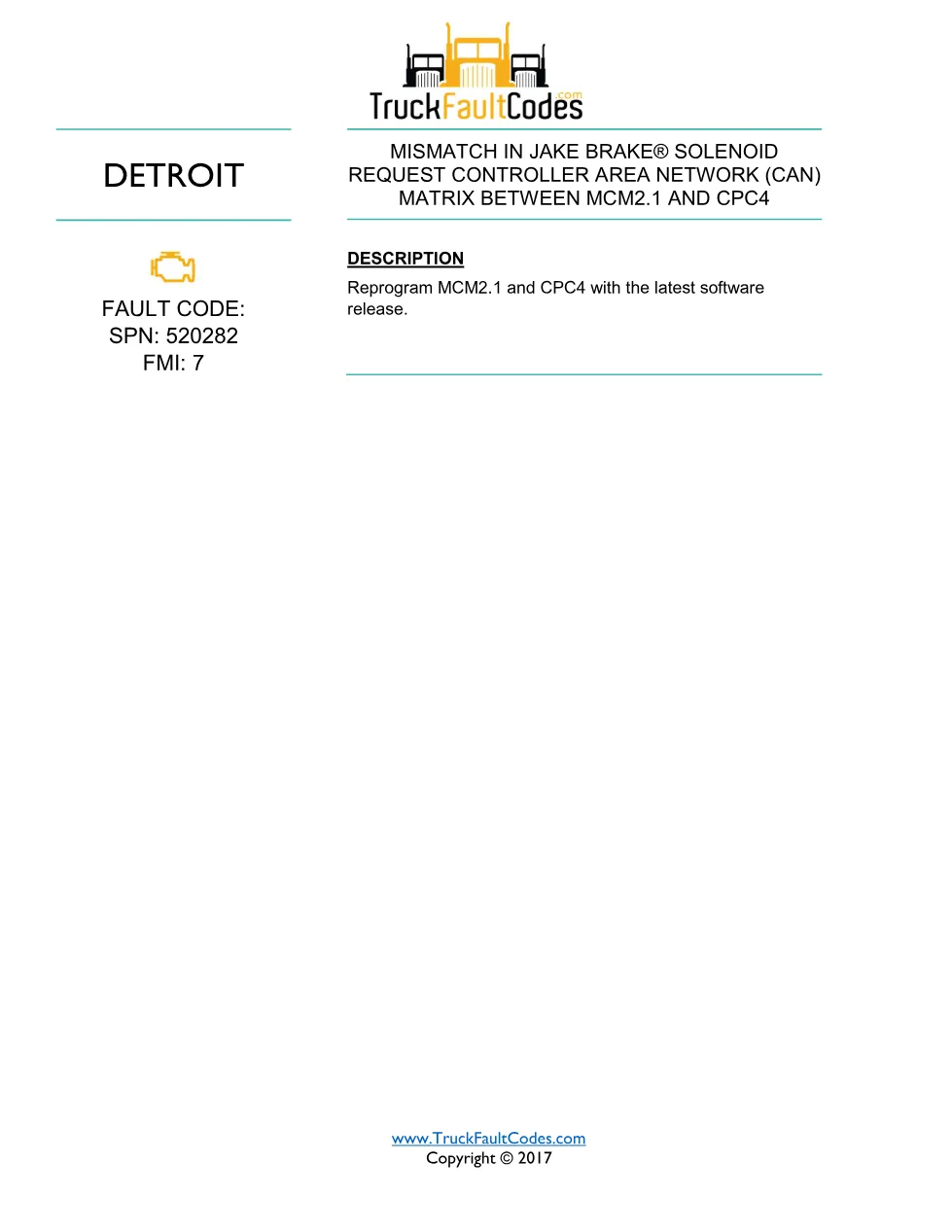

SPN 520282 FMI 7 is the Detroit fault code for Mismatch in Jake Brake Solenoid Request CAN Matrix Between MCM2.1 and CPC4, and this 1-page PDF gives the official description and the corrective action. The code sets when the Jake Brake solenoid request CAN matrix does not match between the Motor Control Module (MCM2.1) and the Common Powertrain Controller (CPC4).
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-current); also Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 520282, FMI 7 |
| Year / Revision | Copyright 2017 (TruckFaultCodes.com) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (SPN and FMI)
- Description of the CAN matrix mismatch
- Recommended service action
- Clearing codes after reprogramming
Applicable models for SPN 520282 FMI 7
This diagnostic trouble code applies to Detroit DD13, DD15 and DD16 engines built to EPA 2007 and later standards, and to the Series 60 (DDEC VI) set. It reflects a data-set mismatch across the Controller Area Network between the MCM2.1 and CPC4, so the remedy is to reprogram both modules with the latest software release. For current releases and dealer support, see the official Detroit Diesel website.
Who needs this SPN 520282 FMI 7 guide
Technicians who see this code after a module reprogram or replacement use this guide to confirm the mismatch and bring both the MCM2.1 and CPC4 to a matching software release, then clear the codes. This library page summarises the official Detroit fault-code sheet published on TruckFaultCodes.com (Copyright 2017) and is meant as a quick reference. Because the correct fix depends on module software levels and configuration, confirm the latest software release and programming steps against current Detroit Power Service Literature and the diesel diagnostic tool before replacing any hardware. After reprogramming, clear all fault codes and re-test; if the code stays active, contact the Detroit Customer Support Center at 800-445-1980 with your diagnostic log files. The complete PDF is available in the DiagTechPro manuals library, where a free account is required to download.
