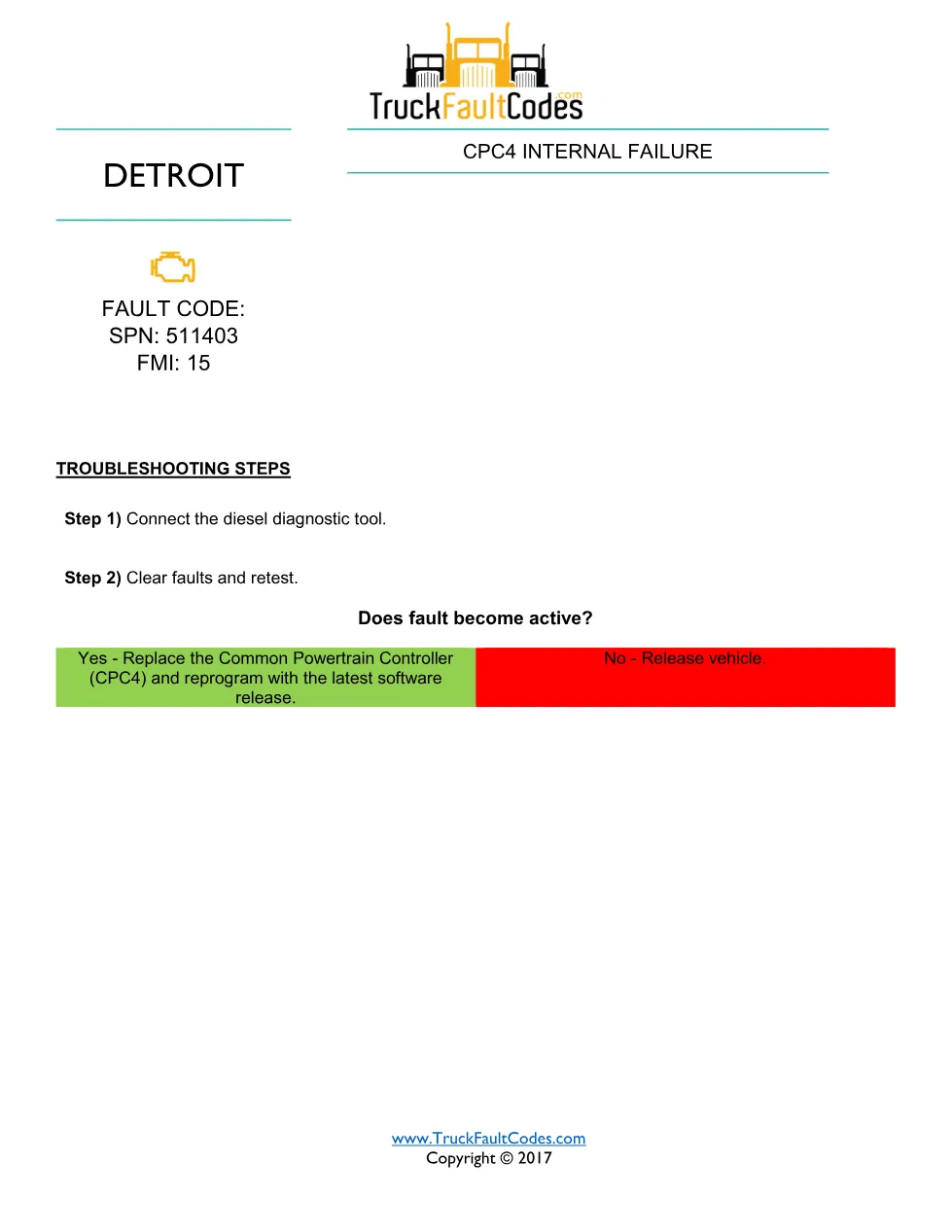

SPN 511403 FMI 15 is the Detroit Diesel fault-code service sheet that documents a Common Powertrain Controller (CPC4) internal failure. It is a short controller-integrity check that ends in module replacement when the fault persists. This DiagTechPro library page summarizes what the 1-page PDF contains so a technician can confirm it is the right document before downloading.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); Series 60 DDEC VI (EPA 2007) |
| System / group | GHG14 diagnostic trouble codes |
| Suspect Parameter Number | 511403 |
| Failure Mode Identifier | 15 |
| Source | TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Step 1: connect the diesel diagnostic tool
- Step 2: clear faults and retest
- Corrective action: replace and reprogram CPC4
- Release condition when the code does not return
SPN 511403 FMI 15 diagnostic summary
The procedure is brief: the technician connects the diesel diagnostic tool, clears the faults and retests. If the fault becomes active again, the sheet calls for replacing the Common Powertrain Controller (CPC4) and reprogramming it with the latest software release; if the code does not return, the vehicle is released. Because the concern is internal to the controller, no wiring or sensor test is provided, so confirming that the fault is repeatable is the key diagnostic step before condemning the module.
Applicable Detroit truck models
This fault-code sheet applies to Detroit DD Series engines certified to EPA 2007 and later emissions standards, and it is cross-listed under the Detroit Series 60 (DDEC VI, EPA 2007) diagnostic set. For full engine specifications and support details, see the official Detroit website.
Who needs this 511403 FMI 15 manual
Detroit technicians facing a controller-integrity code use this sheet to verify the failure is repeatable before ordering and programming a replacement CPC4.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
