SPN 4375 FMI 3 is the Detroit Diesel diagnostic trouble code set when a Diesel Exhaust Fluid (DEF) Pump Circuit Failed High condition is detected on DD Series (EPA 2007-current) engines. This 2-page troubleshooting sheet lists the fault definition, the relevant monitor or note data, and a numbered diagnostic routine that ends in the correct wiring or component repair. It is drawn from TruckFaultCodes.com (© 2017) and applies to the GHG14 emissions calibration.
Official document details
| Brand | Detroit Diesel |
|---|---|
| Model coverage | DD Series engines (EPA 2007-current) |
| System / group | DTCs — DEF pump circuit |
| Suspect parameter (SPN) | SPN 4375 |
| Failure mode (FMI) | DEF pump circuit failed high |
| Emissions calibration | GHG14 |
| Dash lamps | MIL, CEL |
| Engine reaction | 25% derate |
| Verification | SCR ADS self-check |
| Source / copyright | TruckFaultCodes.com, © 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format / language | PDF / English |
SPN 4375 FMI 3 table of contents

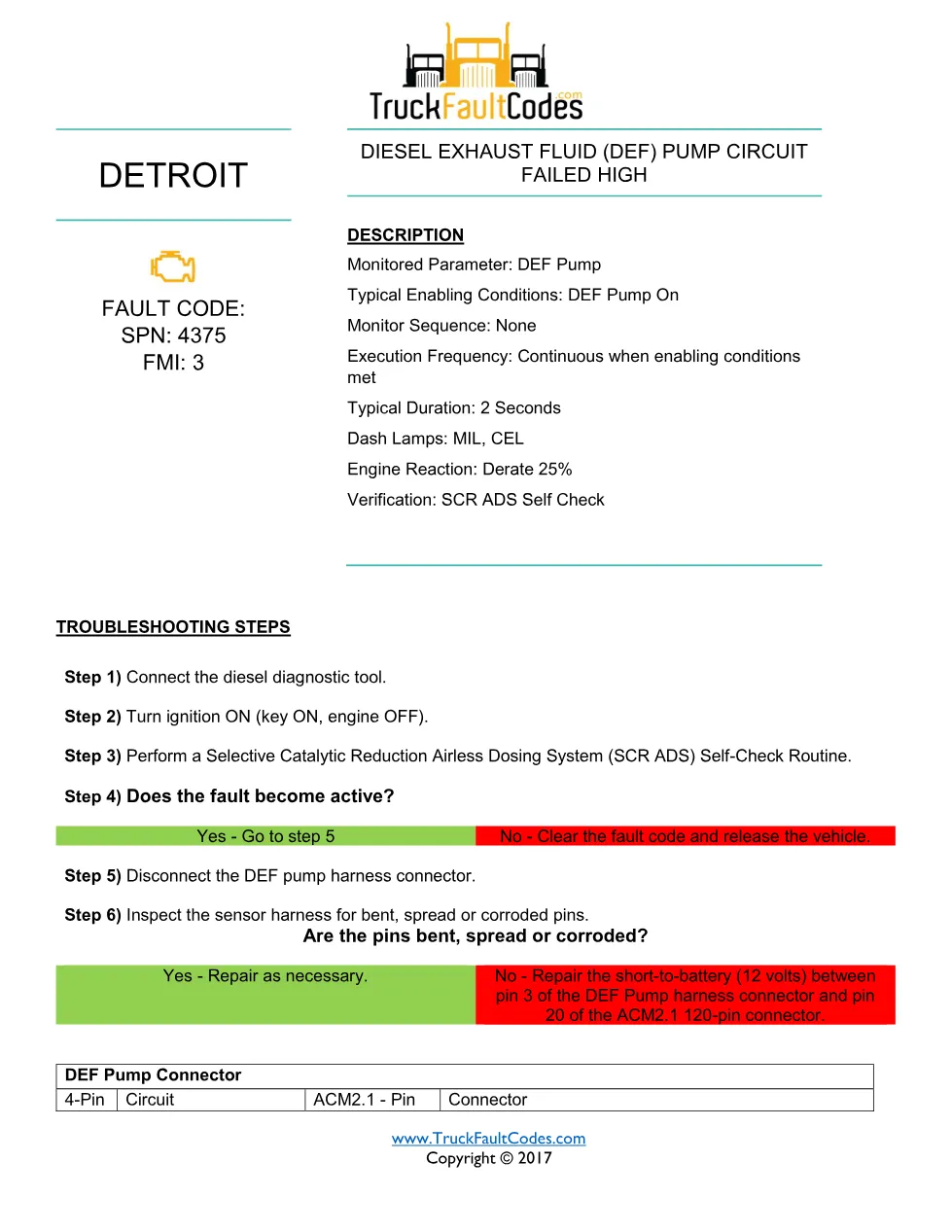

The routine opens with the diesel diagnostic tool connected and the key ON (engine off), then runs the Selective Catalytic Reduction Airless Dosing System (SCR ADS) self-check to see whether the fault is active. If it stays active, the DEF pump four-pin connector is unplugged and inspected for bent, spread or corroded pins. When the pins are sound, the sheet directs a repair of the short-to-battery (12 volts) between pin 3 of the DEF pump connector and pin 20 of the ACM2.1 120-pin connector.
- Fault code header and copyright
- Description: monitored parameter and enabling conditions
- Troubleshooting steps 1 to 6

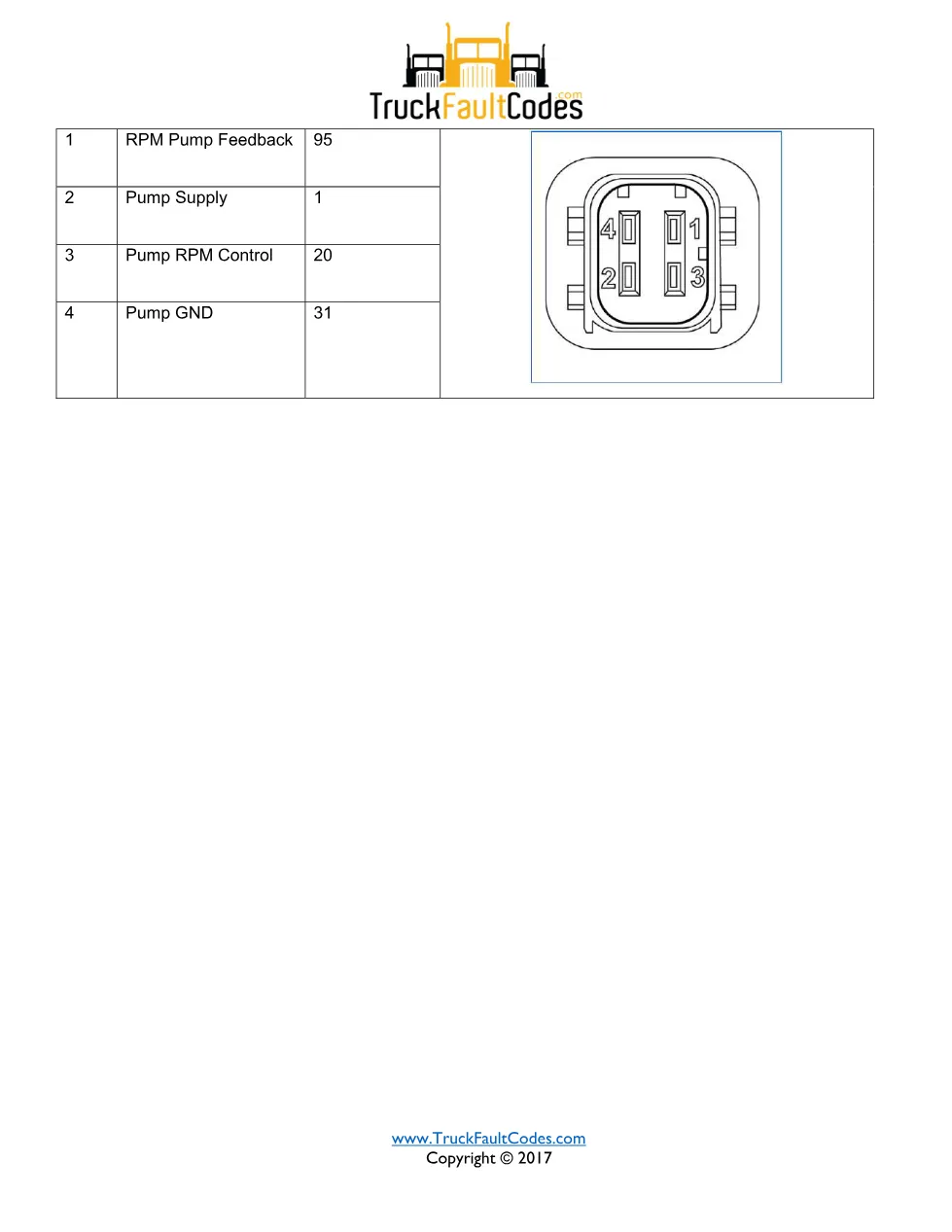

- DEF pump four-pin connector pin-out (RPM feedback, supply, RPM control, ground)
- Short-to-battery repair and code clearing
