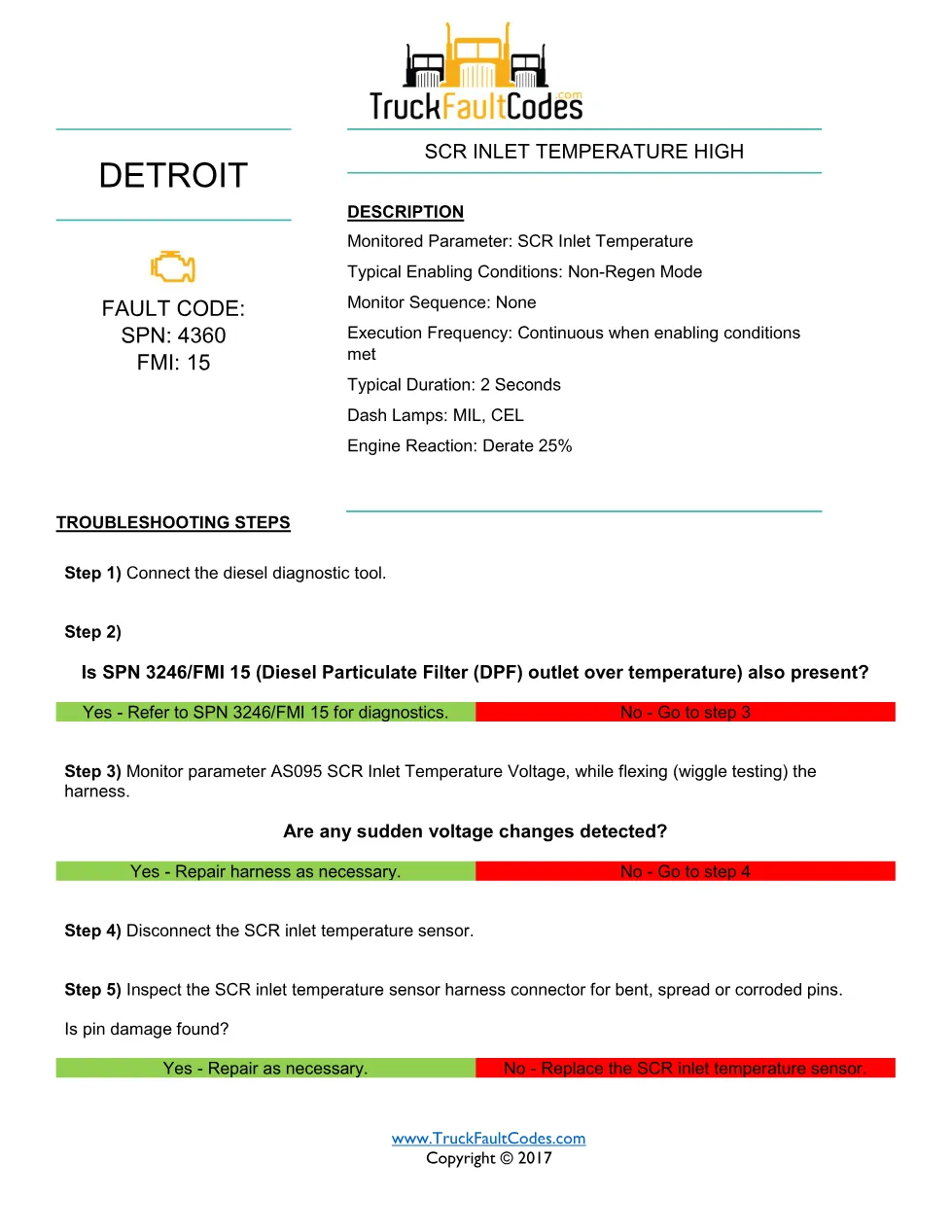

SPN 4360 FMI 15 is the Detroit Diesel diagnostic trouble code set when the SCR inlet temperature reads high on DD Series (EPA 2007-current) engines. This 1-page troubleshooting sheet lists the fault definition, the relevant monitor or note data, and a numbered diagnostic routine that ends in the correct wiring or component repair. It is drawn from TruckFaultCodes.com (© 2017) and applies to the GHG14 emissions calibration.
Official document details
| Brand | Detroit Diesel |
|---|---|
| Model coverage | DD Series engines (EPA 2007-current) |
| System / group | DTCs — SCR inlet temperature |
| Suspect parameter (SPN) | SPN 4360 |
| Failure mode (FMI) | SCR inlet temperature high |
| Emissions calibration | GHG14 |
| Dash lamps | MIL, CEL |
| Engine reaction | 25% derate |
| Verification | harness wiggle test |
| Source / copyright | TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format / language | PDF / English |
SPN 4360 FMI 15 table of contents
The technician first rules out SPN 3246/FMI 15 (DPF outlet over-temperature), which takes priority. Parameter AS095 SCR inlet temperature voltage is then monitored while flexing the harness to catch sudden voltage changes that betray a wiring fault. If none appear, the SCR inlet temperature sensor is disconnected, its connector inspected for pin damage, and the sensor replaced if the pins are sound.
- Fault code header and description (non-regen monitor)
- Cross-check against DPF outlet over-temperature
- Troubleshooting steps 1 to 5
- AS095 voltage wiggle test
- Sensor pin inspection and replacement
