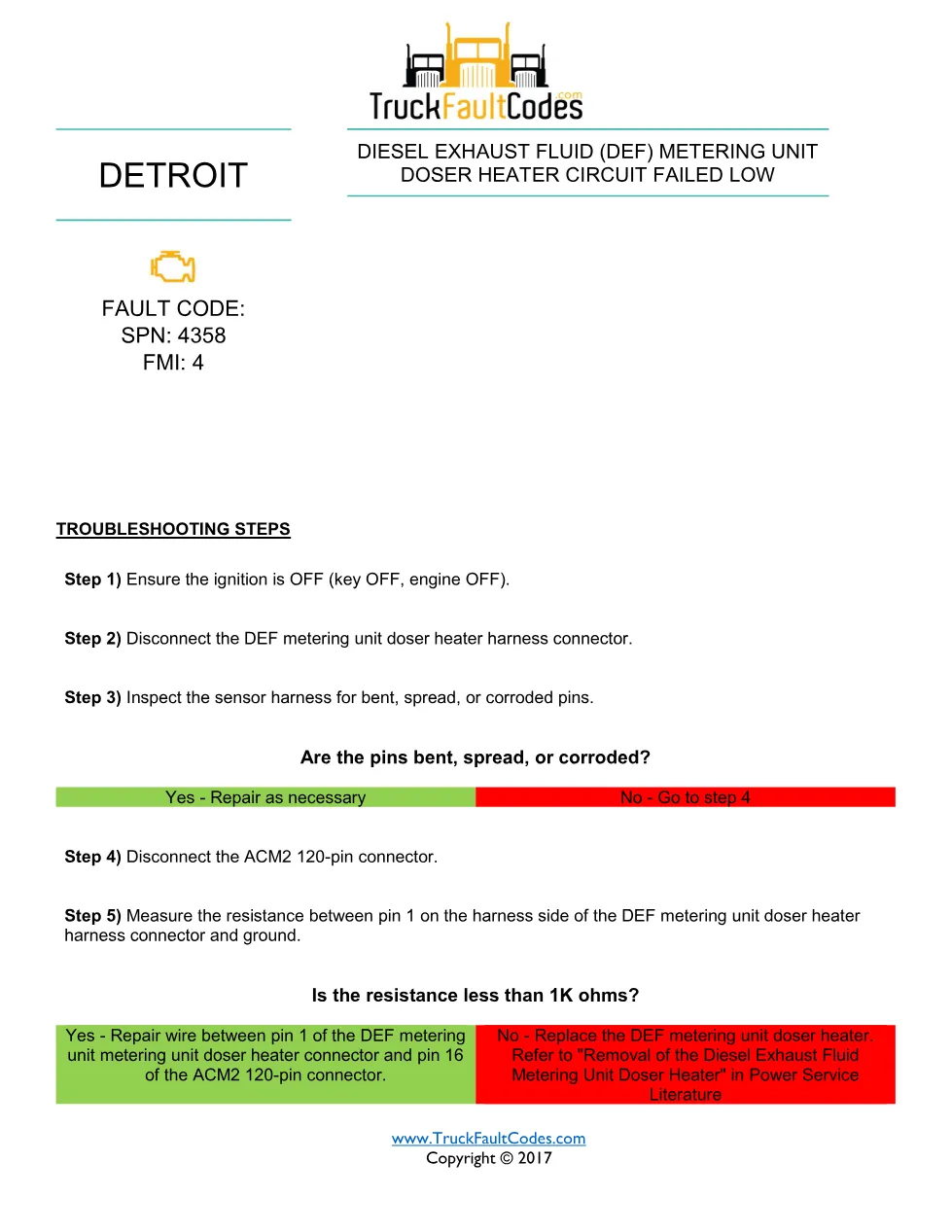

This one-page style reference documents Detroit fault code SPN 4358 FMI 4, the diesel exhaust fluid (DEF) metering unit doser heater circuit circuit failed low condition on DD Series (EPA 2007-current) aftertreatment systems. It walks the technician through inspecting the harness for bent, spread or corroded pins, disconnecting the ACM 120-pin connector, and measuring resistance to separate a wiring fault from a failed component. The procedure is sourced from the TruckFaultCodes.com Detroit fault-code library (© 2017) and mirrors the checks in Detroit Power Service Literature.
SPN 4358 FMI 4 document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-current) diesel engines |
| System / group | Diesel Exhaust Fluid (DEF) Metering Unit Doser Heater Circuit — DTCs |
| Diagnostic trouble code | 4358 / 4 (circuit failed low) |
| Source / revision | TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and affected system
- Fault description and dash-lamp reaction
- Step-by-step troubleshooting procedure
- Harness connector and terminal pin inspection
- Resistance measurement and short-circuit checks
- Wiring repair and component replacement guidance
Applicable truck models covered
This procedure applies to Detroit DD Series engines built to EPA 2007 and later emissions standards, and it is cross-referenced to Series 60 (DDEC VI, EPA 2007) applications that share the same ACM aftertreatment control module. This particular sheet documents the EPA10 calibration of code 4358 / 4. Diagnosis begins by connecting a diesel diagnostic tool and confirming the fault is active before any wiring is disturbed. For engine identification, emissions family and warranty coverage, consult the official Demand Detroit website.
