SPN 4193 FMI 17 is the Detroit diesel fault code documented in this coolant temperature sensor monitor troubleshooting guide for DD Series (EPA 2007-Current) engines. This 2-page PDF explains the monitored condition, the enabling parameters and the step-by-step checks a technician follows to confirm and repair the code. It is part of the Detroit DD Series diagnostic trouble code (DTC) library and follows the standard monitored-parameter, enabling-conditions and troubleshooting-step layout used across the Detroit fault-code set.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); cross-referenced for Series 60 (DDEC VI – EPA 2007) |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | FMI 17 under SPN 4193 — Coolant Temperature Sensor Monitor |
| Emissions level | GHG14 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
SPN 4193 FMI 17 troubleshooting steps

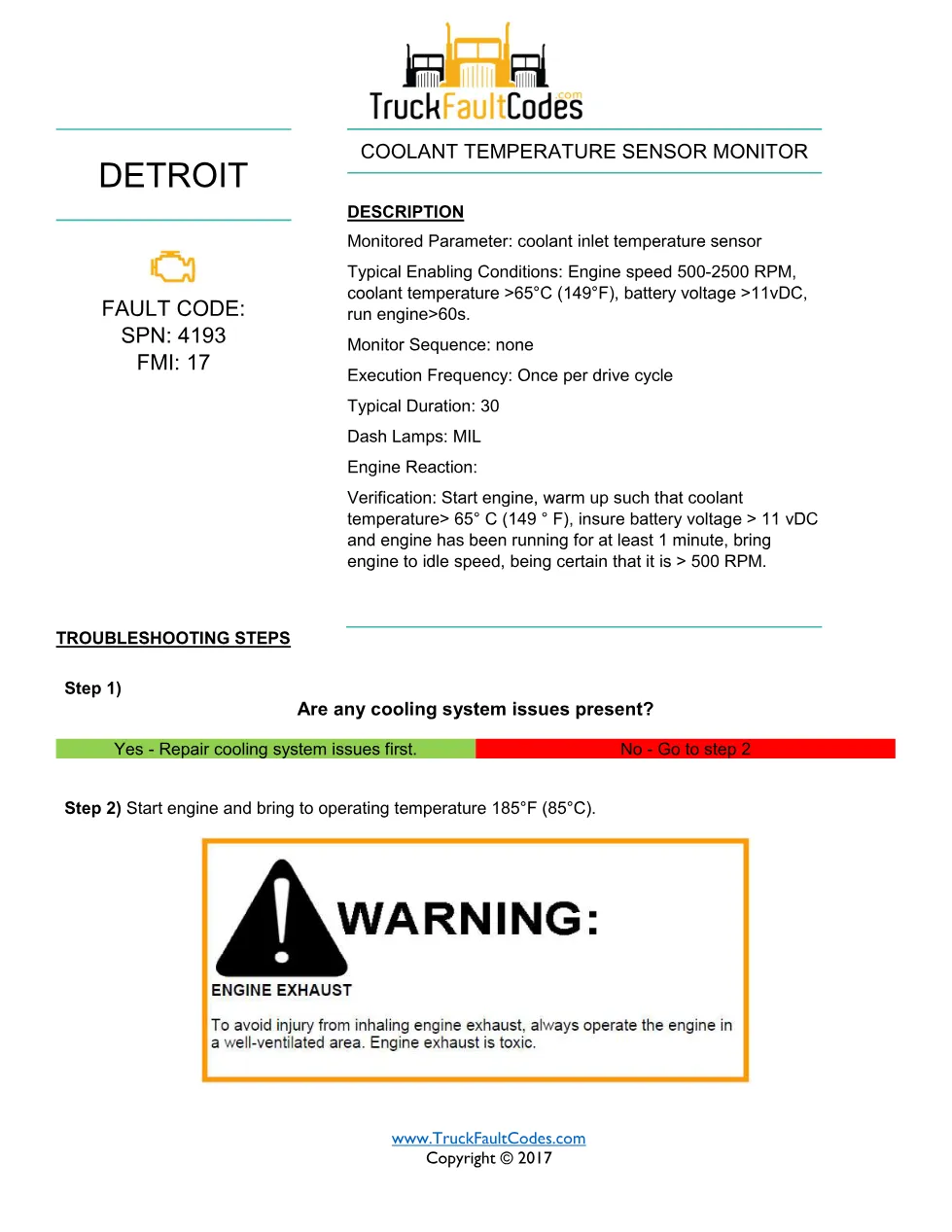

- Monitored parameter is the coolant inlet temperature sensor; enabling conditions are engine speed 500-2500 RPM, coolant temperature above 65°C (149°F), battery voltage above 11 VDC and the engine running for more than 60 seconds.
- Confirm no cooling-system issues are present, and repair any that are found before continuing.

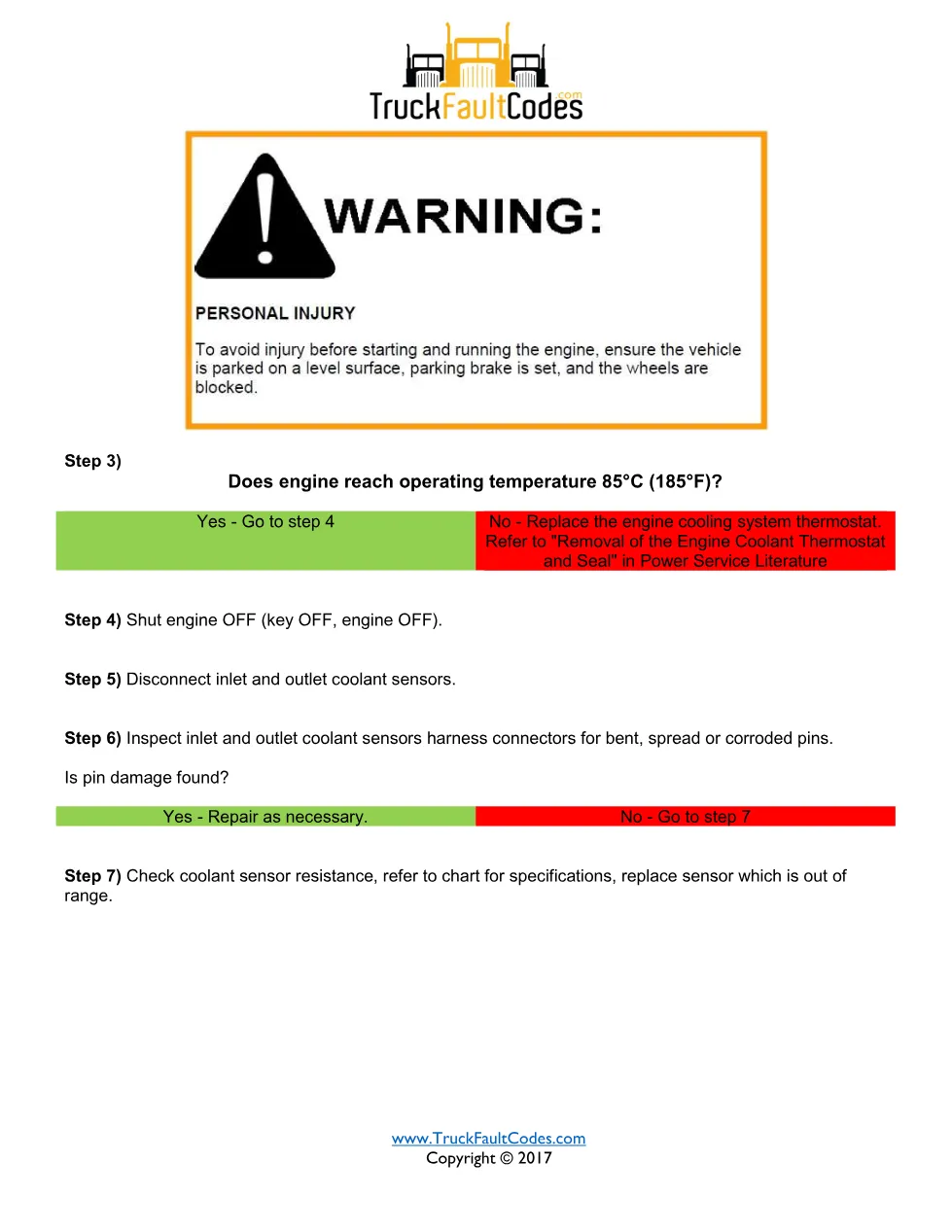

- Warm the engine to operating temperature 185°F (85°C); if it will not reach that temperature, replace the engine cooling-system thermostat per Power Service Literature.
- Shut the engine off, disconnect the inlet and outlet coolant sensors and inspect the harness connectors for bent, spread or corroded pins.
- Check coolant-sensor resistance against the specification chart and replace any sensor that reads out of range.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-Current) engines and covers the coolant inlet temperature sensor circuit. The procedure is published in Detroit Power Service Literature and drawn from the Detroit diesel fault-code set; always confirm the latest revision through the official Detroit engine support site.
Who needs this SPN 4193 FMI 17 manual
Fleet technicians and workshop owners use this guide to confirm a monitor-based coolant temperature fault and decide between a thermostat, a sensor or a wiring repair. Reading the full procedure before touching the harness keeps the diagnosis on the documented path and avoids replacing good parts.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download.
