SPN 4077 FMI 3 is the Detroit diesel fault code documented in this hydrocarbon doser flp sensor circuit failed high troubleshooting guide for DD Series (EPA 2007-Current) engines. This 2-page PDF explains the monitored condition, the enabling parameters and the step-by-step checks a technician follows to confirm and repair the code. It is part of the Detroit DD Series diagnostic trouble code (DTC) library and follows the standard monitored-parameter, enabling-conditions and troubleshooting-step layout used across the Detroit fault-code set.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); cross-referenced for Series 60 (DDEC VI – EPA 2007) |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | FMI 3 under SPN 4077 — Hydrocarbon Doser FLP Sensor Circuit Failed High |
| Emissions level | All years |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |

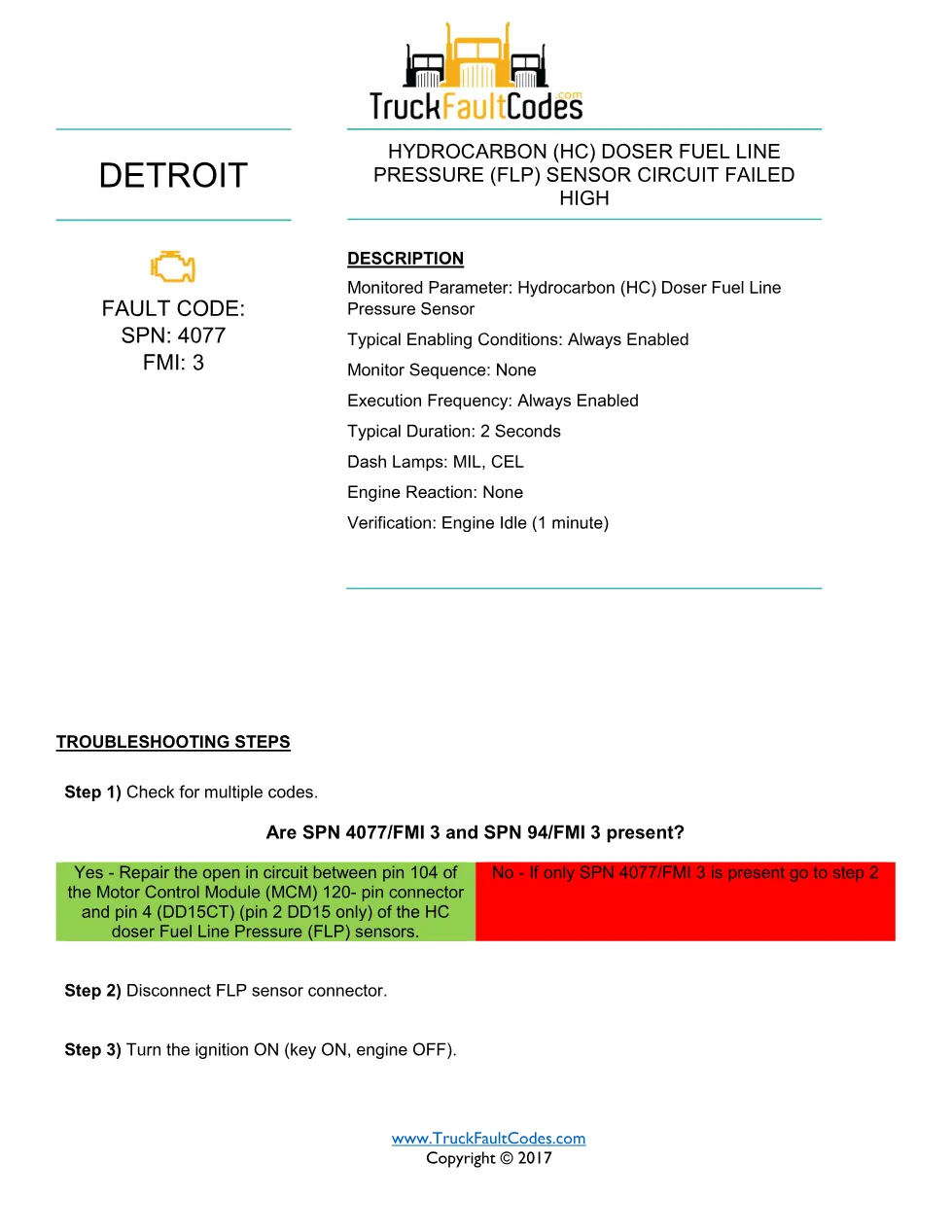

SPN 4077 FMI 3 troubleshooting steps
- The fuel line pressure (FLP) sensor monitor is always enabled with a 2-second duration and lights the MIL and CEL.
- Check for companion codes; a paired fuel-pressure code points to an open between MCM 120-pin connector pin 104 and the FLP sensor supply.

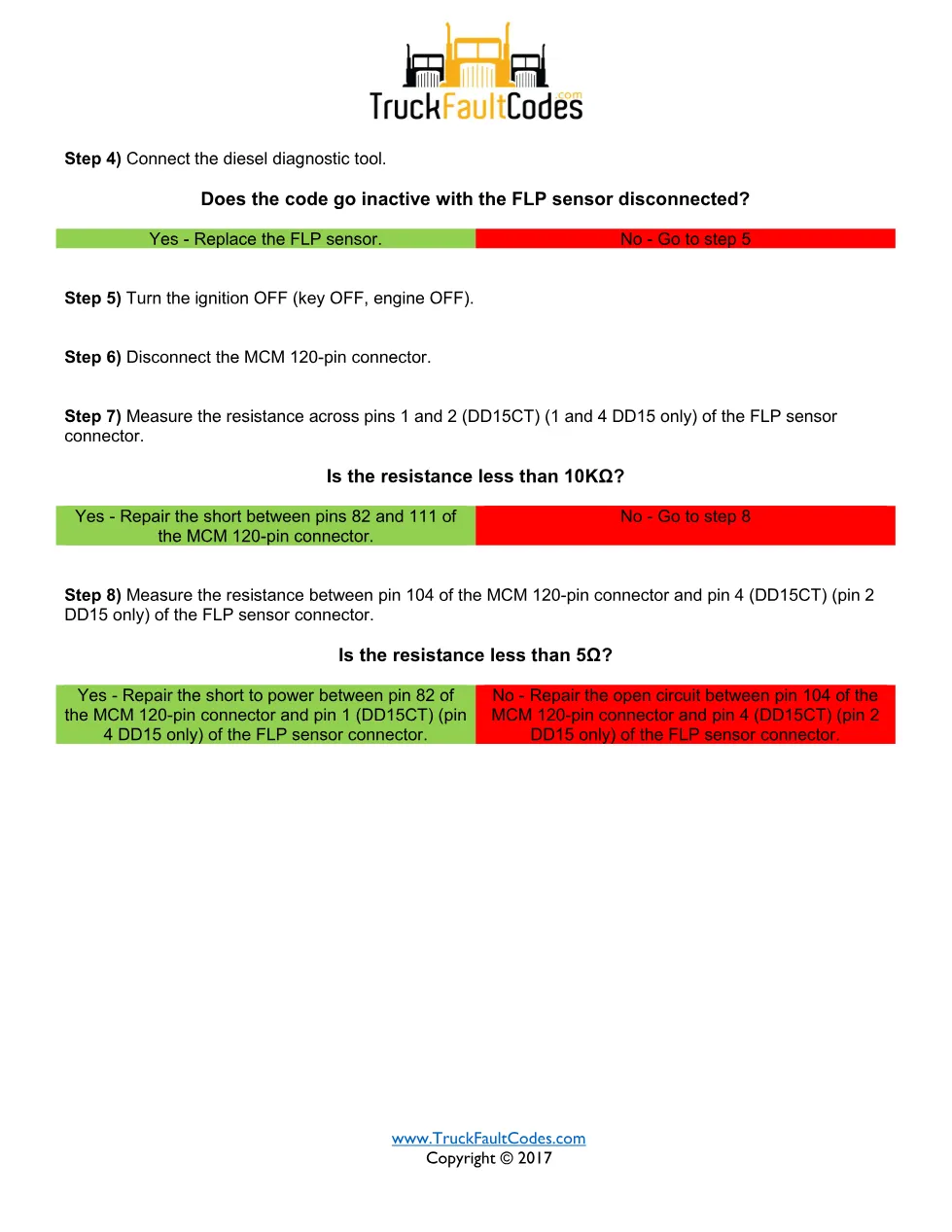

- Disconnect the FLP sensor, turn the ignition on and connect the diesel diagnostic tool; if the code goes inactive, replace the FLP sensor.
- Measure resistance across the FLP sensor connector pins to locate a short between MCM pins 82 and 111.
- Measure between MCM pin 104 and the sensor signal pin to find a short to power, or repair the open circuit to the sensor.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-Current) engines and covers the hydrocarbon doser FLP sensor circuit and its MCM wiring. The procedure is published in Detroit Power Service Literature and drawn from the Detroit diesel fault-code set; always confirm the latest revision through the official Detroit engine support site.
Who needs this SPN 4077 FMI 3 manual
Fleet technicians and workshop owners use this guide to trace a circuit-high FLP sensor fault to a short to power, a short between pins or an open circuit. Reading the full procedure before touching the harness keeps the diagnosis on the documented path and avoids replacing good parts.
