SPN 3853 FMI 3 is a Detroit fault code that flags a open circuit (failed high) on pin 12 of the Common Powertrain Controller (CPC4) #2 connector. This single-page PDF from the Detroit DD Series (EPA 2007-Current) DTC library states the exact fault definition and the six-step routine a technician runs with a diesel diagnostic tool. The source page is published by TruckFaultCodes.com (Copyright © 2017).
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI – EPA 2007) |
| System / Group | CPC4 digital input – DTCs |
| SPN | 3853 |
| FMI | 3 |
| Platform label | GHG14 |
| Source | TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| File size | 0.22 MB |
| Format / Language | PDF / English |
What SPN 3853 FMI 3 means

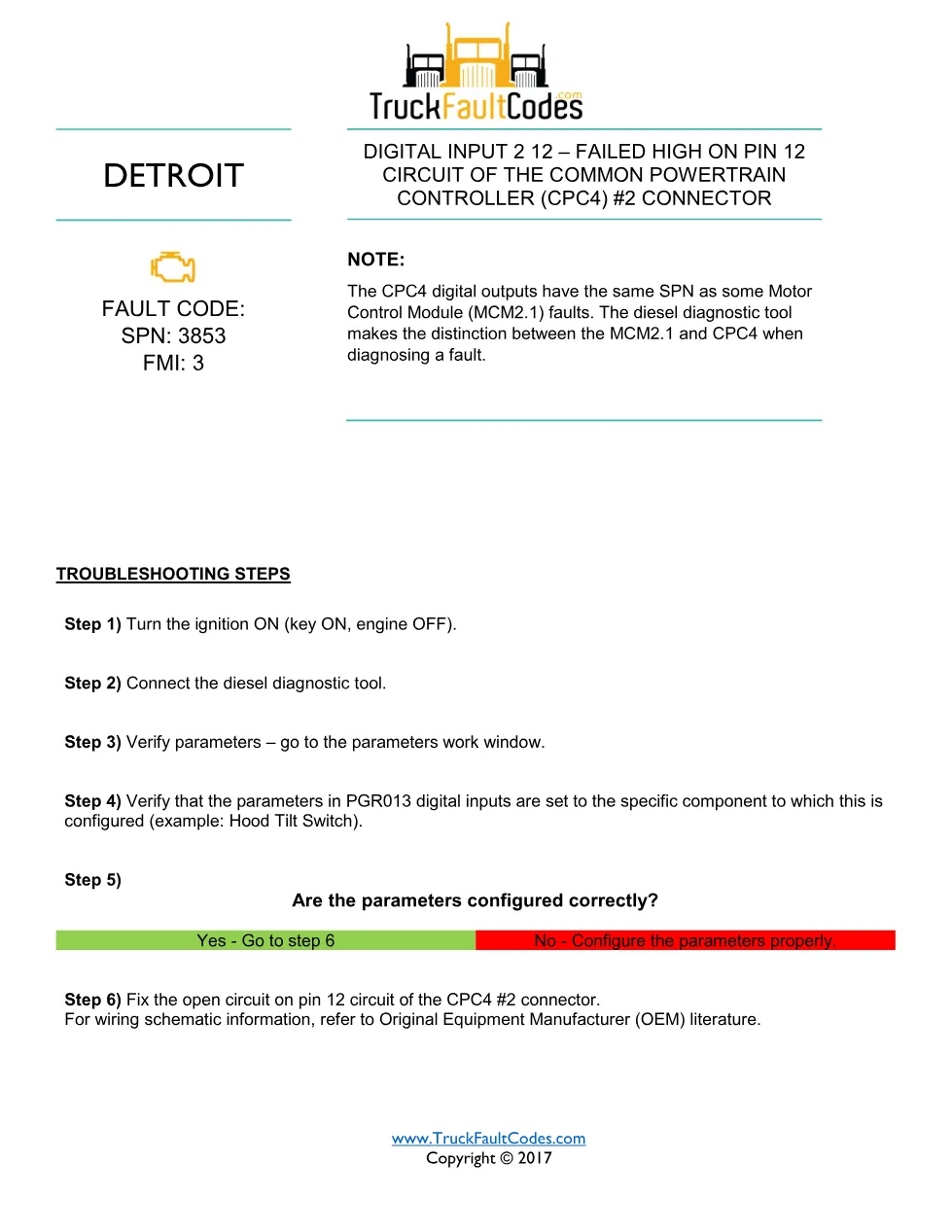

The document defines the fault as “Digital Input 2 12 – Failed High on Pin 12 circuit of the Common Powertrain Controller (CPC4) #2 connector”. On this GHG14 platform the CPC4 digital outputs share the same SPN as some Motor Control Module (MCM2.1) faults, so the diesel diagnostic tool distinguishes between the MCM2.1 and the CPC4 when it reads the code. Confirming which controller reported the fault is the first thing the manual asks you to establish.
Troubleshooting steps at a glance
- Turn the ignition ON (key ON, engine OFF).
- Connect the diesel diagnostic tool.
- Open the parameters work window and verify parameters.
- Verify that the parameters in PGR013 digital inputs are set to the specific component configured (example: Hood Tilt Switch).
- If the parameters are not configured correctly, configure them properly before continuing.
- Fix the open circuit on pin 12 of the CPC4 #2 connector; for wiring schematic information, refer to Original Equipment Manufacturer (OEM) literature.
Applicable Detroit engine platforms
Per the document metadata this fault code applies to the DD Series (EPA 2007-Current); Series 60 (DDEC VI – EPA 2007) powertrains built on the GHG14 emissions platform. Because pin-out and wiring detail live in the OEM chassis literature rather than in this sheet, pair it with the vehicle builder’s schematic before repair. Full model, warranty, and service confirmation should be checked against Detroit official service resources.
Who needs this SPN 3853 FMI 3 code
Heavy-duty diesel technicians and workshop owners chasing a CPC4 digital input fault will use this sheet to confirm the definition and follow the verified steps. The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
