SPN 3840 FMI 3 is a Detroit DD Series diagnostic trouble code (DTC) that reports that the frequency output on pin 15 of the Common Powertrain Controller (CPC4) #4 connector has failed high, typically because of an open circuit on that pin. This library entry summarizes the official one-page GHG14 fault-code sheet published on TruckFaultCodes.com (Copyright © 2017) so technicians can confirm the meaning of the code before opening the full PDF.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD13, DD15, DD16 and Series 60 (DDEC VI) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication | TruckFaultCodes.com fault-code sheet, © 2017 |
| Year / Revision | 2017 |
| Pages | 1 |
| File size | 0.22 MB |
| Format | |
| Language | English |

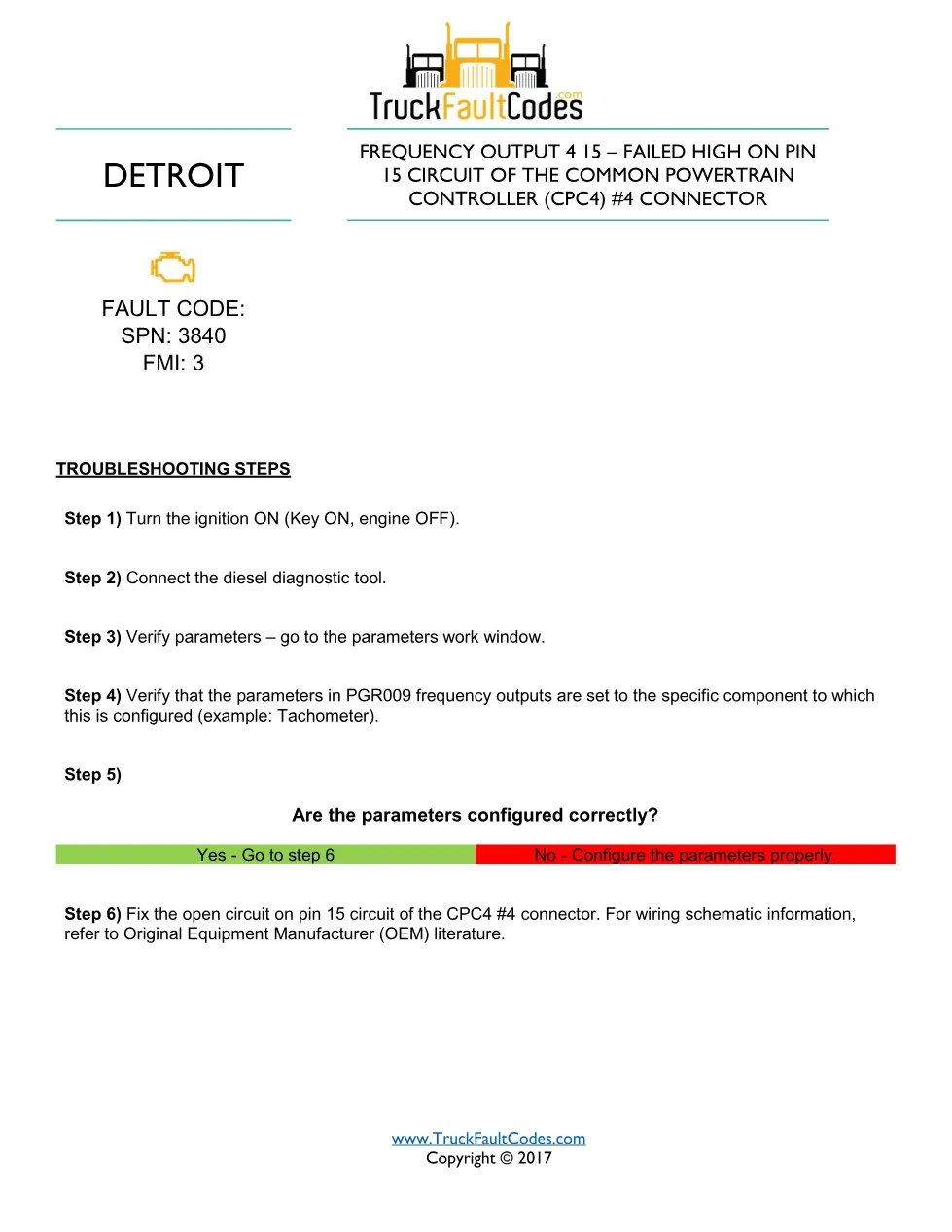

SPN 3840 FMI 3 description and steps
The SPN 3840 FMI 3 sheet describes the fault as “Frequency Output 4 (Pin 15) Failed High on the CPC4 #4 Connector” and lays out the diagnostic path Detroit expects a technician to follow. Key points from the document:
- Turn the ignition ON (key ON, engine OFF) and connect the diesel diagnostic tool.
- Open the parameters work window and verify the PGR009 frequency-output parameters are set to the configured component, for example a tachometer.
- Configure the parameters properly if they are not correct.
- Repair the open circuit on pin 15 of the CPC4 #4 connector, using Original Equipment Manufacturer (OEM) wiring schematics.
Applicable truck models
This fault-code sheet applies to Detroit DD Series engines (DD13, DD15 and DD16) built to EPA 2007 and later emissions standards, and to Series 60 engines with DDEC VI (EPA 2007). Coverage and calibration always depend on the specific chassis and engine build, so verify applicability against the vehicle before servicing. For engine specifications and warranty details, see the Detroit Diesel official website.
Who needs this SPN 3840 FMI 3 manual
Fleet technicians, mobile diesel mechanics and workshop owners use this sheet to diagnose a frequency output that has failed high on pin 15 of the CPC4 #4 connector quickly and to avoid replacing parts on guesswork. Keeping the exact Detroit procedure on hand shortens diagnostic time and supports a clean repair record.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
