SPN 3664 FMI 14 is the Detroit DD Series fault code for the cylinder #6 fuel injector amplifier control valve, and this six-page guide walks a technician through the diagnostic sequence. Sourced from TruckFaultCodes.com and built around Detroit Diesel Power Service Literature, it covers connector inspection, resistance measurements and Motor Control Module (MCM) checks. The EPA07 document applies to DD-series engines and to Series 60 (DDEC VI) platforms from EPA 2007 onward.
What SPN 3664 FMI 14 means
Under FMI 14, this EPA07 document reports the cylinder #6 fuel injector amplifier control valve as abnormal operation flagged under special instructions. The procedure has the technician first check for related codes SPN 168 or SPN 723, then work through connector inspection, resistance measurements and Motor Control Module verification before any part is replaced.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI – EPA 2007) |
| System / Group | DTCs — fuel injector amplifier control valve |
| Fault code | SPN 3664 / FMI 14 (EPA07) |
| Source | TruckFaultCodes.com (© 2017) |
| Pages | 6 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Troubleshooting steps covered

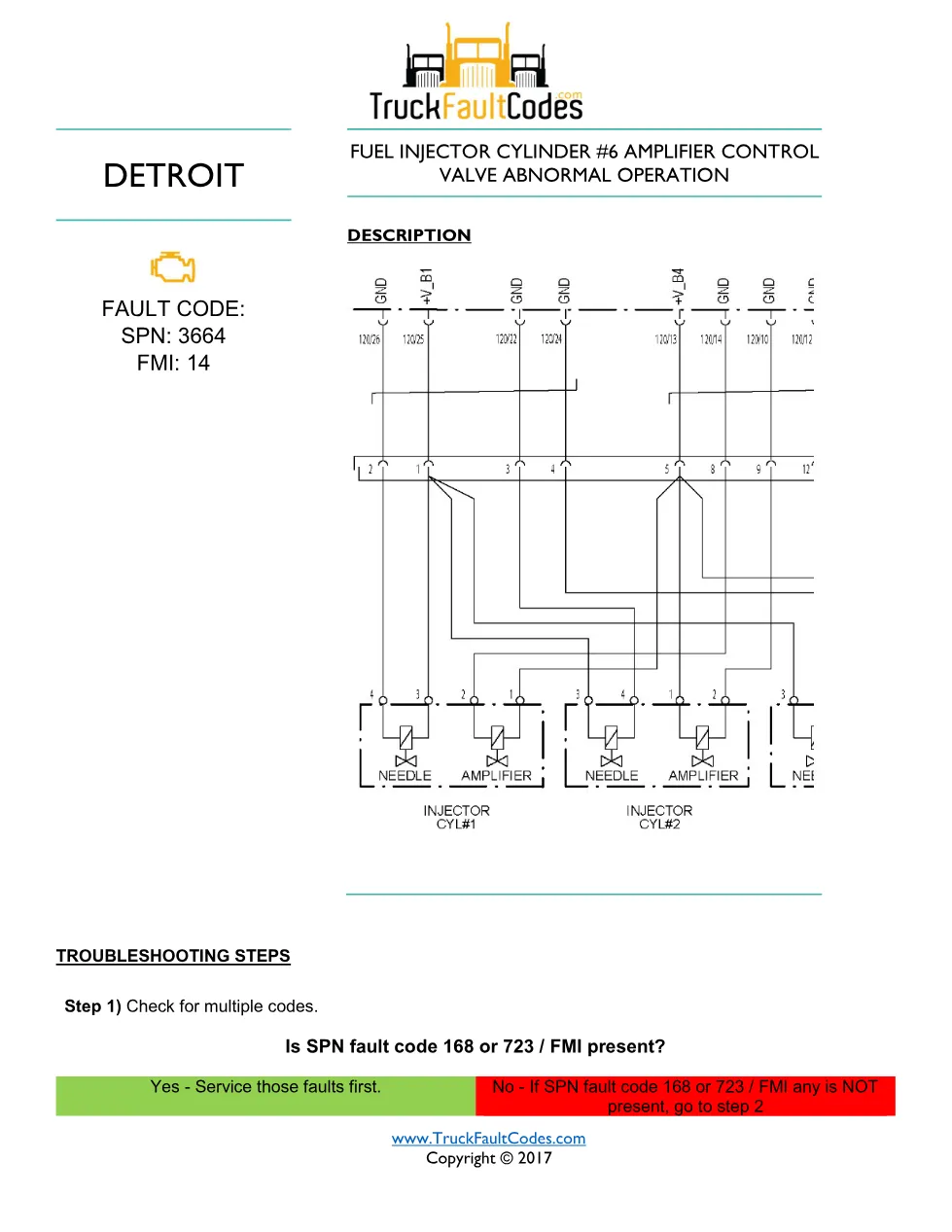

- Check for multiple codes (SPN 168 or SPN 723) and service those first

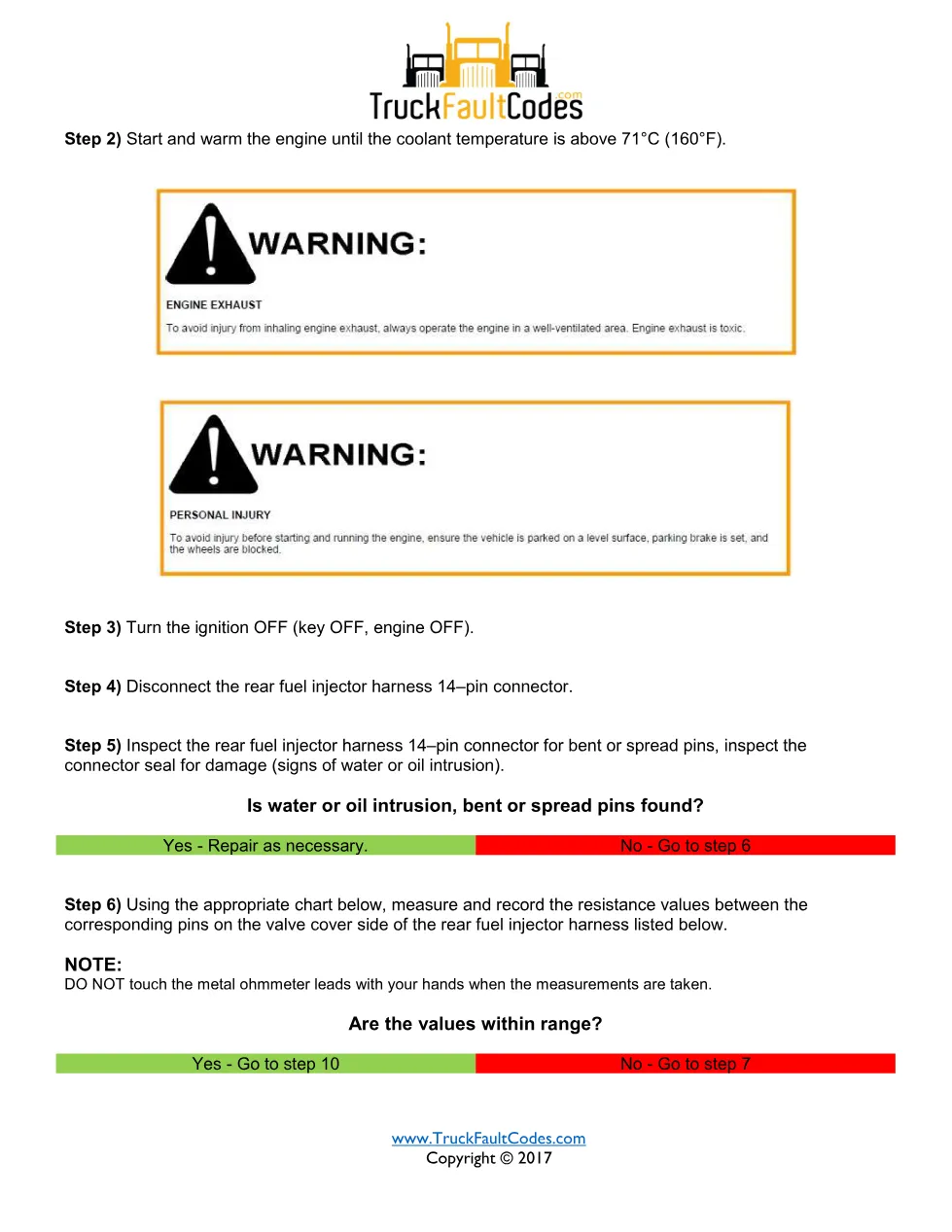

- Start and warm the engine above 71°C (160°F)
- Inspect the rear fuel injector harness 14-pin connector for bent pins and water or oil intrusion

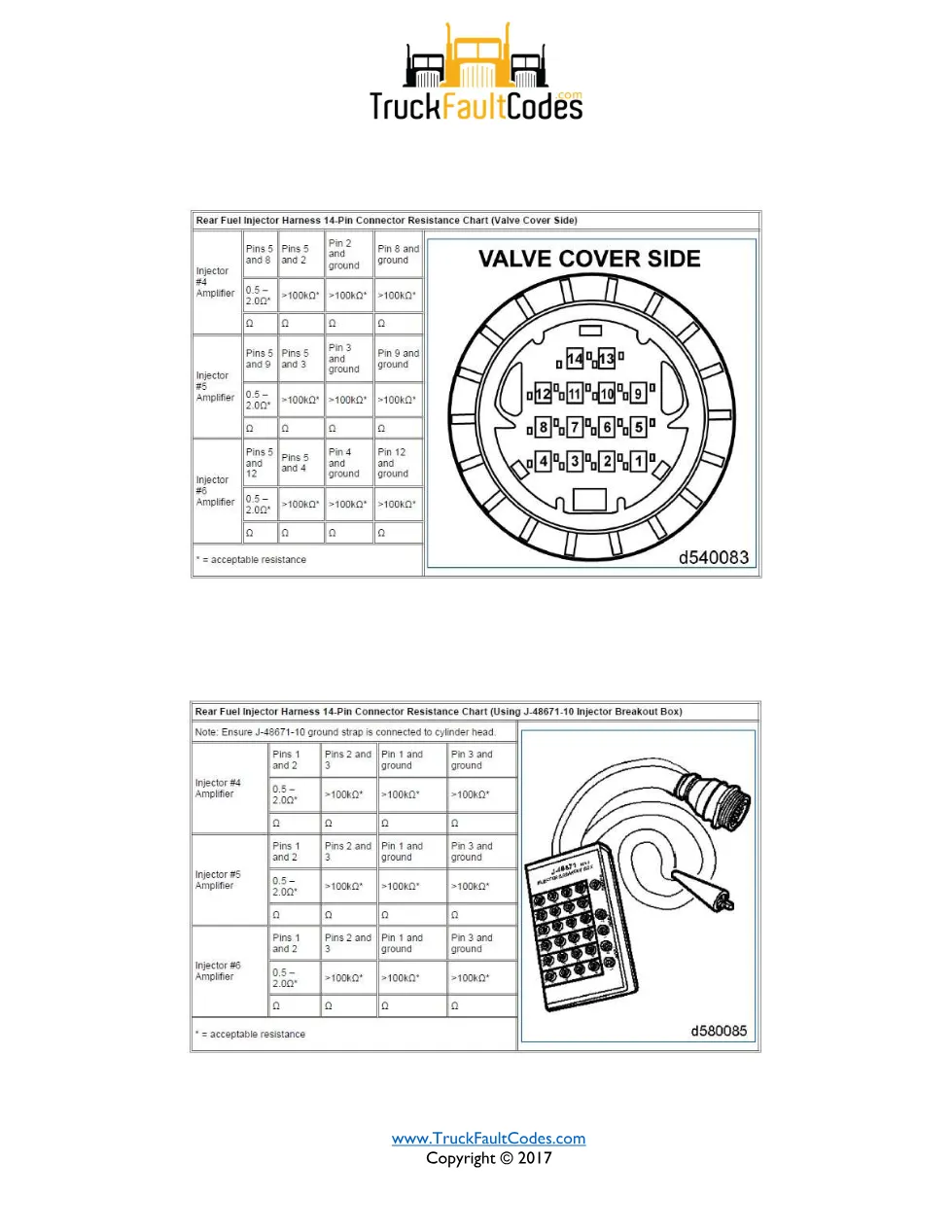

- Measure and record resistance on the valve-cover side of the injector harness
- Remove the rocker cover and rear injector harness, then measure injector pin resistance
- Check the engine-side harness to the MCM 120-pin connector
- Install a test MCM and confirm whether the fault stays active
Applicable Detroit engines
This guide applies to Detroit DD-series engines and Series 60 (DDEC VI) units meeting EPA 2007 (EPA07) emissions rules. Removal steps for the two-piece fuel injector wiring harness, the injector and the MCM reference Detroit Diesel Power Service Literature. For OEM powertrain data and dealer support, see the official Detroit powertrain website.
Who needs this SPN 3664 FMI 14 guide
Diesel technicians, fleet maintenance teams and workshop owners diagnosing a cylinder #6 injector fault on a Detroit DD engine use this guide to confirm whether the fuel injector harness, the injector or the Motor Control Module is at fault before replacing a part.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
