SPN 3609 FMI 8 is the Detroit DD Series diagnostic trouble code stored when the Motor Control Module detects an impossible temperature shift on the DPF outlet temperature sensor. This manual page reproduces the official Detroit troubleshooting sequence, notes that the most likely cause is an intermittent wiring problem, and directs the technician to service related codes first. It is written for workshops running the Detroit Diesel Diagnostic Link.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-Current) and Series 60 (DDEC VI – EPA 2007) |
| System / Group | DTCs / diagnostic trouble codes |
| Emission platform | EPA07 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |

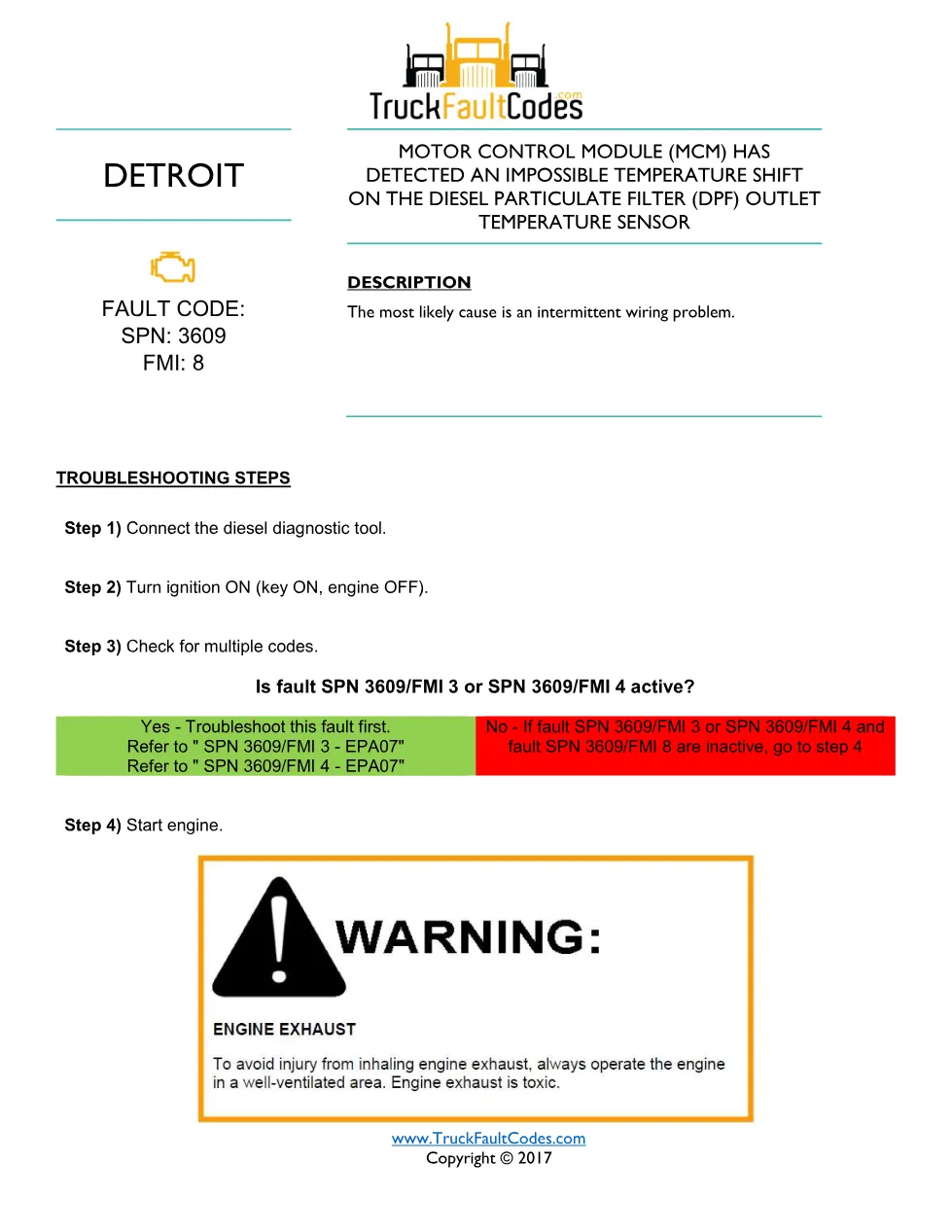

What the SPN 3609 FMI 8 manual covers
The procedure in this manual walks through the following checks:
- Fault description: an impossible temperature shift detected by the MCM
- Most likely cause noted in the document: intermittent wiring
- Check for related codes SPN 3609/FMI 3 and SPN 3609/FMI 4
- Connecting the diesel diagnostic tool and reading fault status

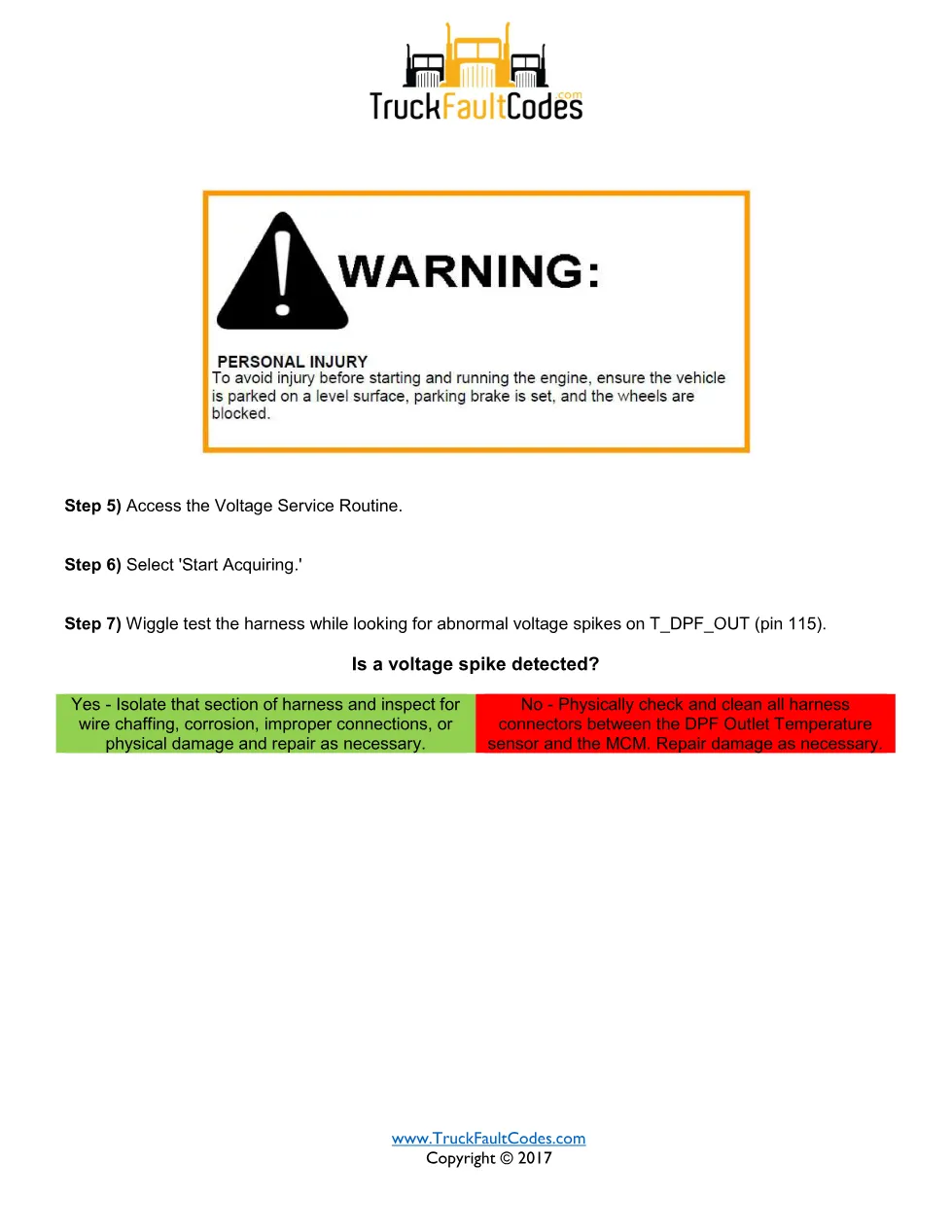

- DPF outlet temperature sensor circuit and harness checks
Applicable Detroit truck models
The procedure applies to Detroit DD Series engines on the EPA 2007-Current platform and to Series 60 engines with DDEC VI, as listed in the source document. Diagnosis begins by checking for active SPN 3609/FMI 3 and SPN 3609/FMI 4 codes and then inspecting the DPF outlet temperature sensor circuit, as referenced in Detroit Power Service Literature. For engine data and bulletins, consult the official Detroit Diesel support site.
Who needs this SPN 3609 FMI 8 guide
Diesel technicians on a Detroit DD Series engine need this 3609 FMI 8 manual because an impossible temperature shift usually points to intermittent wiring; the guide shows which related codes to clear first so the real harness fault is not missed.
