This SPN 3603 FMI 9 document is a Detroit DD Series fault-code procedure for a missing J1939 ESS message across all model years. It walks the technician through battery-voltage codes, the Controller Area Network line, and CPC configuration.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3603 |
| FMI | 9 |
| Condition | J1939 ESS message is missing |
| Emissions level | all model years |
| Source | Detroit Power Service Literature |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |

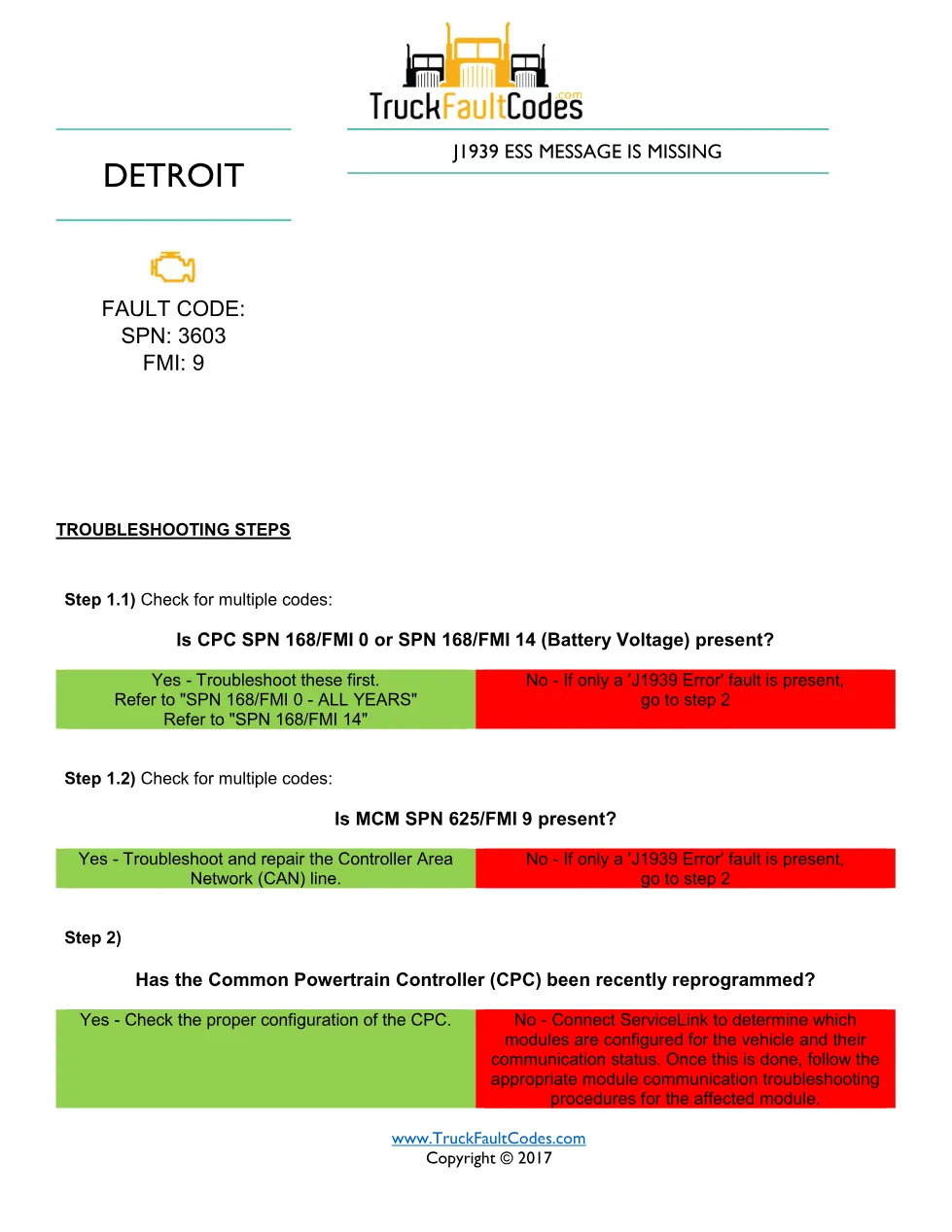

SPN 3603 FMI 9 troubleshooting steps
The procedure checks first for CPC battery-voltage codes SPN 168/FMI 0 or SPN 168/FMI 14, then for MCM SPN 625/FMI 9, which indicates a Controller Area Network fault to repair. When only a J1939 error is stored, it asks whether the Common Powertrain Controller was recently reprogrammed, then confirms its configuration or uses ServiceLink to identify which modules are configured and their communication status.
- Fault description: J1939 ESS message is missing
- Step 1.1 – Check for battery-voltage codes (SPN 168/FMI 0 or 14)
- Step 1.2 – Check for MCM SPN 625/FMI 9 CAN line fault
- Step 2 – Confirm CPC configuration after reprogramming
- ServiceLink review of module communication status
Applicable truck models
This fault code applies to Detroit DD Series diesel engines of all model years that rely on a Common Powertrain Controller and the J1939 vehicle network. Configuration is verified with ServiceLink; compare the module list against Detroit resources on the official Detroit Diesel website.
Who needs this SPN 3603 FMI 9 manual
Diesel technicians and workshop owners who face a dropped ESS message on any Detroit DD Series truck use this document to rule out battery-voltage and network faults before reconfiguring or replacing a controller. Following the order of checks avoids the common mistake of chasing a network wire when a low battery-voltage code is the true root cause of the missing message.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download.
