This SPN 3563 FMI 18 document is a Detroit DD Series fault-code procedure for an inlet manifold pressure low reading across all model years. It starts at the air intake system and works through the manifold pressure/temperature sensor.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3563 |
| FMI | 18 |
| Condition | inlet manifold pressure low |
| Emissions level | all model years |
| Source | Detroit Power Service Literature |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
SPN 3563 FMI 18 troubleshooting steps

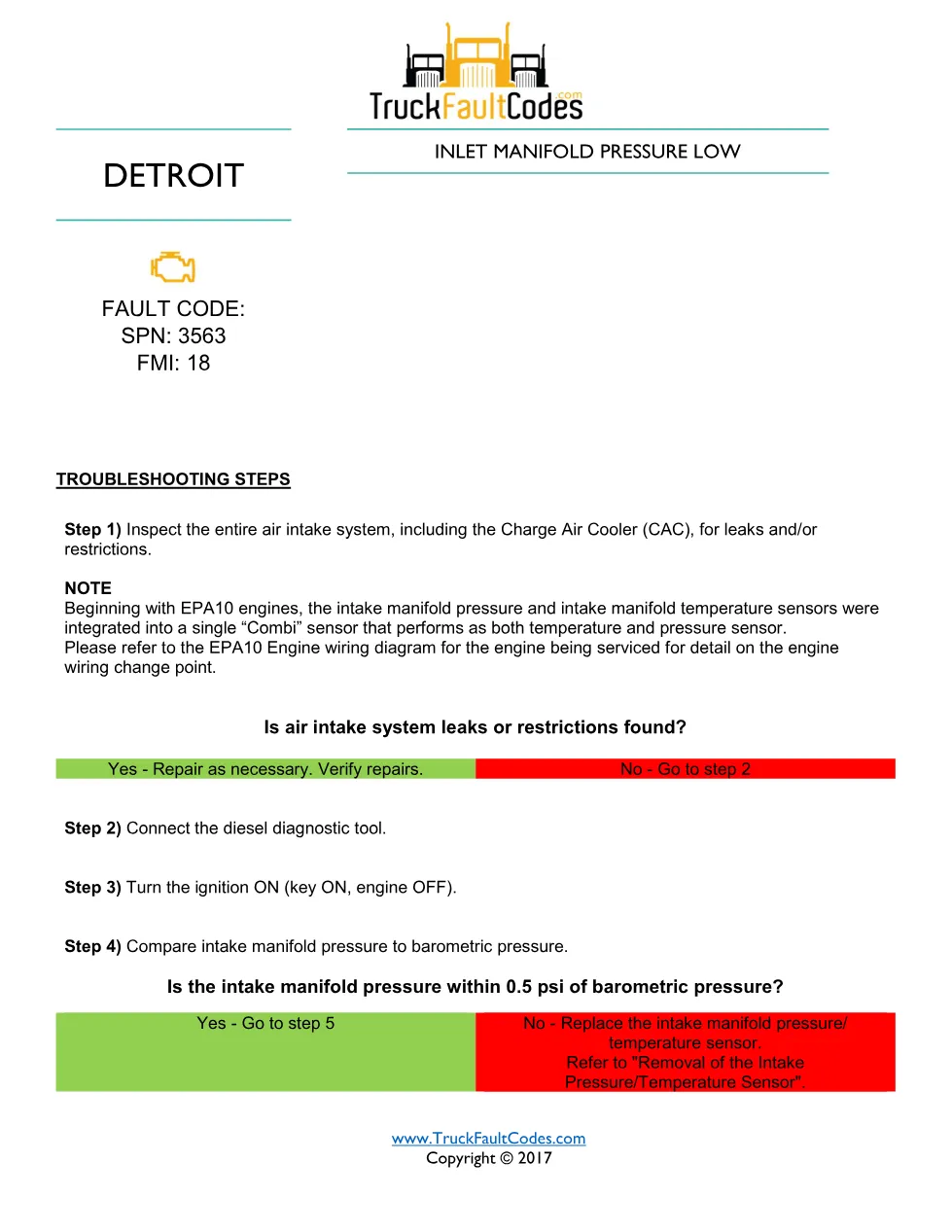

The routine first inspects the entire air intake system, including the Charge Air Cooler, for leaks or restrictions. A note explains that EPA10 engines combine the pressure and temperature functions into a single Combi sensor, so the correct wiring diagram must be used. With the diesel diagnostic tool connected you compare manifold pressure to barometric pressure, then inspect the connector pins before replacing the sensor.
- Fault description: inlet manifold pressure low
- Step 1 – Inspect the air intake system and Charge Air Cooler
- Note on the EPA10 Combi sensor and wiring diagram
- Steps 2 to 4 – Compare manifold to barometric pressure

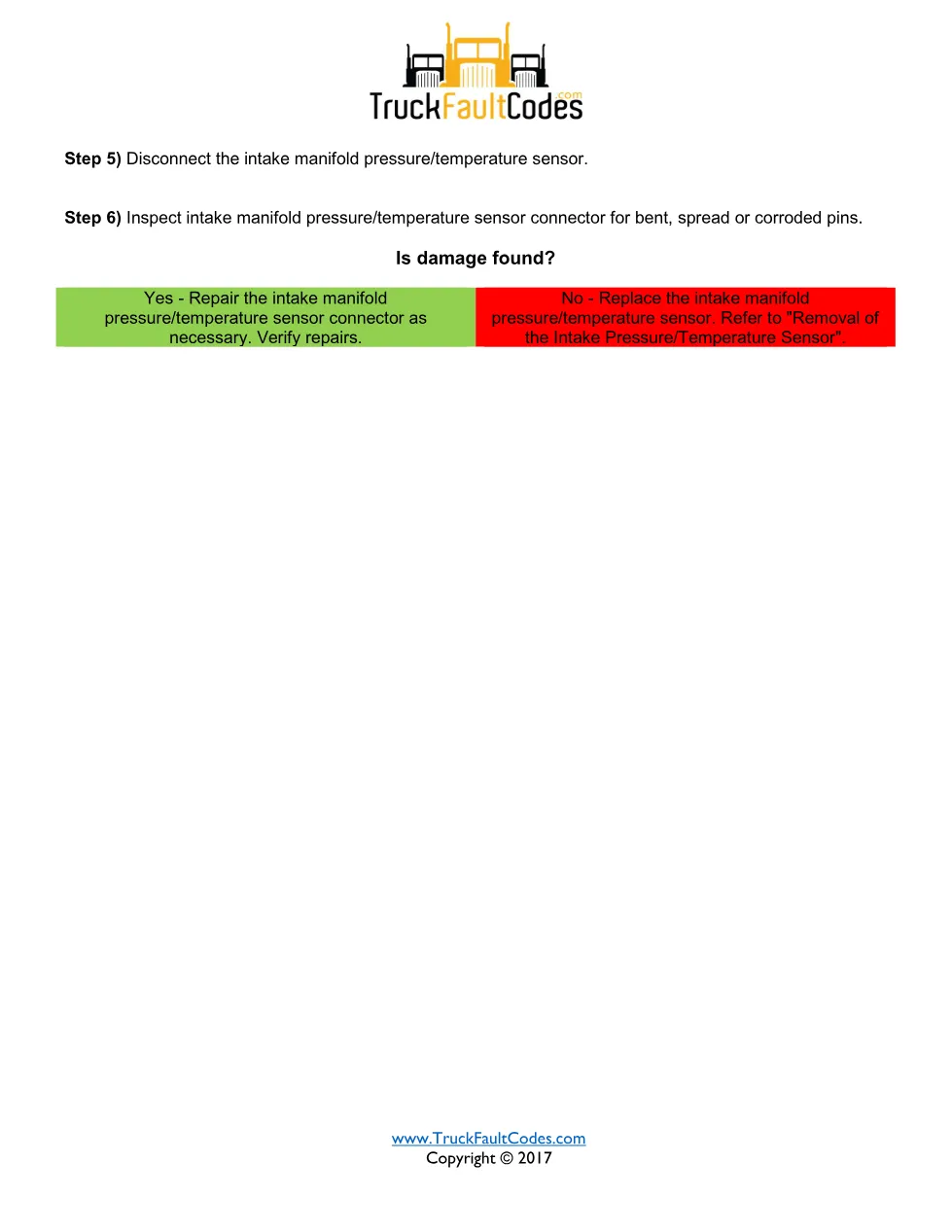

- Steps 5 to 6 – Inspect connector pins and replace sensor
Applicable truck models
This fault code applies to Detroit DD Series diesel engines of all model years, with EPA10 engines using an integrated Combi pressure and temperature sensor. Sensor removal references Detroit Power Service Literature; confirm the wiring change point on the official Detroit Diesel website.
Who needs this SPN 3563 FMI 18 manual
Diesel technicians and workshop owners tracing a low-boost reading on a Detroit engine use this document to rule out intake leaks and restrictions before condemning the manifold pressure/temperature sensor. Starting at the air intake system first often reveals a loose clamp or split boot, which is far cheaper to repair than replacing the sensor.
