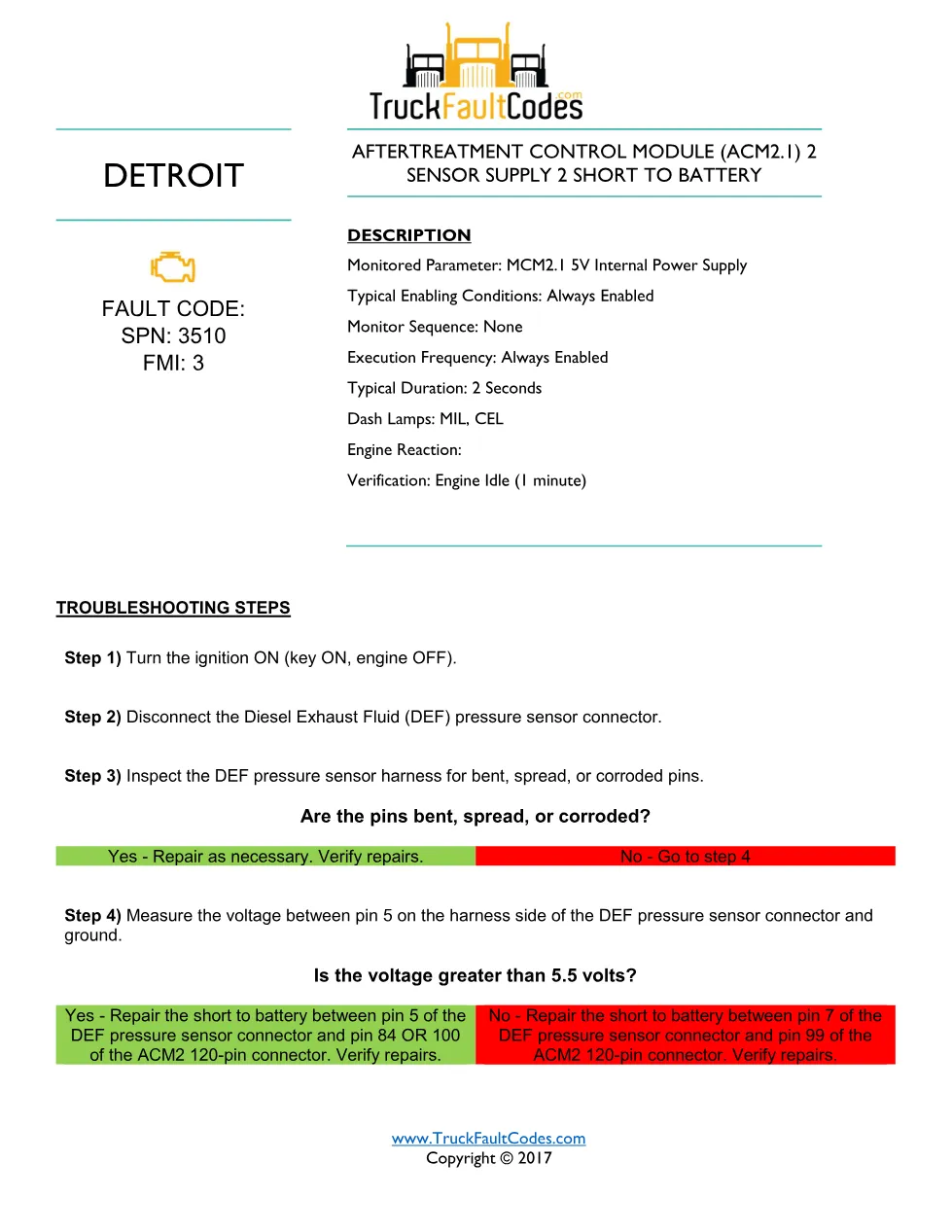

SPN 3510 FMI 3 is documented in this Detroit DD Series fault code reference PDF, which covers the ACM2.1 Sensor Supply 2 Short To Battery condition on Detroit engines. The 1-page document lists the fault description, the step-by-step troubleshooting sequence and the connector measurements a technician uses to confirm the repair.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-Current) GHG14 engines using the ACM2.1 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Diagnostic code | FMI 3 / SPN 3510 |
| Year / revision | Source dated 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN 3510, FMI 3
- ACM2.1 sensor supply 2 short to battery
- Monitored parameter and dash lamps
- DEF pressure sensor harness inspection
- Voltage measurement and ACM2 pin checks
- Harness repair and verification
Applicable truck models and engines
This fault code applies to Detroit DD Series (EPA 2007-Current) GHG14 engines using the ACM2.1, and the DiagTechPro library also files it under the Series 60 (DDEC VI, EPA 2007) DTC set. The diagnostic references the Aftertreatment Control Module (ACM2.1) used on these Detroit powertrains. See the manufacturer’s Detroit official website for current engine specifications and dealer support.
SPN 3510 FMI 3 troubleshooting overview
The monitored parameter is the ACM2.1 5V internal power supply. With the ignition on and engine off, the technician disconnects the Diesel Exhaust Fluid (DEF) pressure sensor connector and inspects its harness for bent, spread or corroded pins. Voltage from pin 5 on the harness side to ground is then measured; a reading above 5.5 volts indicates a short to battery back to pin 84 or 100 of the ACM2 120-pin connector, while a lower reading points to a short at pin 7 back to pin 99.
Who needs this SPN 3510 FMI 3 manual
Detroit-certified technicians, independent truck repair shops and fleet maintenance teams will use this reference to follow the factory diagnostic sequence with a diesel diagnostic tool before replacing any control module or sensor.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, alongside the related Detroit Power Service Literature.
