SPN 2623 FMI 4 is the Detroit DD-Series diagnostic fault code document for the PWM accelerator pedal J1939 GAS2 signal is missing event, published on TruckFaultCodes.com (copyright 2017) and archived as a 1-page PDF in the DiagTechPro library. The document covers a missing J1939 GAS2 accelerator pedal signal, beginning with checks for related battery-voltage and CAN-line faults before the pedal or its configuration is suspected.
SPN 2623 FMI 4 document details
| Brand | Detroit |
| Model coverage | Detroit DD-Series (DD13, DD15 and DD16), EPA 2007 and later |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Fault code (SPN) | 2623 |
| Failure mode (FMI) | 4 |
| Emissions calibration | All model years |
| Source | TruckFaultCodes.com (copyright 2017) |
| Pages | 1 |
| File size | 0.23 MB |
| Format | |
| Language | English |
The page records the official identifiers so a technician can confirm the exact code and calibration against the diesel diagnostic tool before starting any repair.
Document table of contents
- Fault code identification (SPN 2623 / FMI 4)
- GAS2 signal missing description
- Step 1 – Check for multiple codes (SPN 168, SPN 625/FMI 9)
- Controller Area Network (CAN) line repair
- Step 2 – CPC reprogramming check
- ServiceLink module configuration

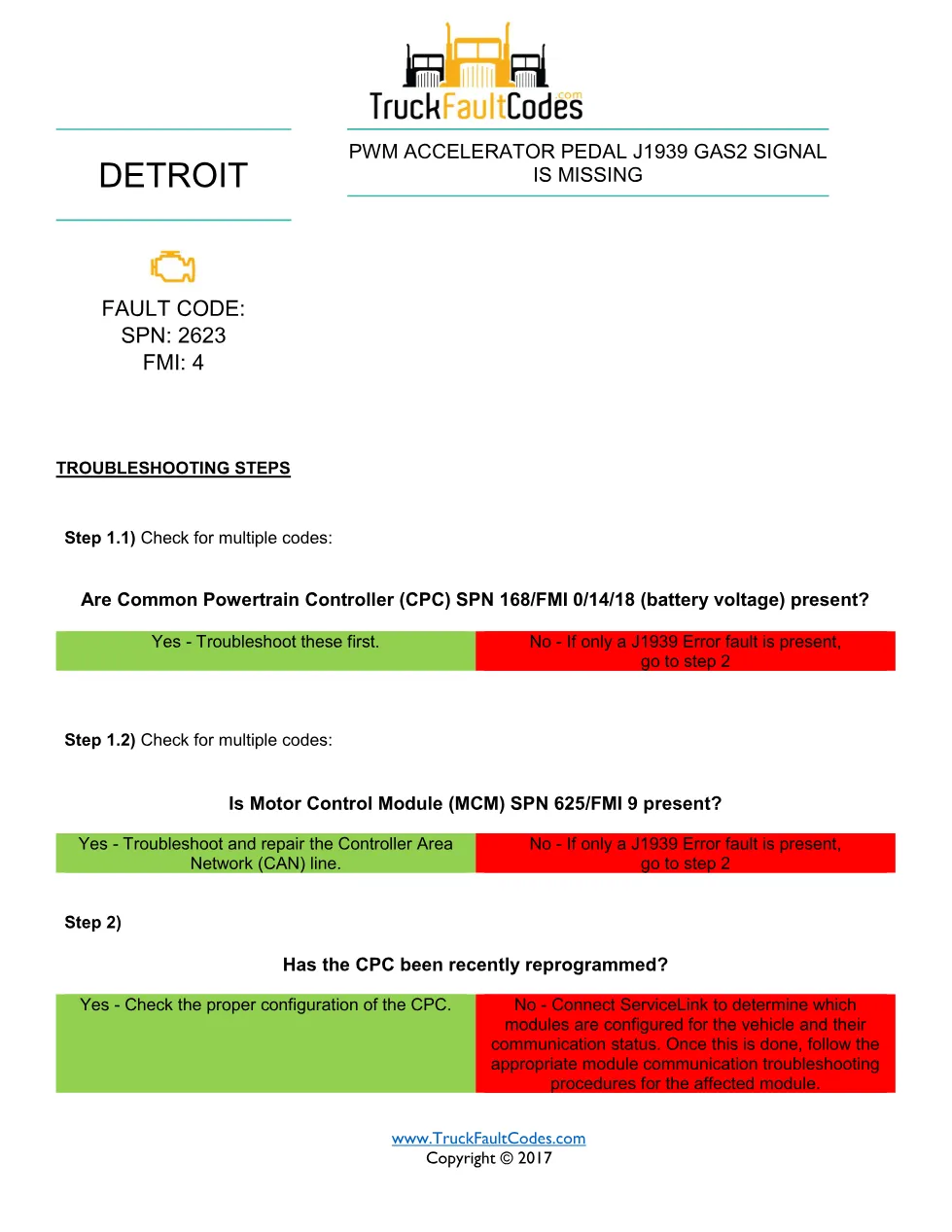

The procedure first checks for multiple codes: Common Powertrain Controller battery-voltage faults on SPN 168, and Motor Control Module SPN 625/FMI 9, which indicates a Controller Area Network line problem to repair first. If only the J1939 error remains, the technician confirms whether the CPC has been recently reprogrammed and verifies its configuration. When the configuration is correct, ServiceLink is connected to determine which modules are configured for the vehicle and their communication status, guiding the correct module troubleshooting path.
