SPN 1663 FMI 7 is the Detroit DD-series code for an Optimized Idle safety loop that has faulted, and this sheet shows how to set up the diagnostic log and where the fault usually leads. It ends at the Vehicle Speed Sensor when nothing else is found.
Official document details
| Brand | Detroit |
| Model coverage | DD13, DD15, DD16 (EPA 2007-current) |
| System / group | Optimized Idle — safety loop |
| Fault code | SPN 1663 / FMI 7 |
| Publication no. | Not printed on sheet |
| Year / revision | Reference dated 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault header: SPN 1663 / FMI 7 — Optimized Idle safety loop faulted
- Note — add the J1939 connection when logging Optimized Idle issues
- Steps 1-4 — enable J1939ECU in the diesel diagnostic tool options
- Steps 5-7 — key on, check for other faults, and inspect the VSS
SPN 1663 FMI 7 troubleshooting steps

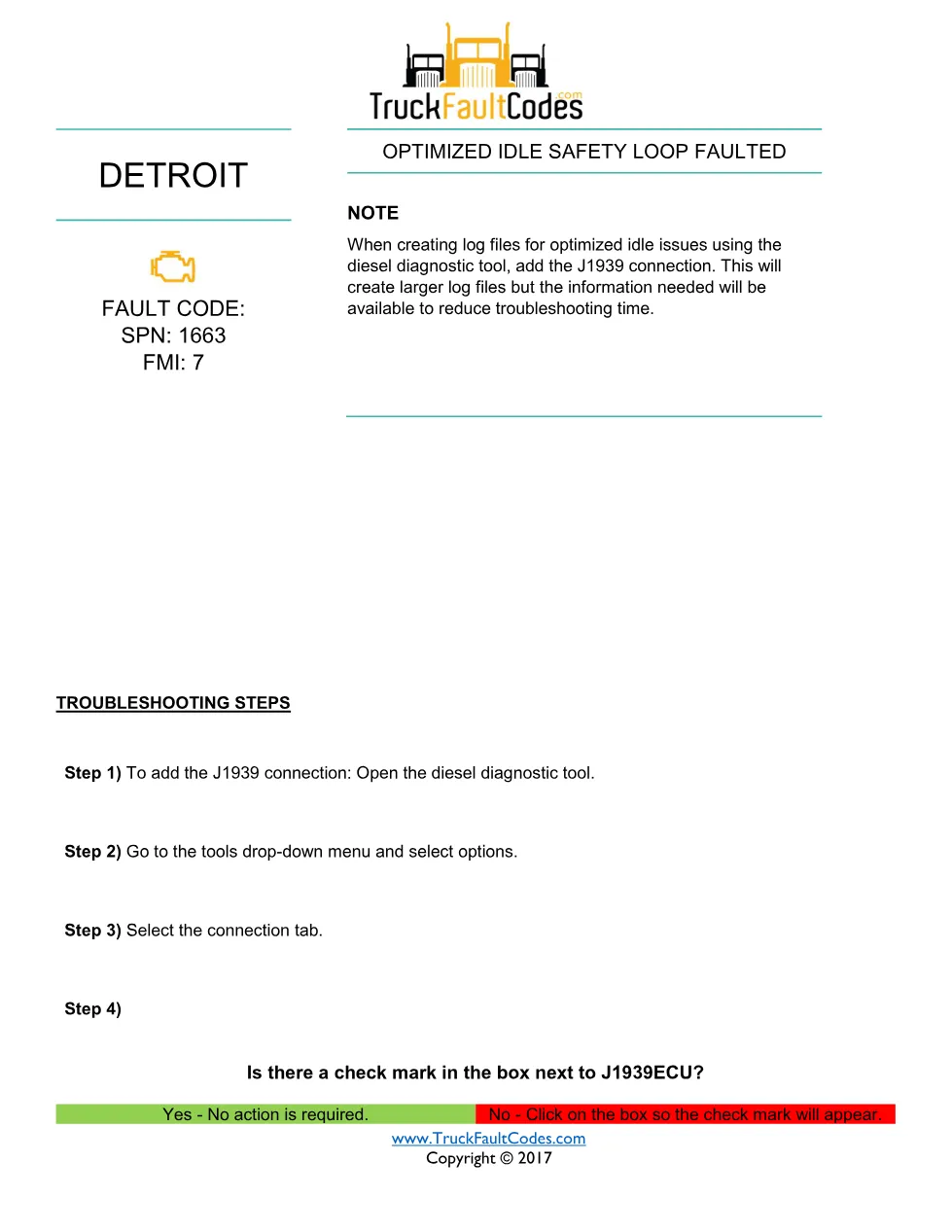

The sheet begins with a logging tip: adding the J1939 connection in the diesel diagnostic tool makes larger log files but captures the data needed to shorten troubleshooting. Steps 1-4 open the tool options, select the connection tab, and tick the J1939ECU box if it is not already checked. A note warns that an inactive SPN 1663 FMI 7 may mean the vehicle moved during Optimized Idle operation or that noise was detected on the Vehicle Speed Sensor. Steps 5-7 turn the ignition on, connect the tool, and repair any other stored faults first; if none remain, the fault points to the Vehicle Speed Sensor (VSS), and OEM literature is used for its repair.
Applicable truck models
This procedure covers Detroit DD-series engines — DD13, DD15 and DD16 on the EPA 2007-current platform — equipped with the Optimized Idle feature, and shares its SPN/FMI structure with related Series 60 DDEC VI applications. Confirm the emissions calibration (EPA07, EPA10 or GHG14) and that Optimized Idle is enabled before diagnosing. For engine serial-number and calibration confirmation, use the Detroit Diesel official support site.
Who needs the SPN 1663 FMI 7 manual
Technicians chasing an Optimized Idle no-run or shutdown complaint use this sheet to set up proper logging, rule out unrelated faults, and confirm whether the Vehicle Speed Sensor is the real cause.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download. Source: Detroit SPN/FMI fault-code reference (© 2017); logs are captured with the Detroit Diesel Diagnostic Link (DDDL).
