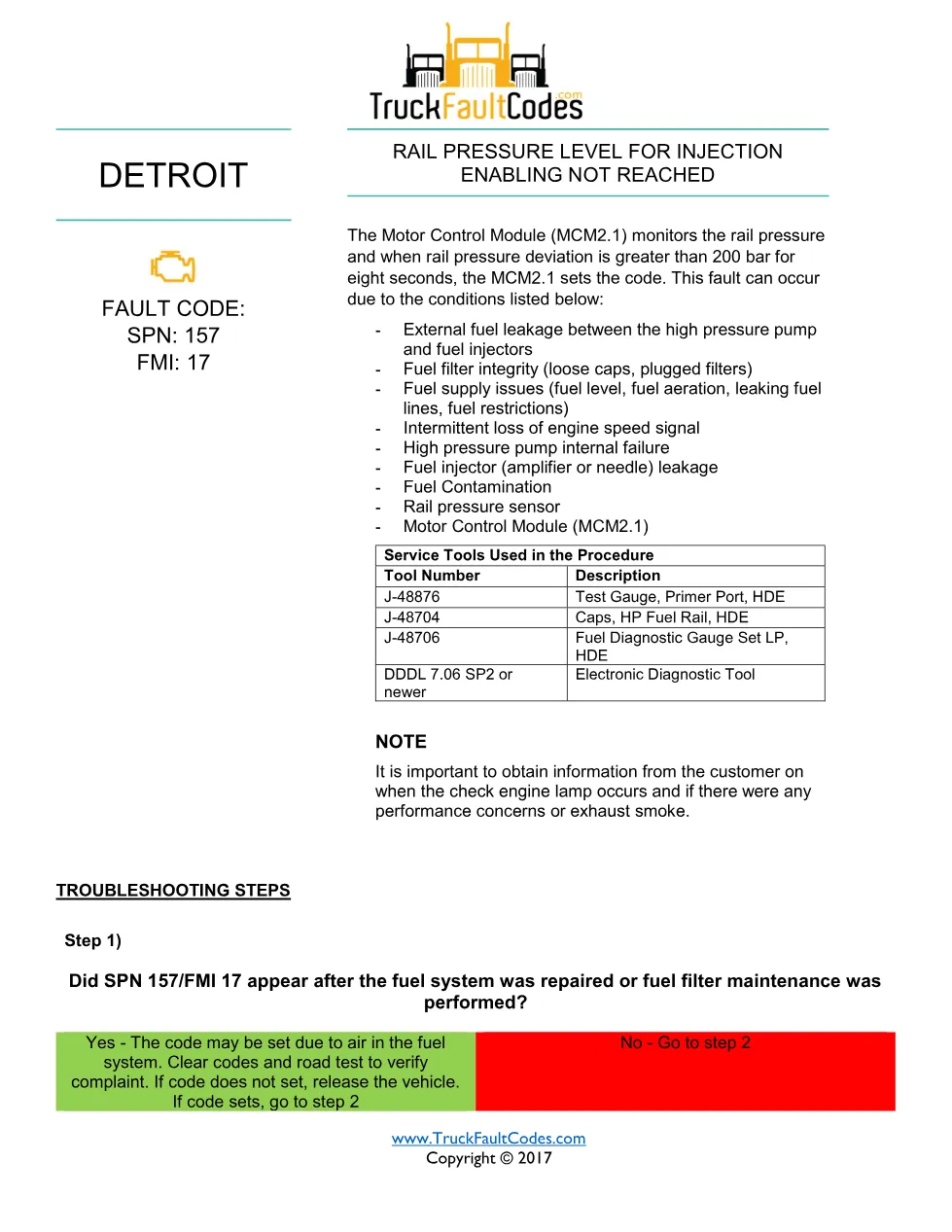

SPN 157 FMI 17 is a Detroit™ high-pressure fuel diagnostic fault code, and this 8-page Detroit DD Series PDF documents the “Rail Pressure Level for Injection Enabling Not Reached” condition in full. The MCM2.1 sets this code when rail pressure deviates by more than 200 bar for eight seconds. Listed causes include external high-pressure fuel leaks, plugged fuel filters, fuel aeration, high pressure pump failure, injector leakage, fuel contamination and a faulty rail pressure sensor. The summary below sets out the official causes, tools and troubleshooting order so a technician can verify the code before downloading the complete manual.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication no. | Not printed on sheet (Detroit™ via TruckFaultCodes.com, © 2017) |
| Year / Revision | 2017 |
| Pages | 8 |
| File size | 0.3 MB |
| Format | |
| Language | English |
SPN 157 FMI 17 document contents
- Fault code identification (SPN and FMI)
- Fault description and enabling conditions
- Possible-cause checklist
- Service tools used in the procedure (J-48876, J-48704, J-48706, DDDL 7.06 SP2)
- 24-step troubleshooting sequence

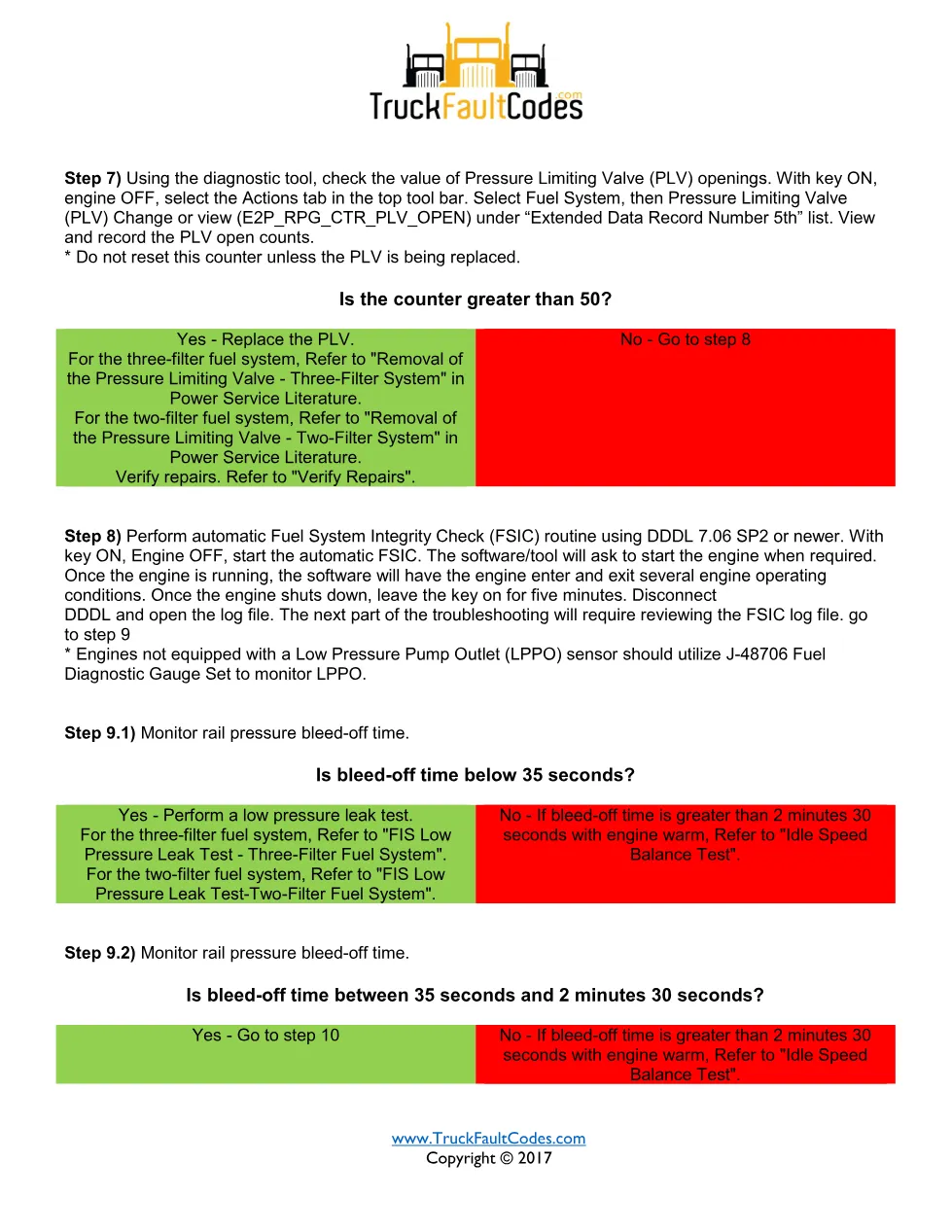

- Pressure Limiting Valve open-count check
- Automatic Fuel System Integrity Check routine
- Verify Repairs and MCM2.1 replacement
Applicable truck models
This procedure applies to Detroit DD Series diesel engines on the GHG14 emissions platform, covering both three-filter and two-filter fuel systems. It uses the DDDL 7.06 SP2 or newer electronic diagnostic tool. For factory service data, wiring diagrams and bulletins beyond this fault-code sheet, consult the official Detroit Diesel support site.
Who needs this SPN 157 FMI 17 manual
Diesel technicians and workshop owners diagnosing Detroit fuel-injection complaints need this sheet to run the code by the book rather than swapping parts. It also helps confirm whether air was drawn in during recent fuel-filter service.

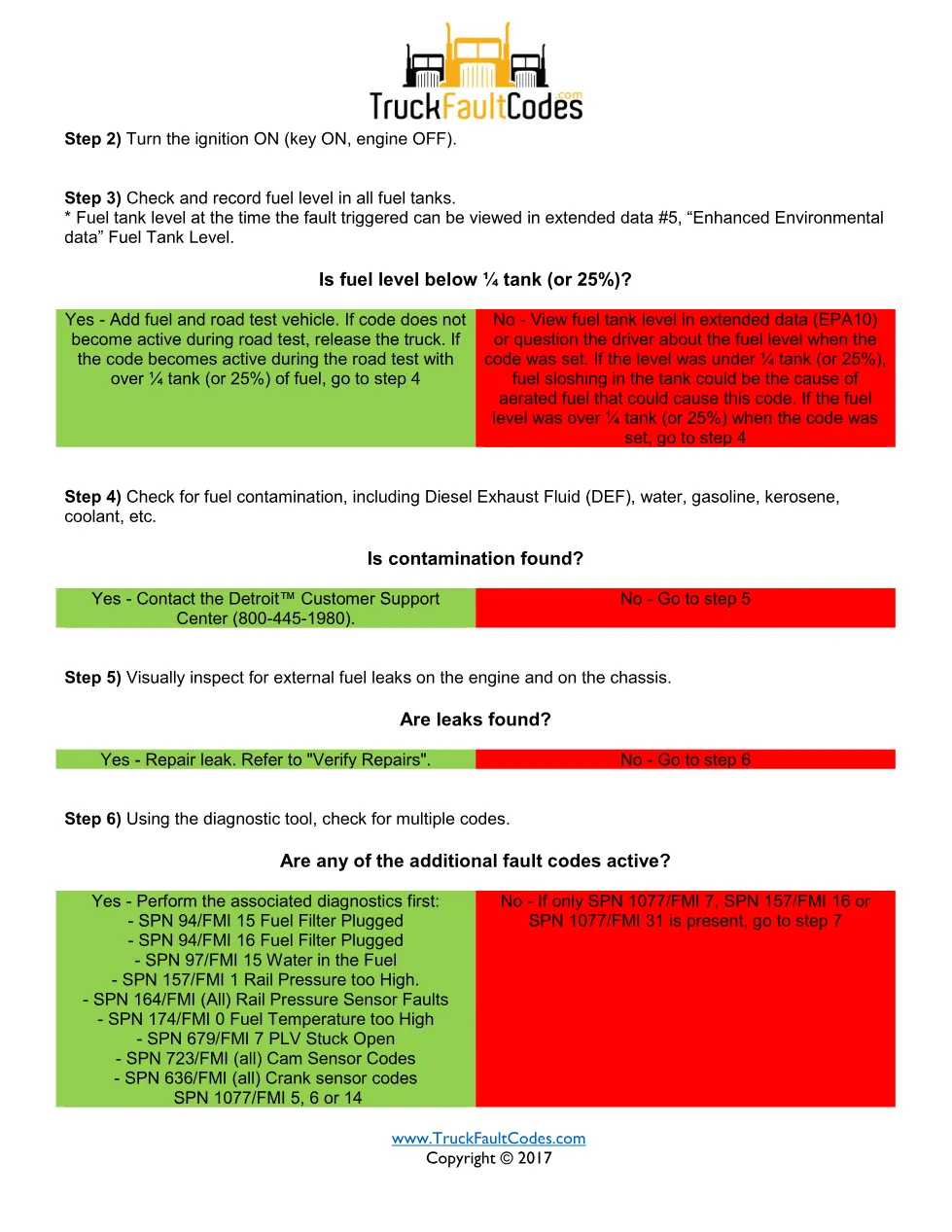

The routine works from a fuel-level and contamination check, through Pressure Limiting Valve open counts and the Fuel System Integrity Check log, to capping the injector feeds and, if needed, replacing the high pressure pump or MCM2.1, with escalation to the Detroit Customer Support Center at 800-445-1980.
The full 8-page PDF is available in the DiagTechPro manuals library; a free account is required to download it. Every document in the library is indexed by suspect parameter number and failure mode identifier, so you can cross-reference related Detroit DD Series fault codes without leaving the page.
