SPN 157 FMI 10 is a Detroit™ high-pressure fuel diagnostic fault code, and this 8-page Detroit DD Series PDF documents the “Under-Capacity in the High Pressure Circuit” condition in full. The MCM2.1 sets this code when rail pressure deviates by more than 200 bar. Listed causes include external high-pressure fuel leaks, Pressure Limiting Valve leakage, plugged fuel filters, fuel aeration, high pressure pump failure, injector leakage, fuel contamination and a faulty rail pressure sensor. The summary below sets out the official causes, tools and troubleshooting order so a technician can verify the code before downloading the complete manual.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication no. | Not printed on sheet (Detroit™ via TruckFaultCodes.com, © 2017) |
| Year / Revision | 2017 |
| Pages | 8 |
| File size | 0.3 MB |
| Format | |
| Language | English |

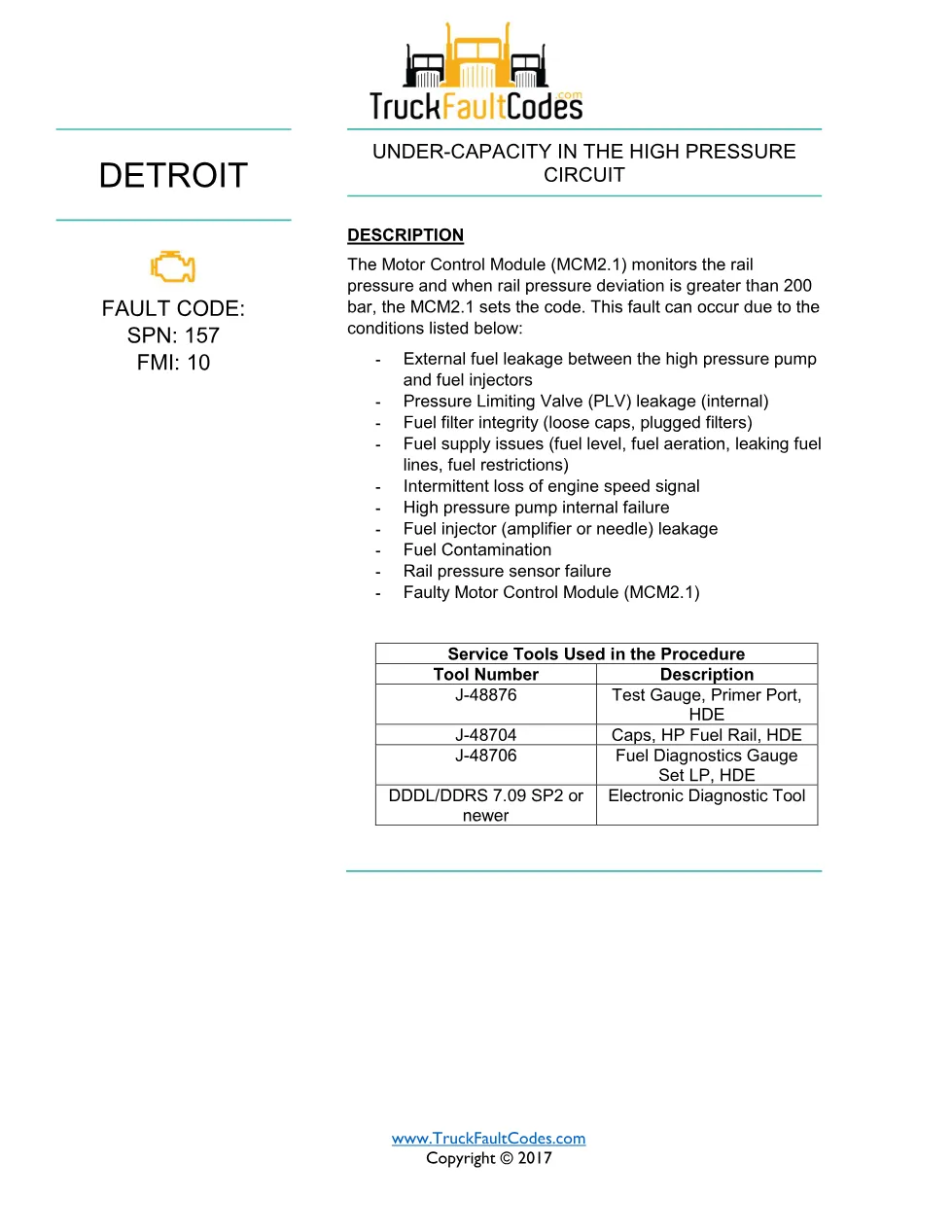

SPN 157 FMI 10 document contents
- Fault code identification (SPN and FMI)
- Fault description and possible causes
- Service tools used in the procedure (J-48876, J-48704, J-48706, DDDL/DDRS 7.09 SP2)

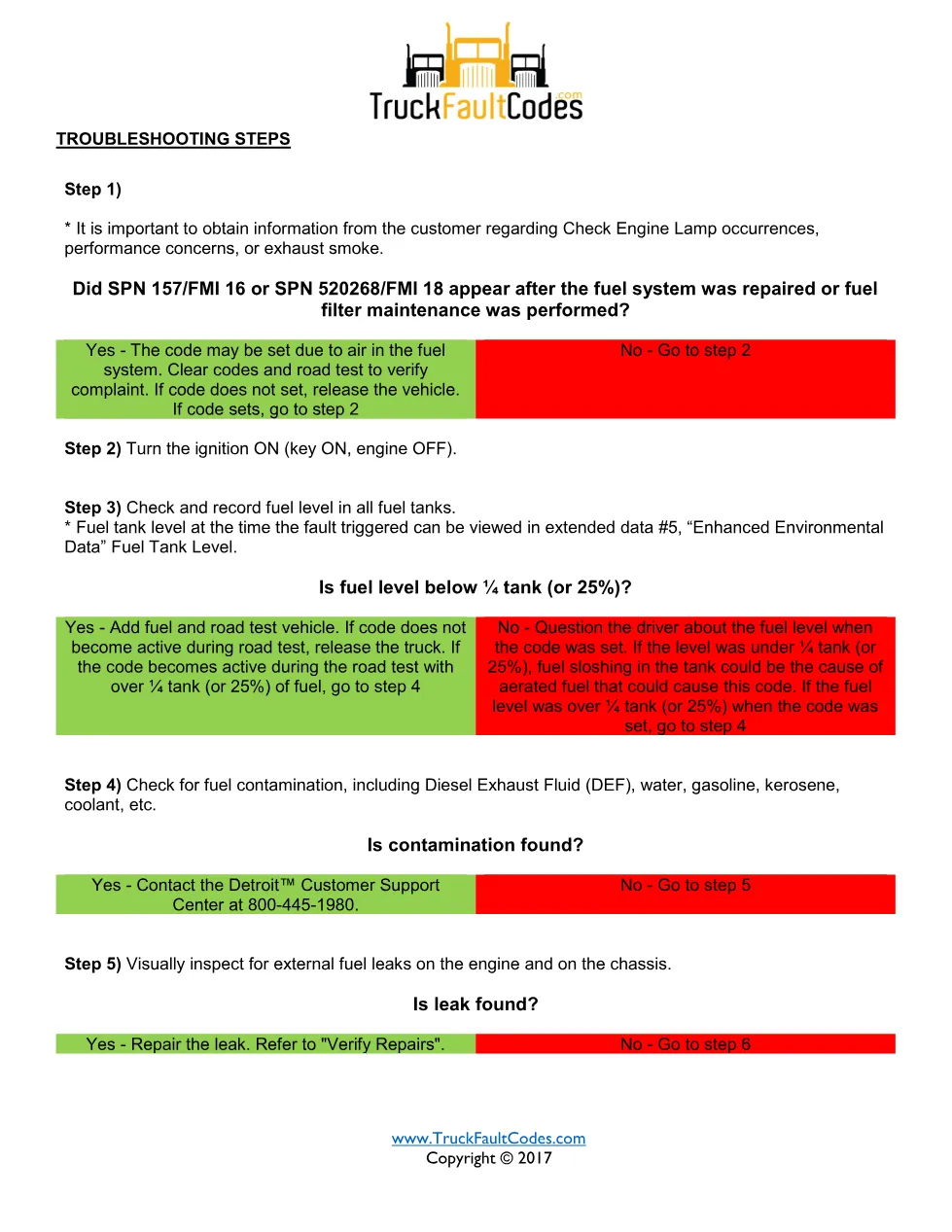

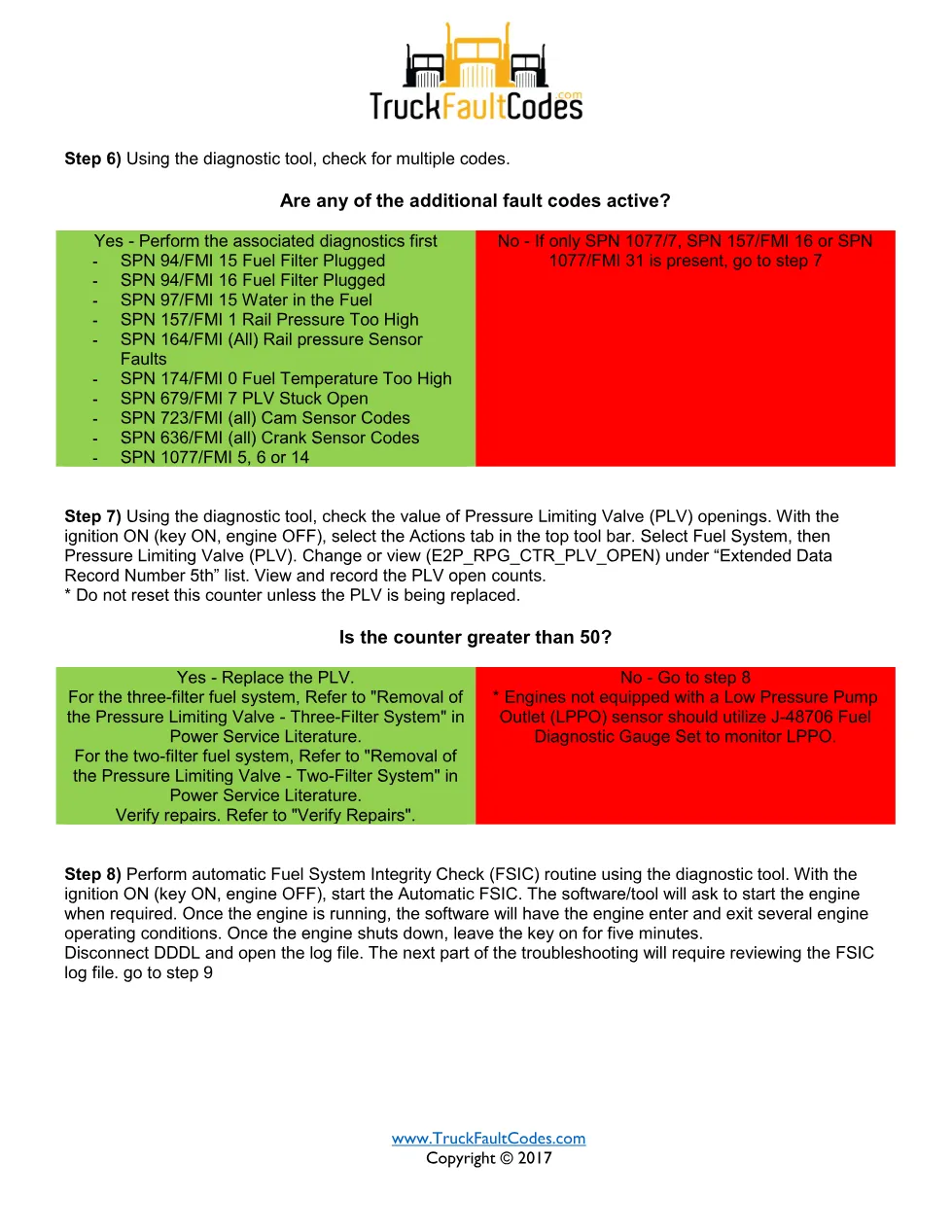

- Multi-step troubleshooting sequence
- Fuel System Integrity Check routine
- Verify Repairs and MCM2.1 replacement
Applicable truck models
This procedure applies to Detroit DD Series diesel engines on the GHG14 emissions platform, covering three-filter and two-filter fuel systems. It uses the DDDL/DDRS 7.09 SP2 or newer diagnostic tool. For factory service data, wiring diagrams and bulletins beyond this fault-code sheet, consult the official Detroit Diesel support site.
Who needs this SPN 157 FMI 10 manual
Diesel technicians diagnosing a high-pressure-circuit under-capacity complaint on a Detroit engine need this sheet to work from supply and aeration checks toward a pump decision. It also helps confirm whether air entered the system during recent service.
The routine runs from a fuel-level and contamination check, through the Fuel System Integrity Check log and Pressure Limiting Valve tests, to capping the injector feeds and, where needed, replacing the high pressure pump or MCM2.1, with escalation to the Detroit Customer Support Center.
