SPN 2791 FMI 11 is the Detroit DD Series diagnostic trouble code for egr actuator restricted operability, and this page documents the 5-page fault-code PDF for it. It gives mechanics the monitored conditions, the step-by-step troubleshooting sequence and the EGR actuator checks needed to diagnose the fault. The full document is a Detroit fault code sheet built from Detroit Power Service Literature references.
Official document details
| Brand | Detroit (Detroit Diesel / DTNA) |
| Model coverage | DD13, DD15 and DD16 |
| System / Group | DD Series (EPA 2007-Current) / DTCs — EGR actuator |
| Suspect Parameter Number | 2791 |
| Failure Mode Identifier | 11 |
| Fault description | EGR Actuator Restricted Operability |
| Year / Emissions | EPA07, EPA10 and GHG14 (all years) |
| Pages | 5 |
| File size | 0.38 MB |
| Format | |
| Language | English |
Document table of contents

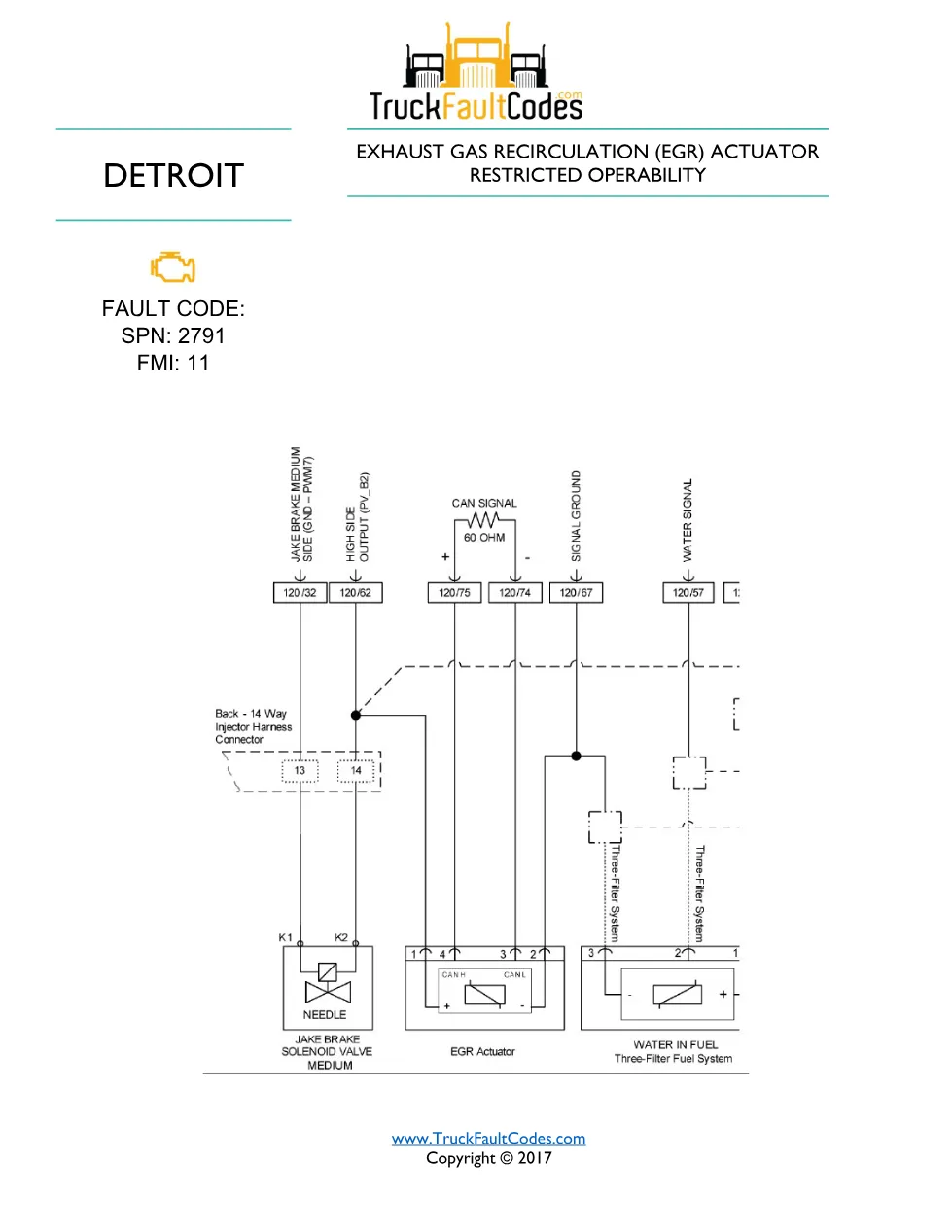

- Fault code header: SPN and FMI identification

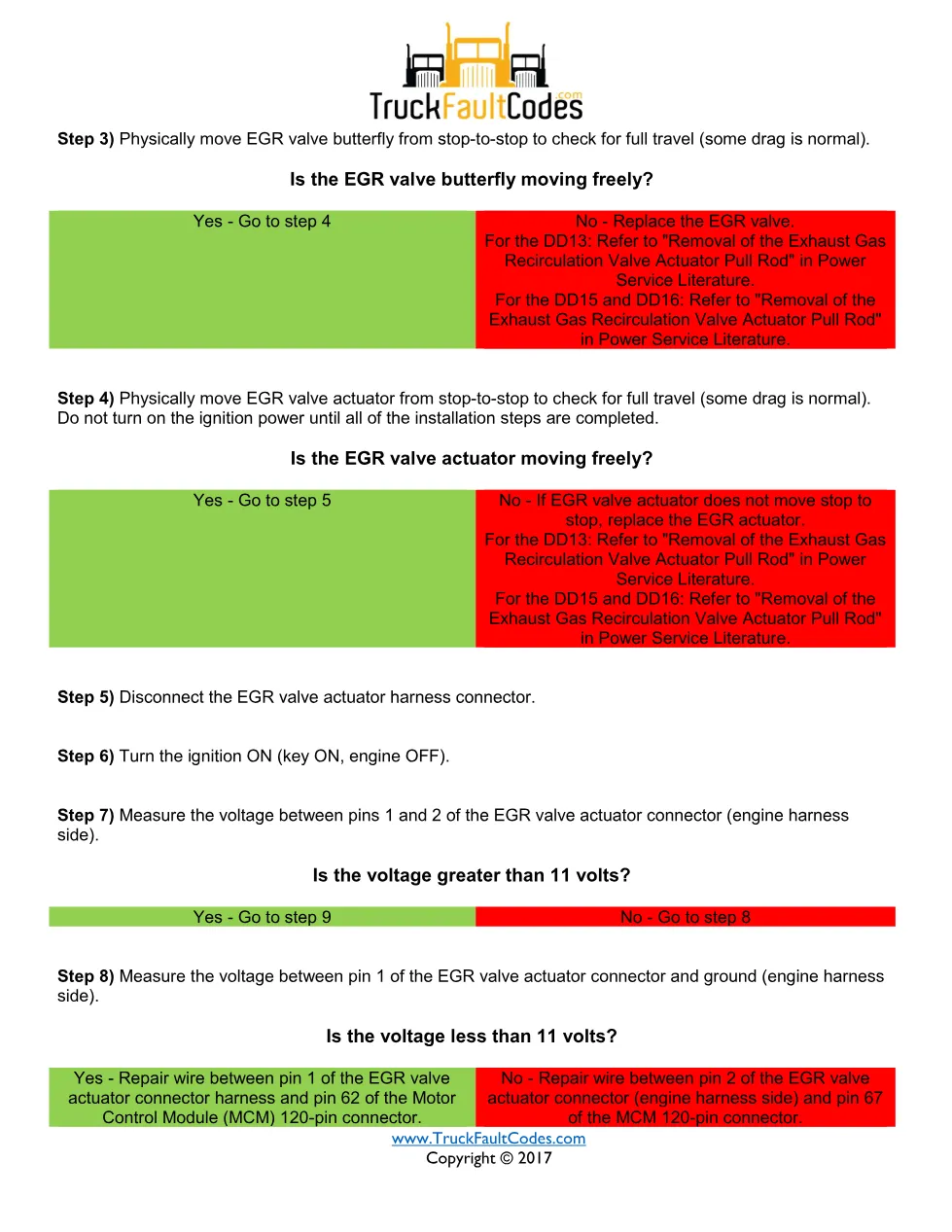

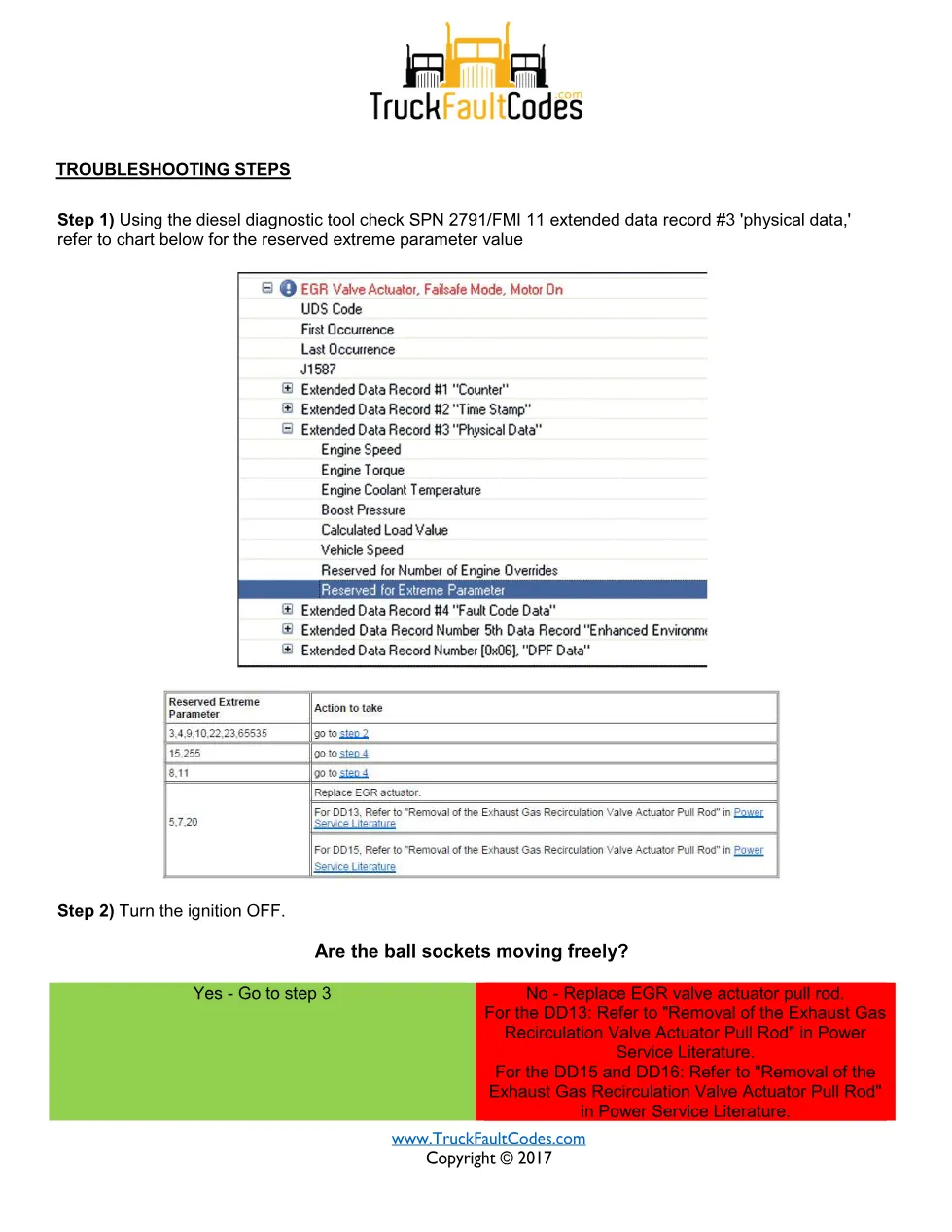

- Troubleshooting steps
- Component removal references (Detroit Power Service Literature)
- Verification and clearing the code
SPN 2791 FMI 11 diagnostic overview
This code indicates restricted operability of the EGR actuator. The technician reads extended data record #3 physical data for the reserved extreme parameter value, then checks the pull-rod ball sockets for free movement and confirms full actuator travel before replacing parts. Reading SPN 2791 FMI 11 correctly stops parts being replaced before the wiring and mechanical checks are done.
Applicable truck models
This Detroit DD Series fault code sheet applies to the DD13, DD15 and DD16 engines in the DD Series (EPA 2007-Current) family, covering EPA07, EPA10 and GHG14 (all years) configurations, and the same code also appears in Detroit Series 60 DDEC VI listings. Component removals point to Detroit Power Service Literature, and unresolved cases route to the Detroit Customer Support Center at 800-445-1980. Verify engine and emissions level against your build on the official Detroit brand site before ordering parts.
Who needs this 2791 FMI 11 manual
Heavy-duty diesel technicians, fleet workshops and owner-operators running Detroit DD engines use this EGR actuator sheet with a diesel diagnostic tool to work the fault methodically instead of guessing.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
