The Detroit pressure limiting valve document is a Detroit fault code reference that explains a pressure limiting valve (PLV) staying open on the high-pressure fuel rail, published for DD Series engines under SPN 5571 FMI 7 (GHG14). It gives workshop technicians the diagnostic sequence used to confirm the condition and return the truck to service, sourced from Detroit Power Service Literature.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current) and Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 5571 / FMI 7 |
| Emissions family | GHG14 |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 5571 / FMI 7
- Fault description and enabling conditions
- Fuel rail pressure monitoring at idle
- Fuel rail pressure at 1800 rpm
- Removal of the pressure limiting valve
Troubleshooting the Detroit pressure limiting valve code

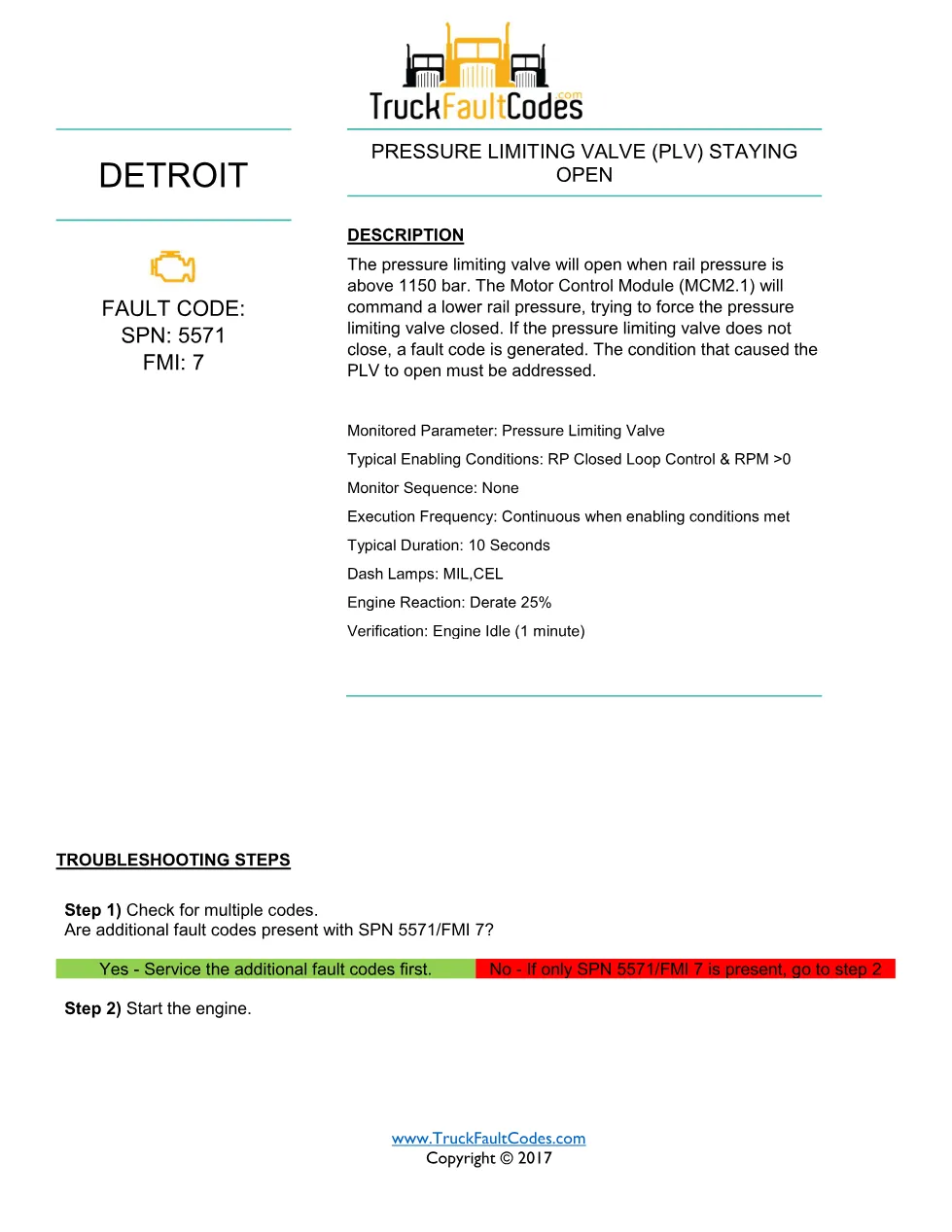

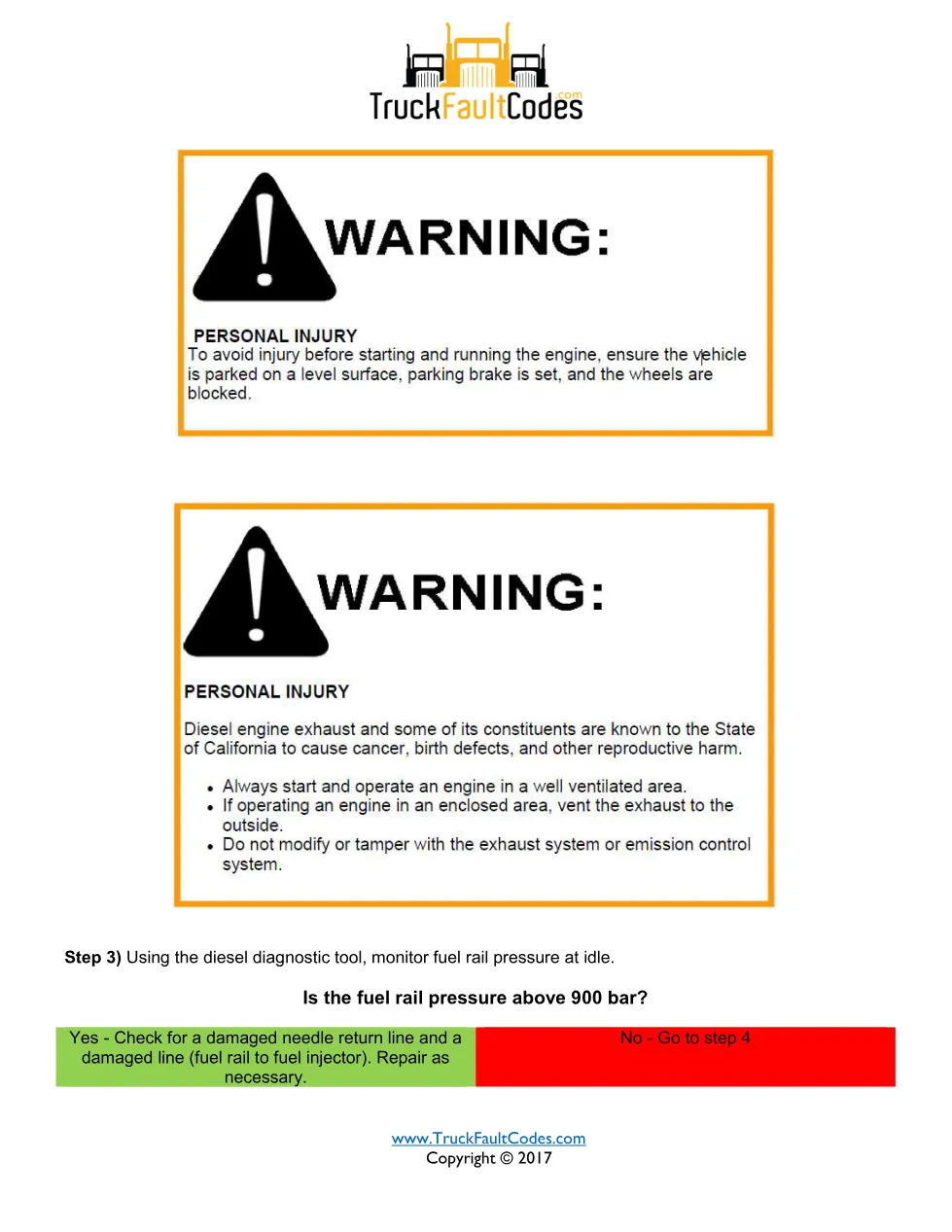

The valve opens when rail pressure exceeds 1150 bar and the MCM2.1 commands a lower pressure to force it closed. After clearing any additional codes, the technician monitors fuel rail pressure at idle and again at 1800 rpm; readings above 900 bar point to a damaged needle return line, amplifier return line or the line from the fuel rail to the injector, while lower readings call for replacement of the valve using the three-filter-system Power Service Literature.
