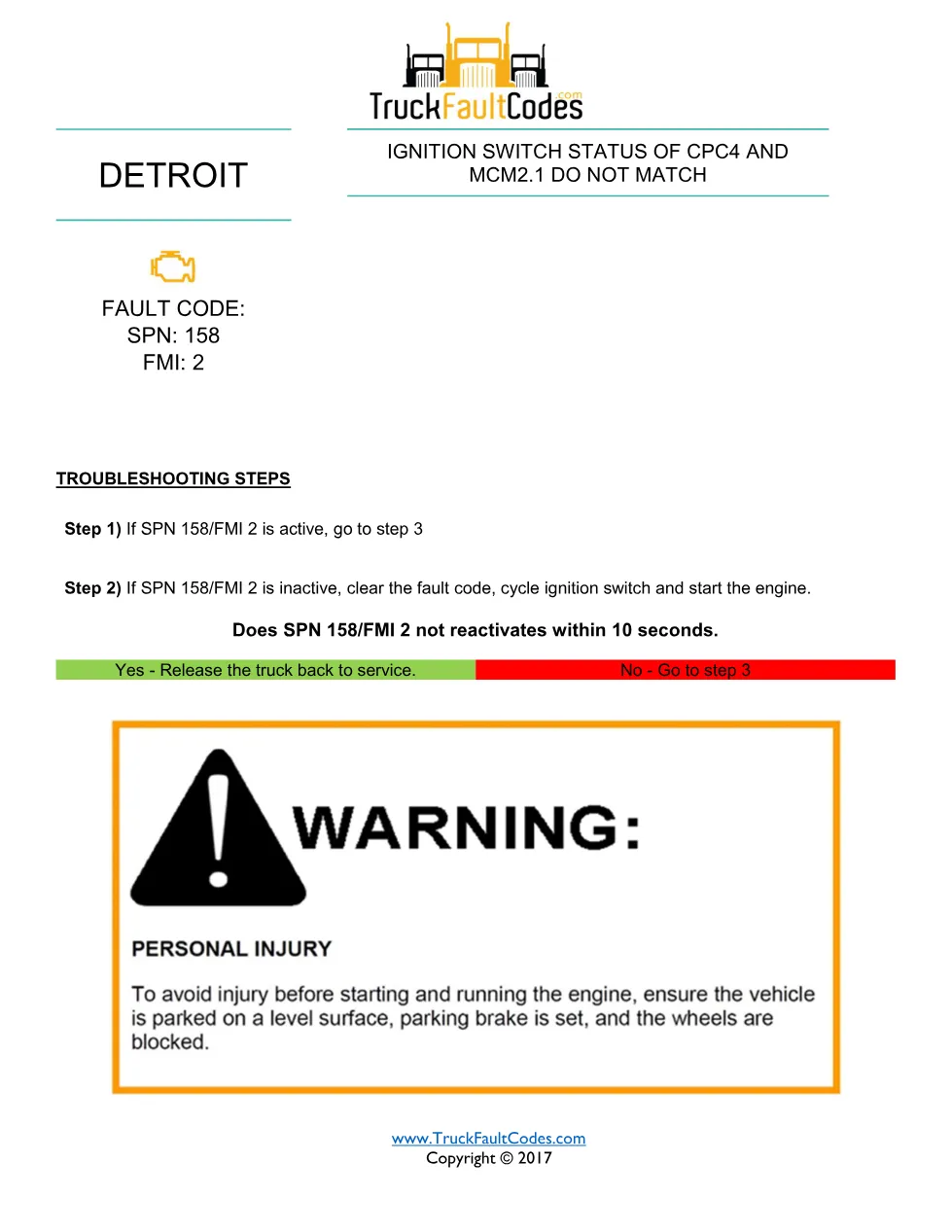

Detroit ignition switch mismatch is a Detroit™ ignition-status diagnostic fault code, and this 3-page Detroit DD Series PDF documents the “Ignition Switch Status of CPC4 and MCM2.1 Do Not Match” condition in full. On GHG14 platforms this code sets when the ignition-switch status seen by the CPC4 does not match the status seen by the MCM2.1. Diagnosis checks key-on voltage at the CPC4 connector #2 pin 3 and the MCM2.1 21-pin connector pin 7, each expected to be above 11.5 volts. The summary below sets out the official causes, tools and troubleshooting order so a technician can verify the code before downloading the complete manual.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication no. | Not printed on sheet (Detroit™ via TruckFaultCodes.com, © 2017) |
| Year / Revision | 2017 |
| Pages | 3 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Detroit ignition switch mismatch document contents
- Fault code identification (SPN and FMI)
- Active vs inactive fault check
- CPC4 connector #2 voltage check
- MCM2.1 21-pin connector voltage check
- Repair guidance and support escalation
Applicable truck models
This procedure applies to Detroit DD Series engines on the GHG14 emissions platform that pair a CPC4 Common Powertrain Controller with an MCM2.1 Motor Control Module. A multimeter and the diagnostic tool are the only equipment needed. For factory service data, wiring diagrams and bulletins beyond this fault-code sheet, consult the official Detroit Diesel support site.
Who needs this Detroit ignition switch mismatch manual
Technicians diagnosing a controller-mismatch or no-start complaint need this sheet to compare the two ignition-status signals and find the low-voltage branch. It also records the Customer Support Center number, 800-445-1980, for further help.

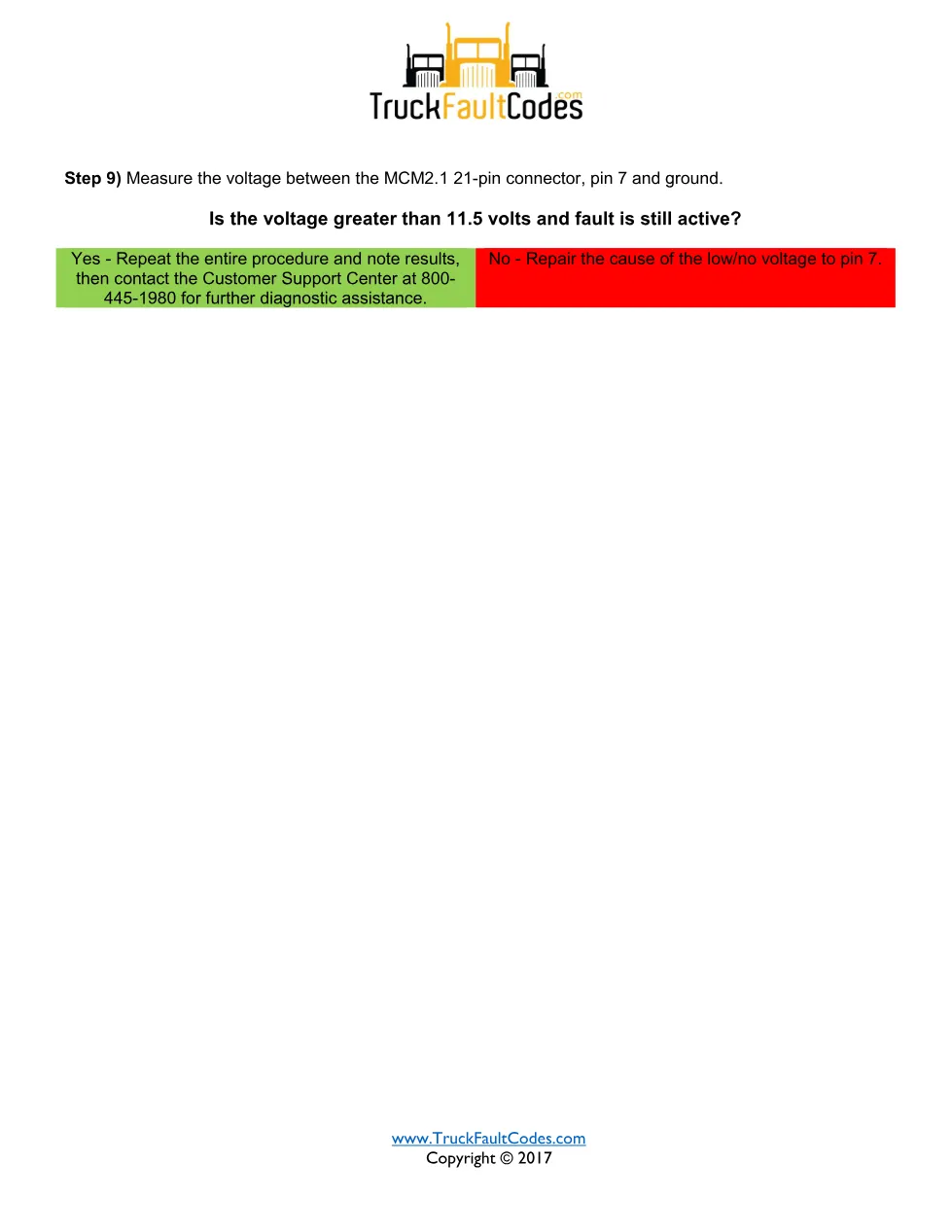

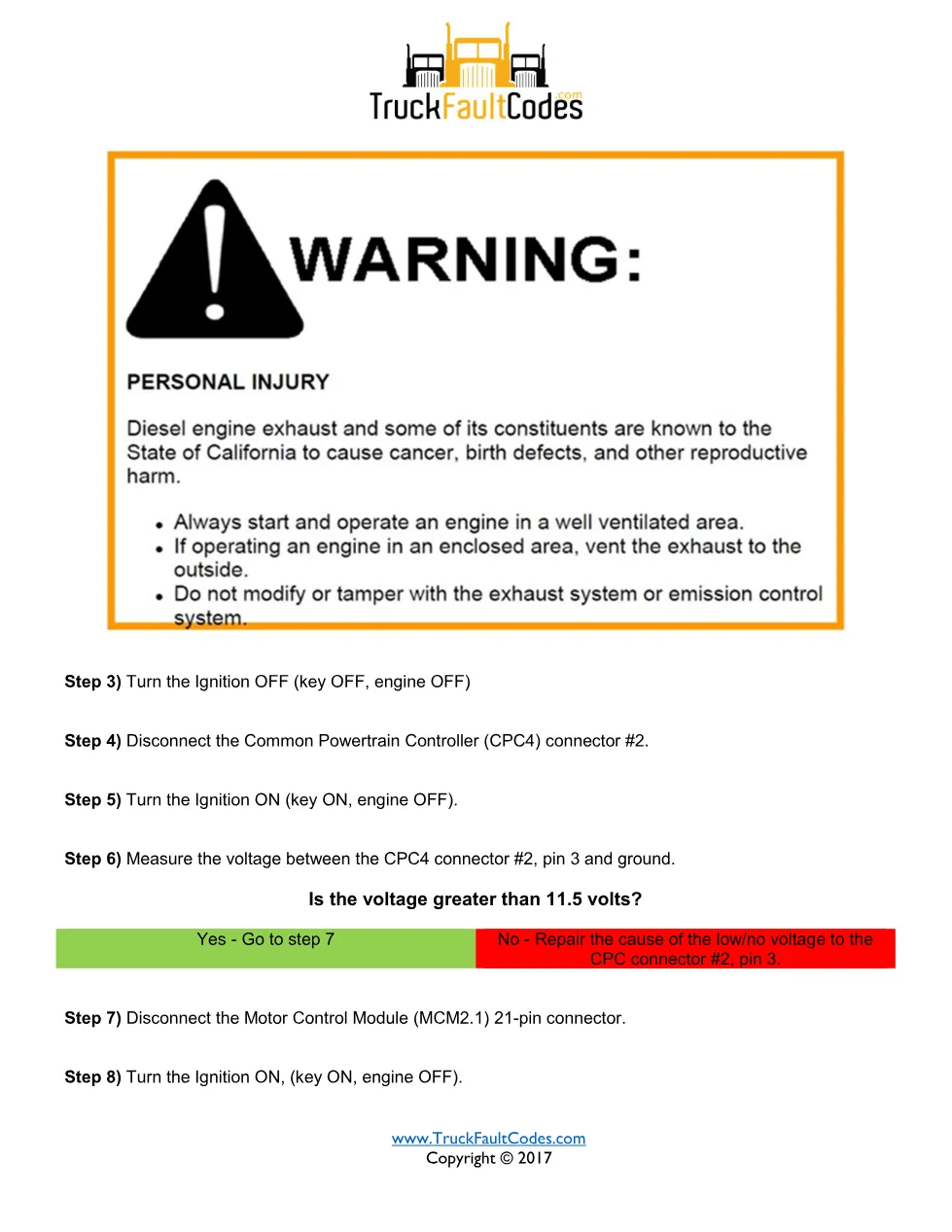

The routine confirms whether the code is active, then measures key-on voltage at CPC4 #2 pin 3 and MCM2.1 pin 7; a value below 11.5 volts identifies the supply circuit to repair, while good voltage with the fault still active calls for escalation.
The full 3-page PDF is available in the DiagTechPro manuals library; a free account is required to download it. Every document in the library is indexed by suspect parameter number and failure mode identifier, so you can cross-reference related Detroit DD Series fault codes without leaving the page.
