The Detroit DPF ash mileage fault-code sheet is a Detroit DD Series (EPA 2007-Current) troubleshooting document for a diesel particulate filter ash-mileage value that the MCM reports lower than the CPC stored value. It reproduces the official fault identification, the monitored parameters or service notes printed on the document, and the recommended diagnostic actions a heavy-duty technician follows step by step.
Detroit DPF ash mileage document details
| Brand | Detroit |
| Model coverage | Detroit DD Series engines (DD13, DD15 and DD16) from EPA 2007-Current, with equivalent coverage noted for Series 60 (DDEC VI) applications. |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Publication no. | Not printed on document; sourced from Detroit Power Service Literature |
| Year / Revision | © 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 247 / FMI 14
- DPF Ash Accumulator routine
- MCM replacement and synchronise option
- Verification and fault clearing
Applicable truck models
Detroit DD Series engines (DD13, DD15 and DD16) from EPA 2007-Current, with equivalent coverage noted for Series 60 (DDEC VI) applications. Fault code SPN 247 / FMI 14 is diagnosed with a diesel diagnostic tool such as DDDL or DDRS. For factory procedures and the latest module software, see the Detroit Diesel official website.
Diagnostic steps and checks

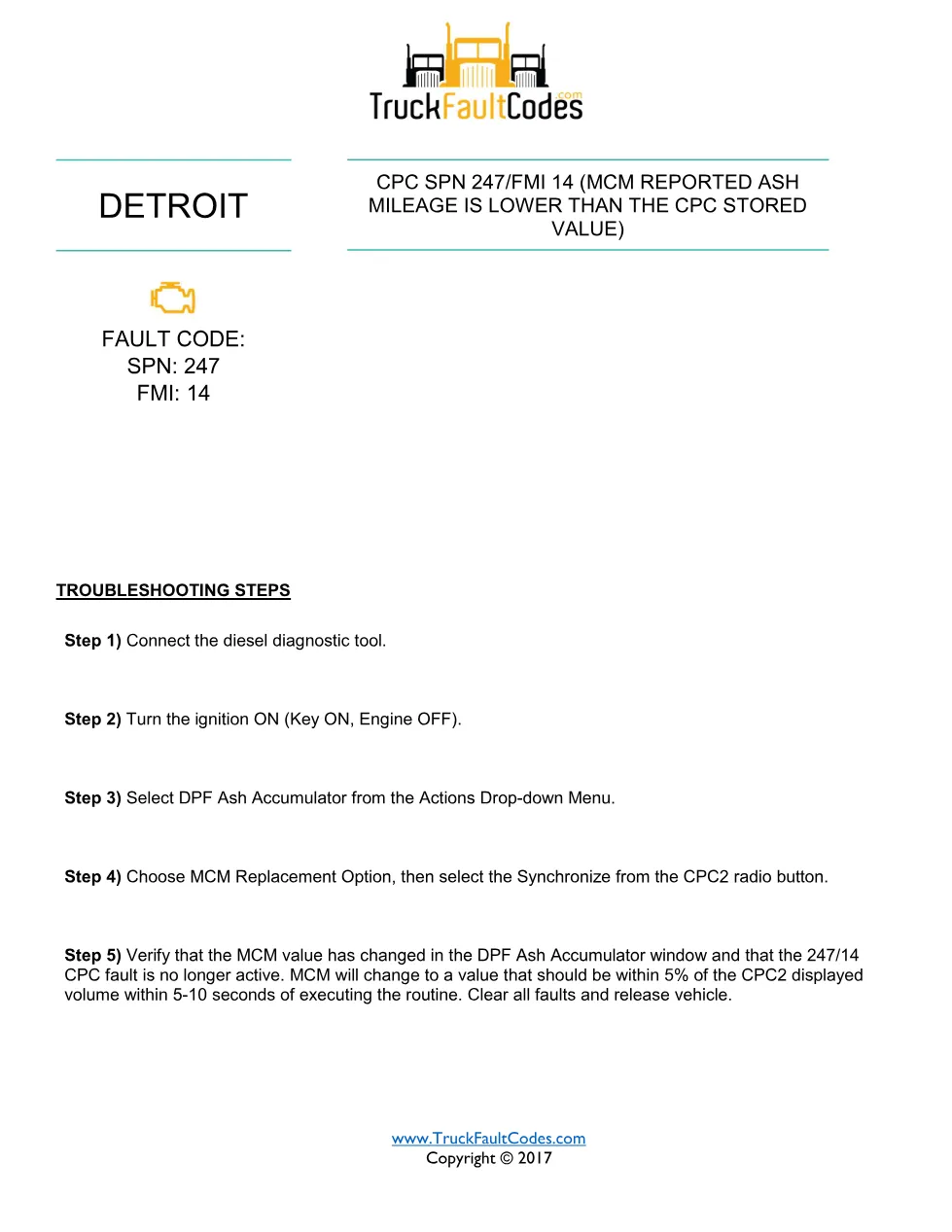

This single-page routine resynchronises the MCM ash value to the CPC. The technician connects the diesel diagnostic tool, turns the key on with the engine off, selects DPF Ash Accumulator from the Actions drop-down menu, chooses the MCM Replacement option and the Synchronize from CPC2 button, then verifies the MCM value has moved to within 5% of the CPC2 volume within five to ten seconds and that the 247/14 fault is no longer active before clearing all faults and releasing the vehicle.
