battery voltage low fault is the Detroit DD Series diagnostic trouble code for battery voltage low, and this page documents its official engine charging and battery power circuit troubleshooting sheet. The three-page Detroit DD Series sheet moves from the alternator and battery to resistance and current-drop measurements on the Motor Control Module (MCM) and Common Powertrain Controller (CPC) circuits.
battery voltage low fault document details
| Brand | Detroit |
| Model coverage | DD Series — DD13, DD15, DD16 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| SPN | 168 |
| FMI | 1 |
| Fault | Battery Voltage Low |
| Emissions / revision | All years — Copyright 2017 |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault description and low-voltage condition
- Alternator drive belt, mounting and operation
- Battery charge-holding test
- Ground and power circuit resistance (MCM, CPC)
- Current-drop tests on individual wires
Troubleshooting steps summarised

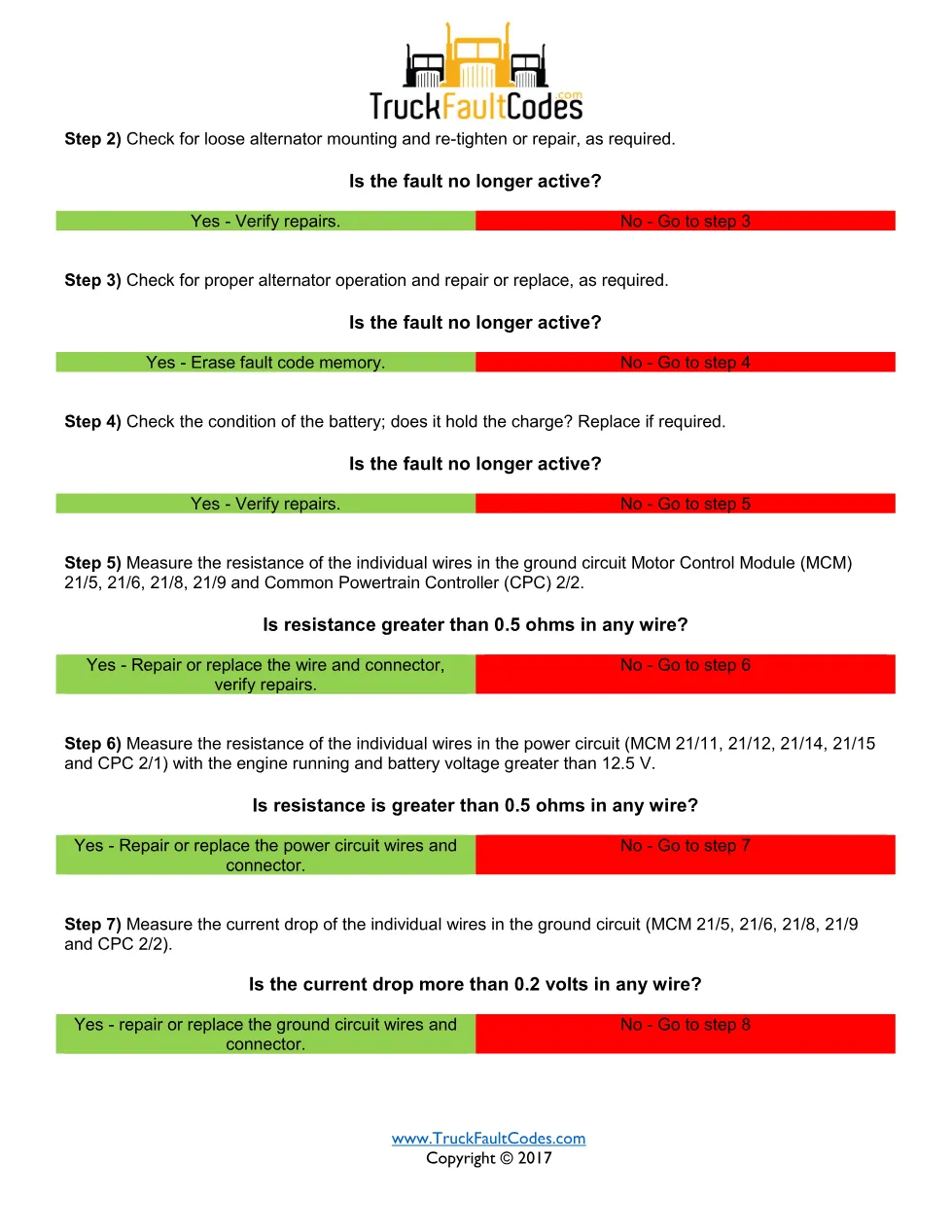

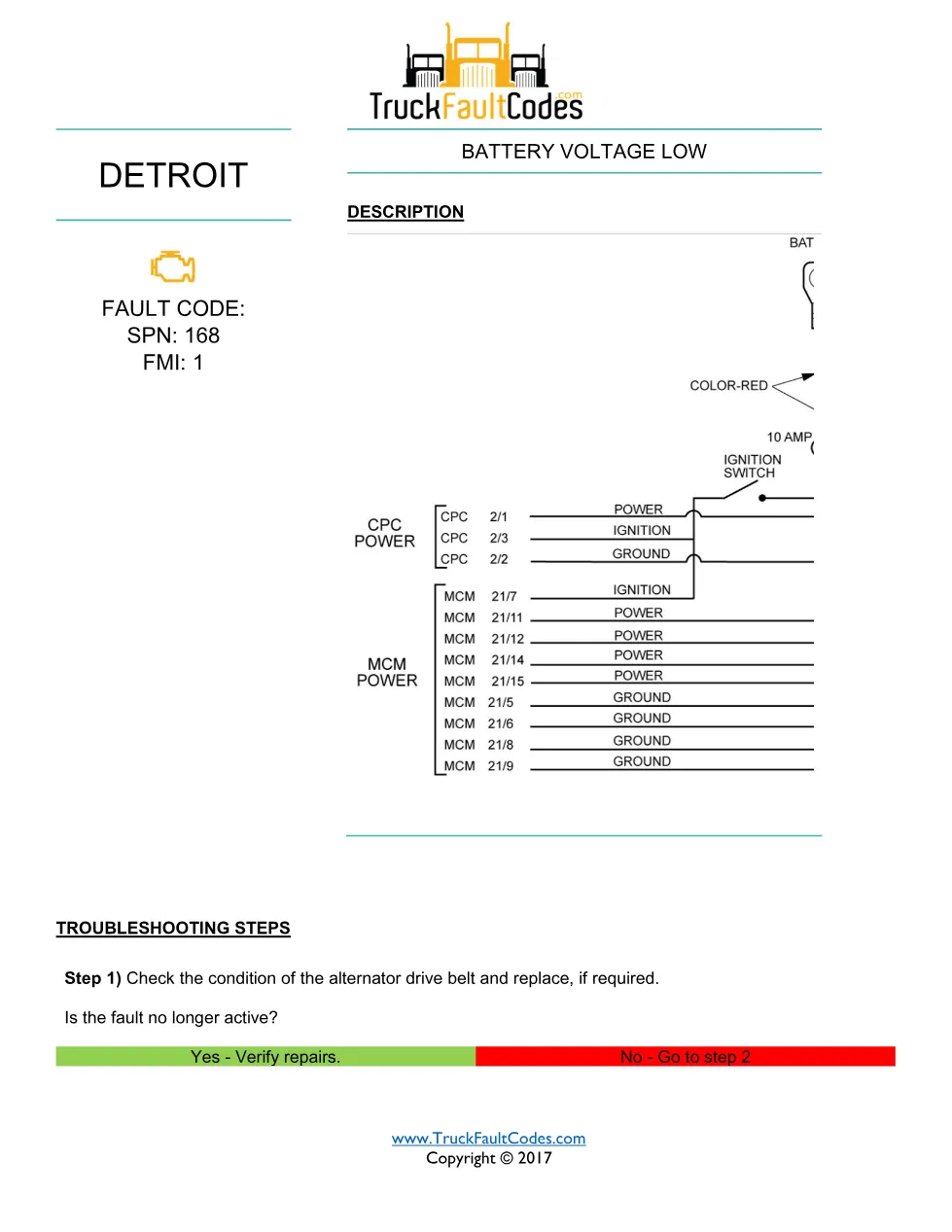

After confirming the alternator drive belt, mounting, operation and battery charge, the technician measures ground-circuit resistance at MCM 21/5, 21/6, 21/8, 21/9 and CPC 2/2, then power-circuit resistance at MCM 21/11-21/15 and CPC 2/1 with the engine running above 12.5 V. Current-drop tests follow, and any wire over 0.5 ohms or 0.2 volts of drop is repaired or replaced.
Applicable truck models covered
It applies across all model years of the Detroit DD Series (DD13, DD15 and DD16) using the MCM and CPC power and ground architecture. For engine specifications and warranty coverage, refer to the official Demand Detroit service resources. These troubleshooting steps are cross-checked with the Detroit Diesel Diagnostic Link (DDDL) and the official Demand Detroit service resources.
Who needs this battery voltage low fault guide
Technicians tracing a persistent low module supply, a high-resistance ground, or a voltage-drop problem across the charging wiring use this sheet to find the failing conductor.

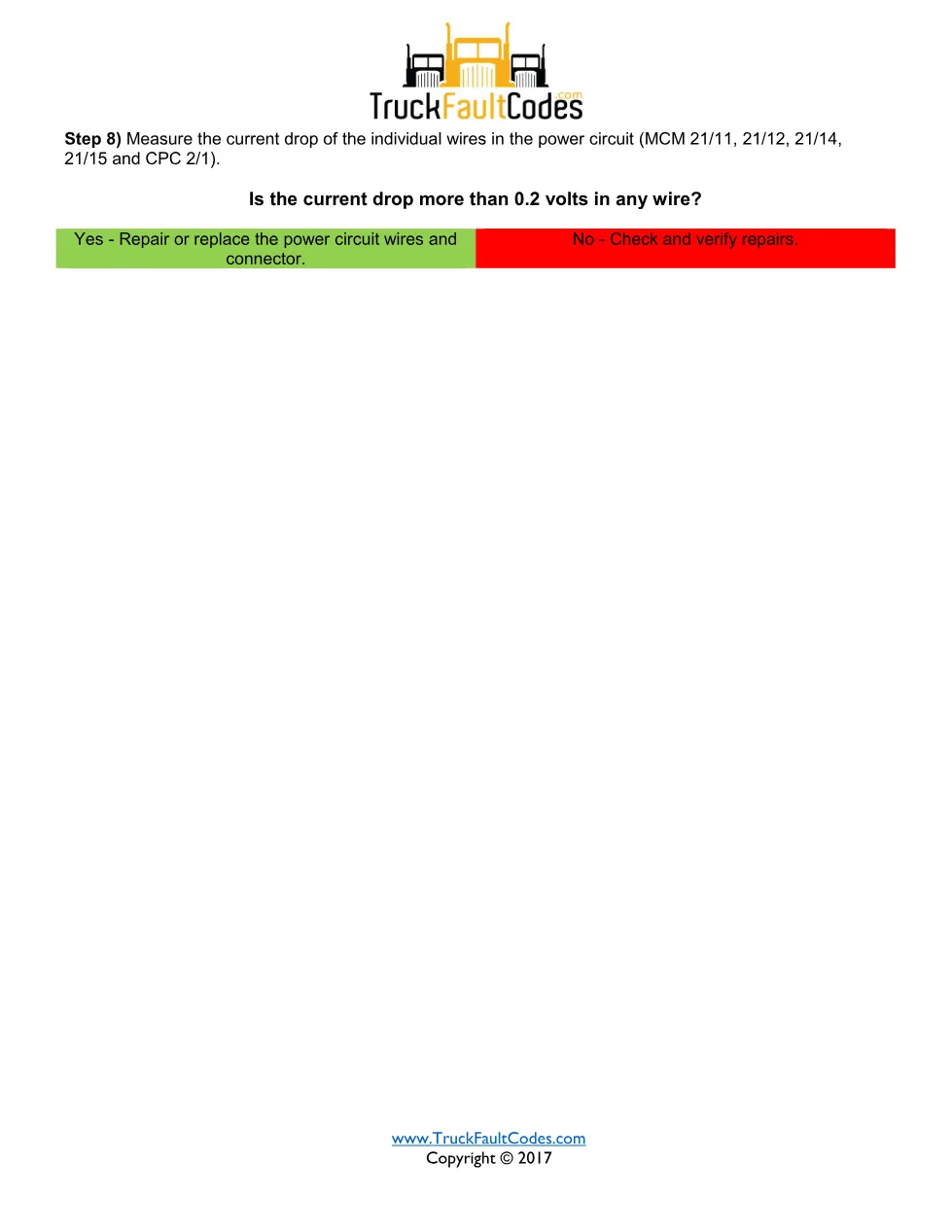

The full PDF is available in the DiagTechPro manuals library; a free account is required to download the complete step-by-step document.
