The 625 FMI 13 GHG14 fault code manual covers the Detroit J1939 TCM system-IDs not-received fault on GHG14 engines, often set during transmission reprogramming, with the multiple-code check procedure. This DiagTechPro library page summarizes the official Detroit troubleshooting sheet so technicians can confirm the J1939 TCM System IDs Not Received or Stopped Arriving condition before opening the full PDF.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current) heavy-duty diesel engines, including DD13, DD15 and DD16 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 625 / FMI 13 – J1939 TCM System IDs Not Received or Stopped Arriving |
| Emissions platform | GHG14 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
625 FMI 13 GHG14 troubleshooting contents
The Detroit fault code sheet walks through these sections and diagnostic steps in order:

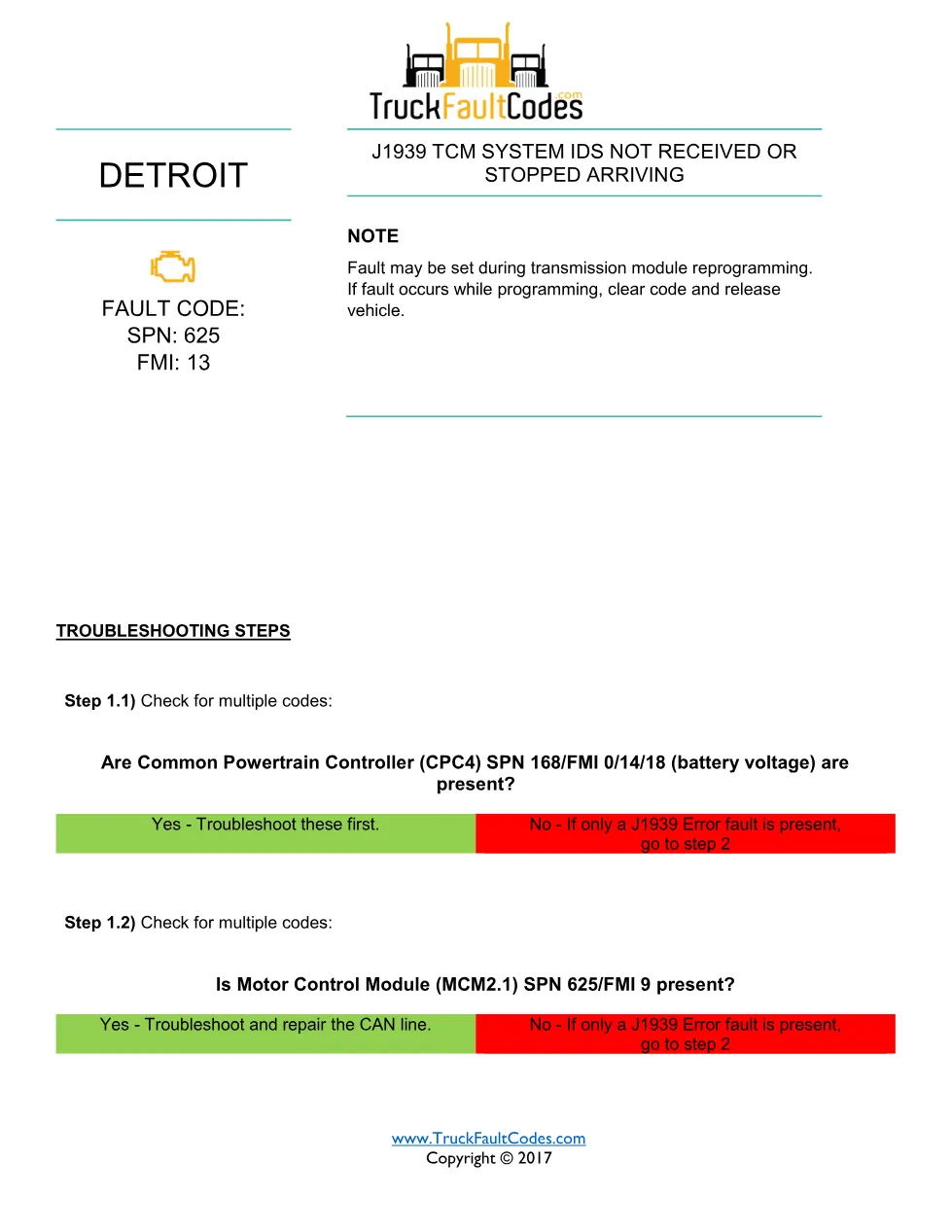

- Fault code identification (SPN 625, FMI 13)
- Note: fault may set during transmission module reprogramming
- Check for CPC4 battery-voltage codes (SPN 168) first
- Check for MCM2.1 SPN 625/FMI 9 and repair the CAN line

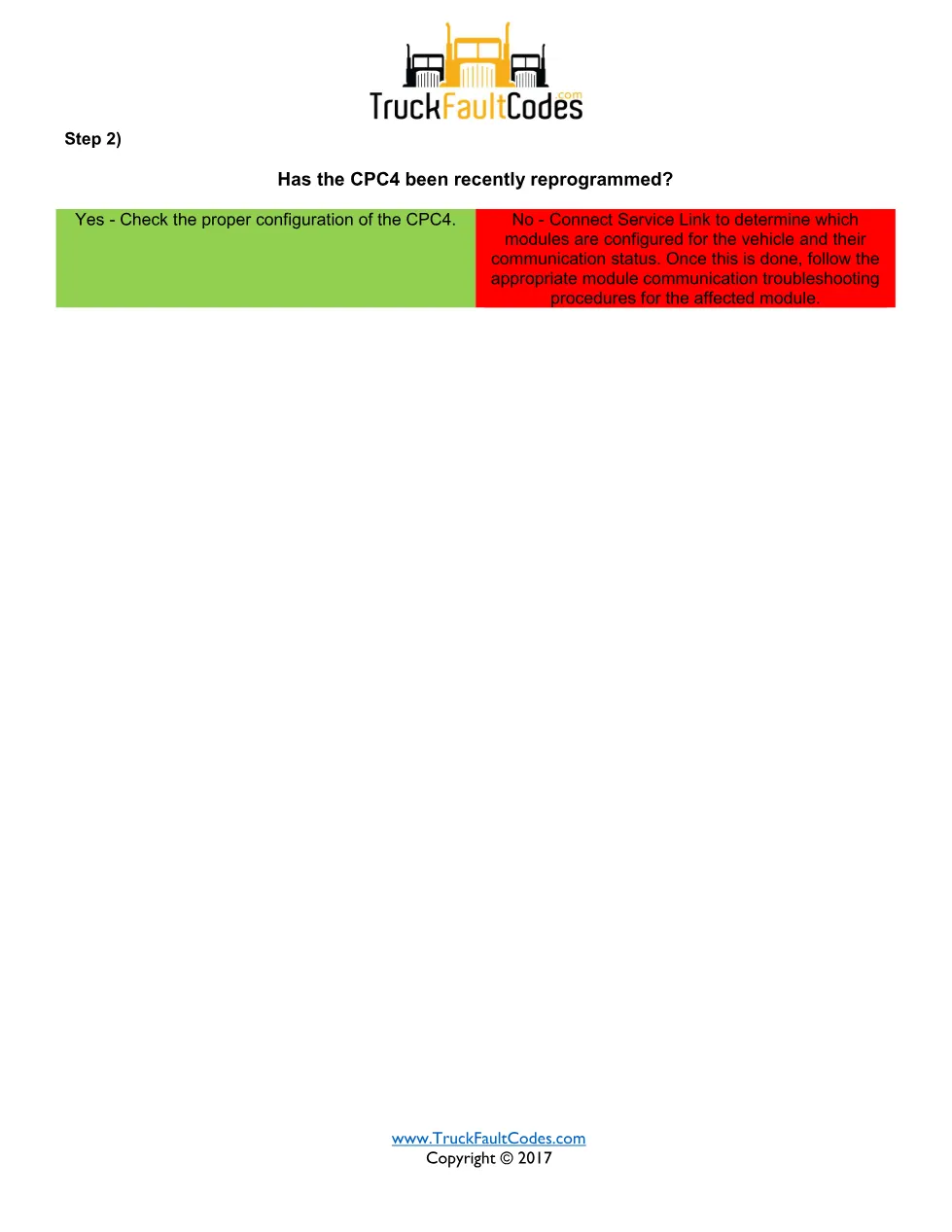

- Verify CPC4 configuration after reprogramming
- Use Service Link to determine the missing module
Because these Detroit sheets present pass and fail decision points rather than long narrative, technicians should record each measured value as they proceed and compare it against the limits shown before replacing any control module, harness or sensor.
Applicable truck models covered
This diagnostic applies to Detroit DD Series (EPA 2007-Current) engines built to the GHG14 emissions configuration, covering the DD13, DD15 and DD16 used in Freightliner and Western Star trucks. It references the Motor Control Module (MCM) and Common Powertrain Controller (CPC) that manage the affected circuit. Always confirm engine calibration against the official specification on the Detroit Diesel manufacturer website before condemning any component.
Who needs this 625 FMI 13 GHG14 manual
Heavy-duty truck technicians, fleet maintenance teams and workshop owners diagnosing this Detroit fault code use this sheet to follow the manufacturer procedure instead of guessing. The source sheet is published by TruckFaultCodes.com (Copyright 2017) and lists the Detroit Customer Support Center at 800-445-1980 for unresolved cases.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
