The 3250 FMI 8 EPA07 fault code file is a Detroit EPA07 diagnostic sheet covering a Diesel Oxidation Catalyst (DOC) outlet temperature signal spike on DD Series engines. Compiled by TruckFaultCodes.com (© 2017) from Detroit Power Service Literature, this 3-page PDF gives technicians the exact troubleshooting order for DTC 3250-8. It is a field reference, not a substitute for the full factory manuals.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD13, DD15, DD16 |
| System / group | DD Series (EPA 2007-Current) — DTCs |
| Diagnostic code | DTC 3250-8, emission level EPA07 |
| Fault name | DOC Outlet Temperature Signal Spike |
| Pages | 3 |
| File size | 0.4 MB |
| Format | |
| Source | TruckFaultCodes.com, from Detroit Power Service Literature |
| Language | English |
3250 FMI 8 EPA07 fault summary
It flags an impossible temperature shift detected by the MCM, checks the All Voltages routine at pin 115 (T_DOC OUT), and includes vertical and horizontal ATD wiring diagrams. Every step is laid out as a Yes/No decision branch, so you can follow the same path a Detroit dealer technician would without guessing.

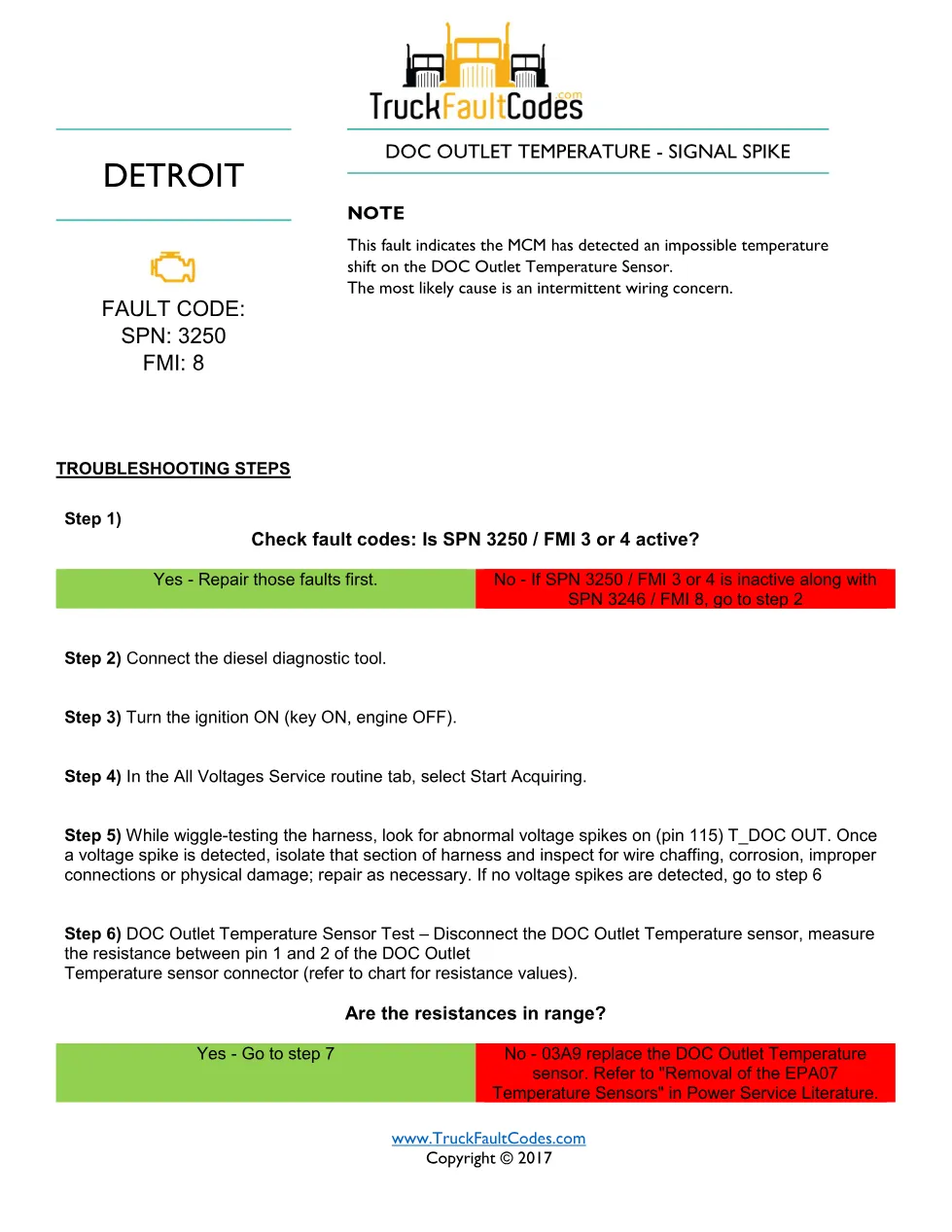

- Checking for SPN 3250 FMI 3 or 4 first
- All Voltages service routine at pin 115 (T_DOC OUT)
- Wiggle-testing for voltage spikes

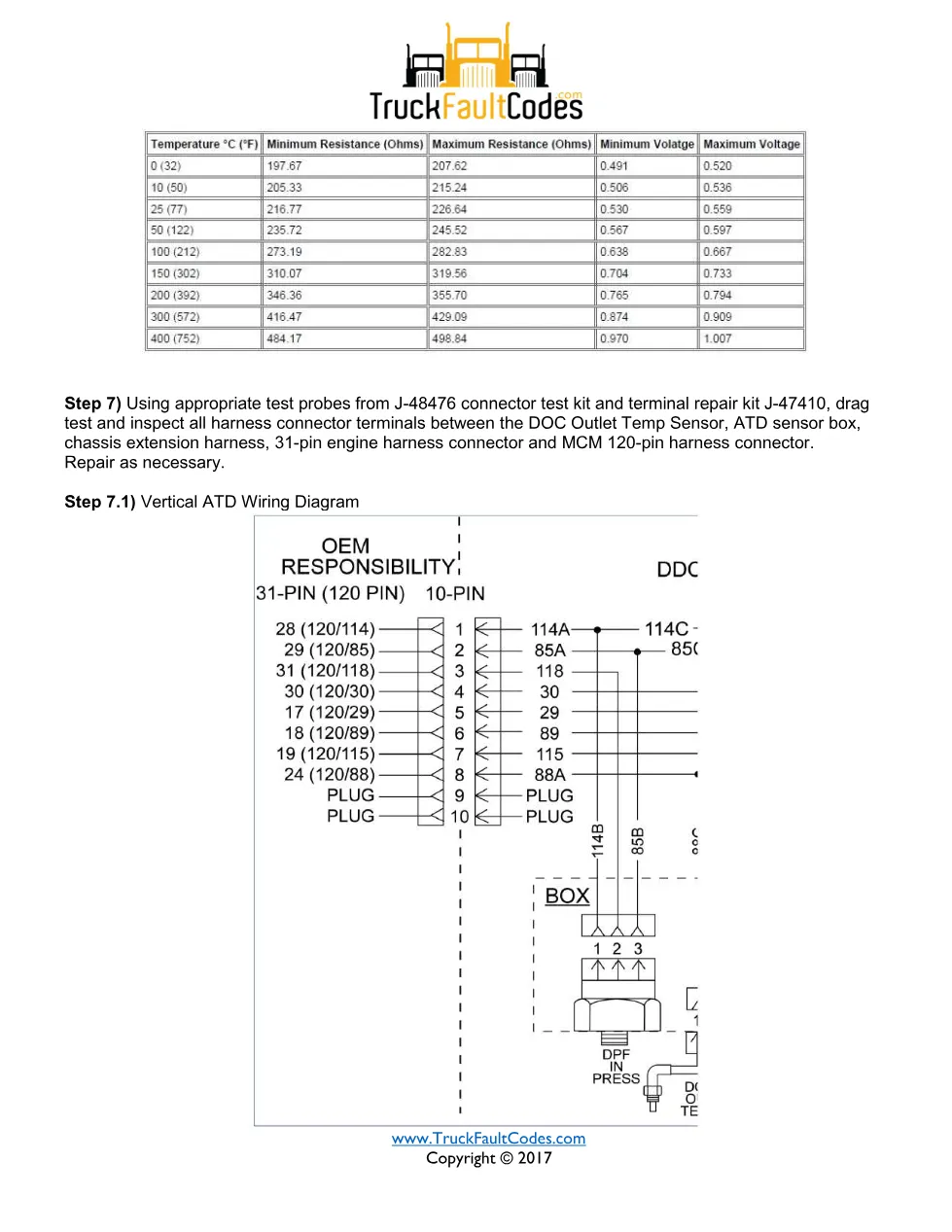

- DOC outlet temperature sensor resistance test

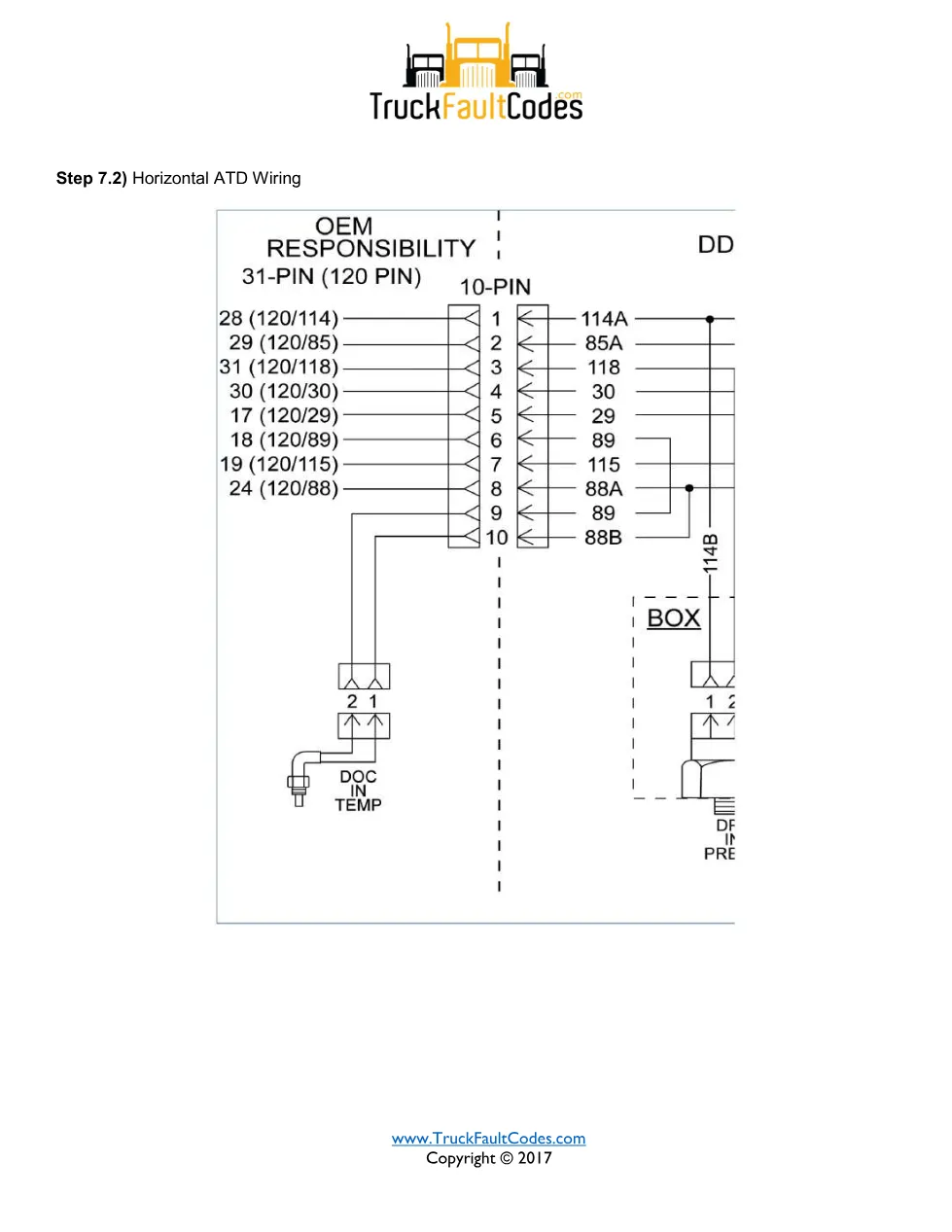

- Vertical and horizontal ATD wiring diagrams
Applicable truck models and engines
This procedure applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007-Current) family. The EPA07 procedure is built around the Motor Control Module (MCM) and its 120-pin connector. For engine specifications and dealer support, see the official Detroit engine support site.
Who needs this 3250 FMI 8 EPA07 manual
Fleet technicians, mobile diesel mechanics and DD Series owners diagnosing this code with a diesel diagnostic tool such as DDDL or DDRS will find the exact step order, pin numbers and pass/fail limits they need. Keep it beside the truck during the repair.
The complete 3-page PDF is available in the DiagTechPro manuals library; a free account is required to download it.
