The 3250 FMI 14 EPA10 fault code file is a Detroit EPA10 diagnostic sheet covering an abnormal Diesel Oxidation Catalyst (DOC) temperature rise (type 2) on DD Series engines. Compiled by TruckFaultCodes.com (© 2017) from Detroit Power Service Literature, this 2-page PDF gives technicians the exact troubleshooting order for DTC 3250-14. It is a field reference, not a substitute for the full factory manuals.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD13, DD15, DD16 |
| System / group | DD Series (EPA 2007-Current) — DTCs |
| Diagnostic code | DTC 3250-14, emission level EPA10 |
| Fault name | Abnormal DOC Temperature Rise |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Source | TruckFaultCodes.com, from Detroit Power Service Literature |
| Language | English |
3250 FMI 14 EPA10 fault summary

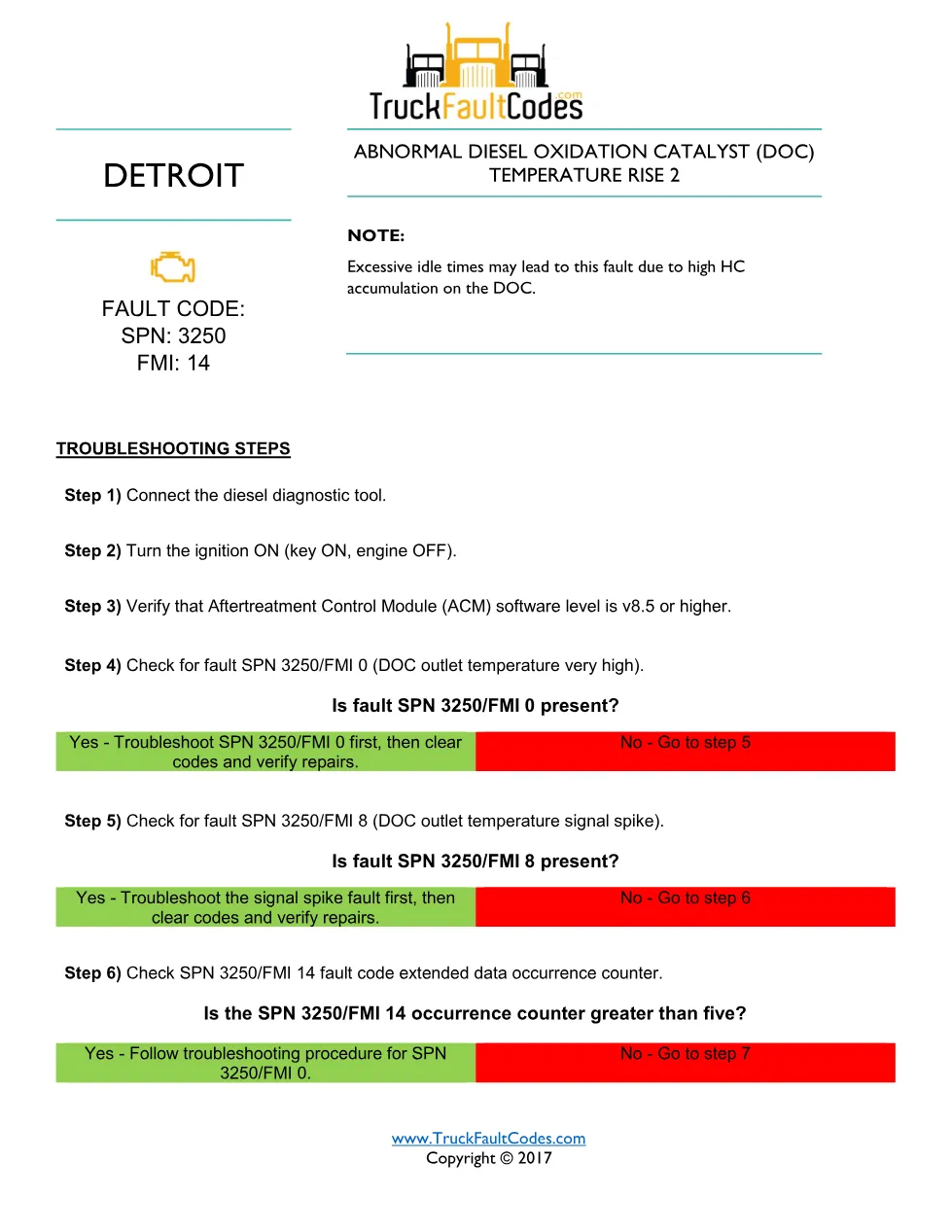

It ties the fault to excessive idle time and hydrocarbon build-up, verifies the ACM software level, screens for related codes and checks the turbocharger inlet for oil before a parked regeneration. Every step is laid out as a Yes/No decision branch, so you can follow the same path a Detroit dealer technician would without guessing.
- Verifying ACM software level (v8.5 or higher)
- Checking for SPN 3250 FMI 0 and FMI 8
- Reading the FMI 14 occurrence counter

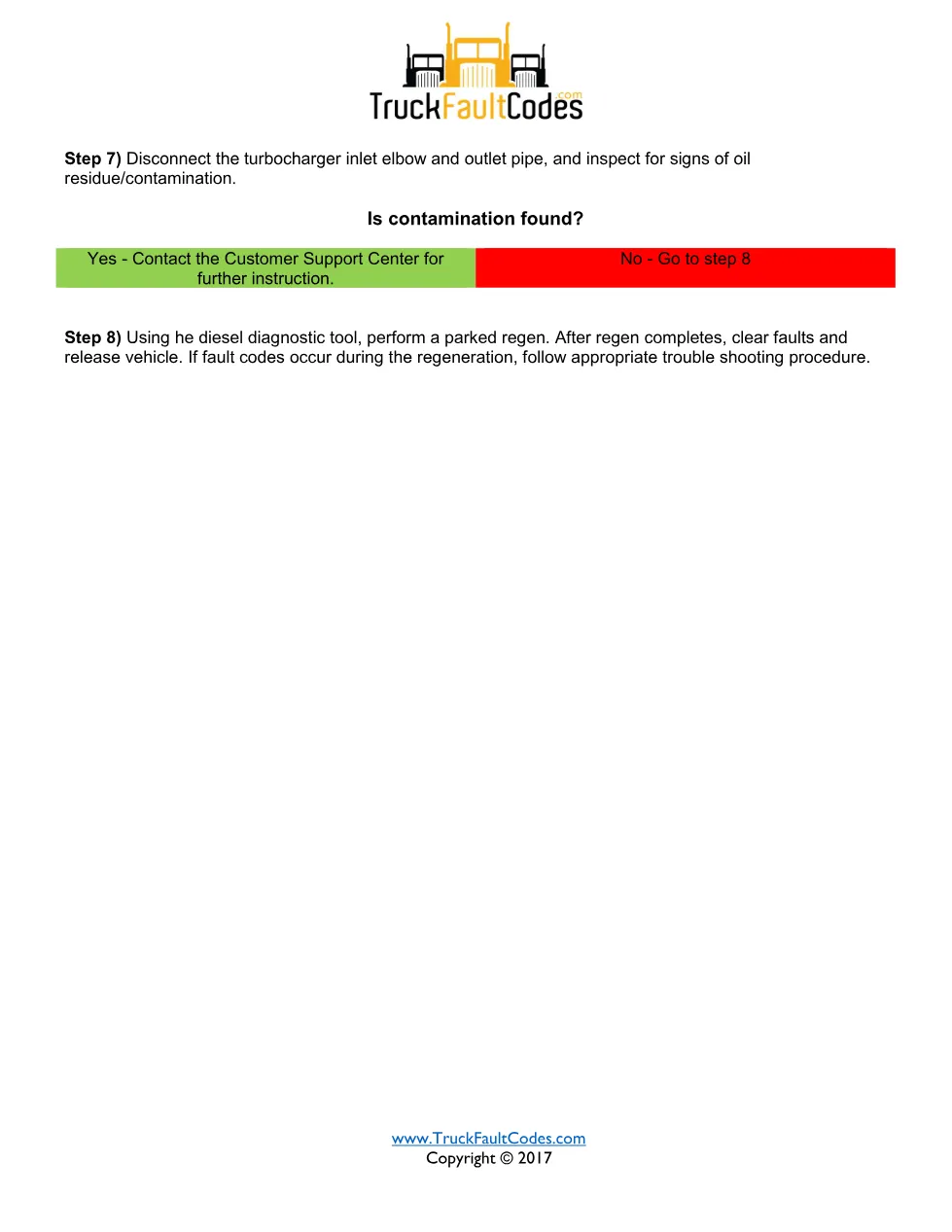

- Inspecting the turbocharger inlet elbow and outlet pipe
- Parked regeneration to clear the code
Applicable truck models and engines
This procedure applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007-Current) family. The EPA10 procedure is built around the Aftertreatment Control Module (ACM2). For engine specifications and dealer support, see the official Detroit engine support site.
Who needs this 3250 FMI 14 EPA10 manual
Fleet technicians, mobile diesel mechanics and DD Series owners diagnosing this code with a diesel diagnostic tool such as DDDL or DDRS will find the exact step order, pin numbers and pass/fail limits they need. Keep it beside the truck during the repair.
The complete 2-page PDF is available in the DiagTechPro manuals library; a free account is required to download it.
